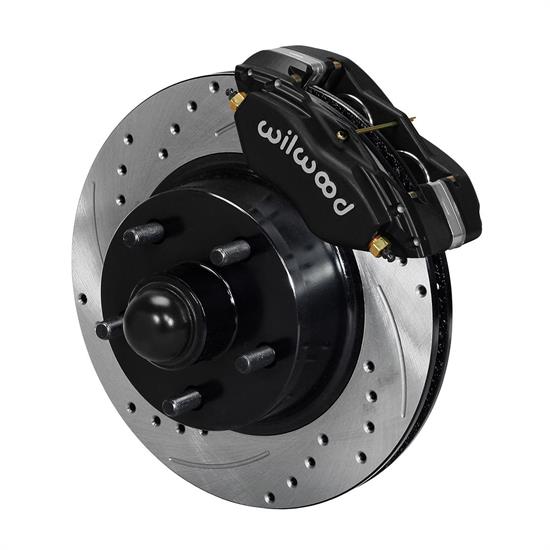

Wilwood 140-13476-D Classic Series Dynalite Front Disc Brake Kit, 11 Inch

$114 Off

#83514013476D

Wilwood 140-13476-D Classic Series Dynalite Front Disc Brake Kit, 11 Inch

Discs have a 11.3" diameter and come pre-drilled with the 5 on 4.5" bolt pattern
Calipers have a total of 4 pistons and are type III anodized for added protection
Engineered to fit the factory disc and drum spindles

Rotor / Caliper Type:

Drilled

$951.69

/each

Factory Shipped

$1,065.89

Save $114.20

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11.29 Inch Rotor Diameter, Anodized

Discs have a 11.3" diameter and come pre-drilled with the 5 on 4.5" bolt pattern
Calipers have a total of 4 pistons and are type III anodized for added protection
Engineered to fit the factory disc and drum spindles
Will clear 14"-up diameter wheels
The drilled and slotted design ensures maximum heat dissipation

See more details

Key Specs

MFG. Part #	140-13476-D
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11.29 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-13476-D Details

Wilwood 140-13476-D Classic Series Dynalite Front Disc Brake Kit, 11 InchWilwoodDisc Brake Kits140-13476-D120-13551

Type: Forged Dynalite-M
Finish: Gray Anodized
Piston Count: 4
Piston Type: Stainless
Mount Type: Lug
Brake Pad Compound: BP-10
Rotor: 160-13483-BK, 160-13482-BK
- Type: 1 Pc Hub and Rotor
- Style: SRP Drilled and Slotted
- Rotor Surface Finish: Black Electro Coated
- Material: Iron
- Diameter: 11.3"
- Width: .94"
- Vane Count: Vented
- Design Type:SRP-BLK

Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.

Vehicle Application:

Fairlane 1966-1969 Disc Brake Spindle
Ford Fairlane 1966-1969 Drum Brake Front Spindle
Ford Falcon 1967-1969 Disc Brake Spindle
Ford Falcon 1965-1966 Disc Brake V-8 Spindle Only
Ford Falcon 1967-1969 Drum Brake Front Spindle
Ford Falcon 1970 Drum Brake Front thru 8/24/69
Ford Falcon 1965-1966 Drum Brake V-8 Spindle Only
Ford Maverick 1970 Drum Brake Front thru 8/24/69
Ford Mustang 1970 Disc Brake GT350 & 500 only
Ford Mustang 1967-1969 Disc Brake Spindle
Ford Mustang 1965-1966 Disc Brake V-8 Spindle Only
Ford Mustang 1967-1969 Drum Brake Front Spindle
Ford Mustang 1965-1966 Drum Brake V-8 Spindle Only
Ford Ranchero 1966-1969 Disc Brake Spindle
Ford Ranchero 1965 Disc Brake V-8 Spindle Only
Ford Ranchero 1966-1969 Drum Brake Front Spindle
Ford Ranchero 1965 Drum Brake V-8 Spindle Only
Ford Torino 1969 Disc Brake Spindle
Ford Torino 1969 Drum Brake Front Spindle Mercury Comet 1967-1969 Disc Brake Spindle
Mercury Comet 1965-1966 Disc Brake V-8 Spindle Only
Mercury Comet 1967-1969 Drum Brake Front Spindle
Mercury Comet 1965-1966 Drum Brake V-8 Spindle Only
Mercury Cougar 1967-1969 Disc Brake Spindle
Mercury Cougar 1967-1969 Drum Brake Front Spindle
Mercury Cyclone 1969 Disc Brake Spindle
Mercury Cyclone 1969 Drum Brake Front Spindle
Mercury Montego 1969 Disc Brake Spindle
Mercury Montego 1969 Drum Brake Front Spindle

Charts

Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514013476D)

Wilwood 140-13476-D Specifications

KEY SPECS
MFG. Part #	140-13476-D
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11.29 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Anodized
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc & Drum Spindles
Front Rotor Included	Yes
Front Rotor Diameter	11.30 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Bolt Pattern	5 on 4.5"
Color	Gray
Front Caliper Piston Quantity	4
Front Caliper Finish	Anodized

GENERAL
GTIN Code	889545020472
Rotor Thickness	0.94"
Mount Type	Lug
OE Hub Offset	0"
Caliper Type	Lug
Rotor Material Type	Iron
Brake Lines Included	Yes
Caliper Color	Gray
Caliper Material Type	Forged Aluminum

Ratings & Reviews

Be the first to write a review.

Questions & Answers

2 Questions • 2 Answers

Sort Questions

Is this kit available in red?

by Julio

• 9 years ago

1 answer

View Answer

Will this kit work with Manuel Brakes? I have a 1966 Mustang Coupe with manuel drum brakes. Will this kit operate correctly with out the use of a power brake booster?

by BigredNick

• 11 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1965-1969 Ford Mustang
