$777.49

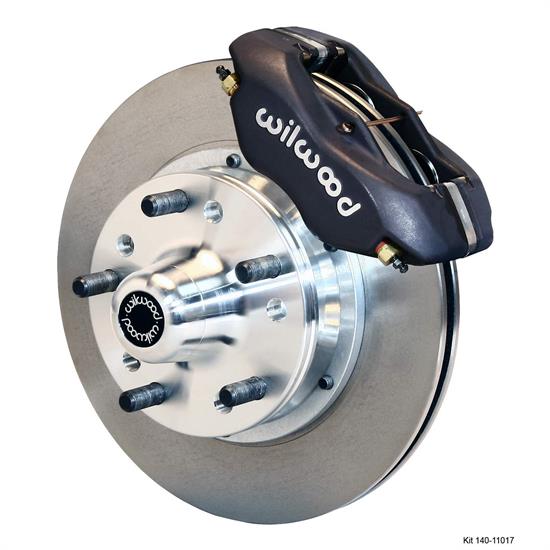

Wilwood 140-11017 FDLI 11 Front Disc Brake Kit, 74-80 Pinto/Mustang II

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type

4 Reviews | 9 Answered Questions

In Stock

Ships FREE

STORE PICKUP

Availability

Select your vehicle to verify fitment.

Select a vehicle to verify fitment.

Select Vehicle

Part # 83514011017

$777.49

each

Call to Order

Add to Buildlist

Click to Login

Compare

Details

Reviews

Q&A

Videos & Articles

Specifically designed for the 1974-1980 Ford Pinto/Mustang II

Details

Position:

Front

Bolt Pattern:

Dual: 5 on 4.5" | 4.75"

Rotor Diameter:

11 Inch

Rotor Type:

Vented

Caliper Pistons:

Four

Caliper Finish:

Powder Coated

Color:

Black

Parking Brake Provision:

MFG. Part #:

140-11017

Minimum Recommended Wheel Diameter:

14 Inch

Rotor Thickness:

.81"

Rotor Shape:

Round

Stud Diameter:

.50"

Thread Pitch:

1/2"-20

Hardware Included:

Yes

Sold in Quantity:

Kit

Notes:

Includes rotors, hubs, bearings and seals, calipers, caliper brackets, hardware, and pads.

Spindle Type:

Factory Disc Spindle

Mount Type:

Lug

Total Piston Area:

4.80 sq. in.

Piston Type:

Stainless

Pad Area:

6.36 sq. in.

Pad Volume:

2.1 cu. in.

Brake Pad Compound:

BP-10

Rotor Style:

Plain Face

Caliper Type:

Forged Dynalite

Rotor Finish:

Natural

Rotor Material Type:

Iron

Vane Count:

30 Straight Vane

Bedded:

Balanced:

Stud Diameter 2:

1/2-20"

GTIN Code:

889545011869

Front Rotor Included:

Yes

Front Rotor Diameter:

11 Inch

Rear Rotor Included:

Front Caliper Included:

Yes

Front Caliper Piston Quantity:

Front Caliper Finish:

Powder Coated Black

Rear Caliper Included:

Front Spindles Included:

Master Cylinder Included:

Brake Booster Included:

Info

Wilwood Forged Dynalite Front Pro Series Brake Kits offer a complete disc brake upgrade solution for Mustang II-equipped street rods and classic pickups. Based on the venerable forged billet 4-piston Dynalite caliper, these versatile kits suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.

Calipers mount directly to the spindle with a bolt-on aluminum bracket. Forged billet, five lug hubs with direct mount cast iron rotors combine to provide a significant weight savings compared to stock disc brakes. Kits include all new hardware, wheel bearings, seals, brake pads, brackets, and extra length lug studs.

Aluminum hubs drilled to accept both 5-on-4-1/2" and 5-on-4-3/4" bolt patterns.

Wilwood Medium Duty Kits Feature:

Forged 4-piston Dynalite Calipers
11" diameter Ultralite HP 30 Vane rotors - bare finish
Wilwood BP-10 SmartPads - low noise, low dust
Lightweight clear anodized aluminum hubs

*NOTE*: See Notes tab for important install information.

Item Details

+.00" Hub Offset (OEM Track Width)

Application

1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All

Notes

If using steel wheels with this kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheelsfrom galling the aluminum hub.
Using this kit on aftermarket dropped spindles will require the drilling and tapping of one 3/8"-16 hole in each spindle for mounting the cliper bracket.
OEM rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

Minimum Wheel Diameter (in): 15"
Rotor - 11" diameter x .81" thick
Wheel Stud Diameter: 1/2"-20
Caliper inlet fitting: 1/8" NPT
Piston count: 4
Piston area (in²): 4.8
Piston type: stainless
Brake Pad Area (in²): 6.36
