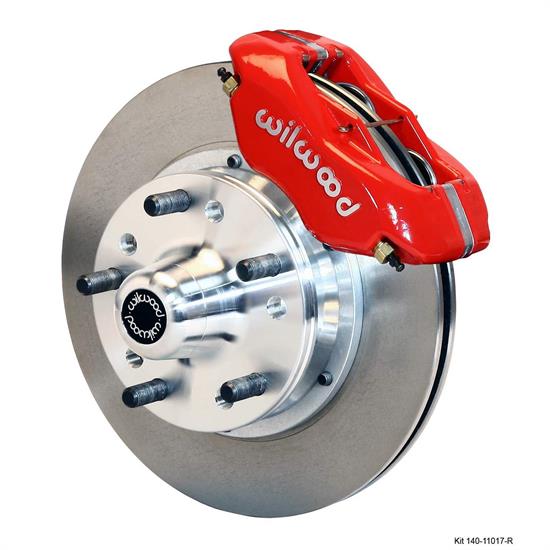

Wilwood 140-11017-R FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II

-7%

#83514011017R

Wilwood 140-11017-R FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II

Name: Wilwood 140-11017-R FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Brand: Wilwood
SKU: 83514011017R
Price: 1094.29 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Undrilled / Red

Undrilled Drilled Drilled / Polished Drilled / Red Undrilled / Polished

$1,094.29

/each

Factory Shipped

$1,184.16

Save $89.87

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11 Inch Rotor Diameter, Powder Coated

See more details

Key Specs

MFG. Part #	140-11017-R
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-11017-R Details

FDLI Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders.

Application

1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514011017R)

Wilwood 140-11017-R Specifications

KEY SPECS
MFG. Part #	140-11017-R
Brand	Wilwood
Position	Front
Wheel Bolt Pattern (in.)	5x4.5 in.
Wheel Bolt Pattern (mm)	5x114.3 mm
Rotor Diameter	11 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Powder Coated
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	14 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Drop & Factory Disc Spindles
Front Rotor Included	Yes
Front Rotor Diameter	11 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	No
Color	Red
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Piston Quantity	4
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545011913
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
OE Hub Offset	0"
Total Piston Area	4.80 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	30 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1974-1978 Ford Mustang II

1974-1980 Ford Pinto

1975-1980 Mercury Bobcat
