Add to Cart
$877.49

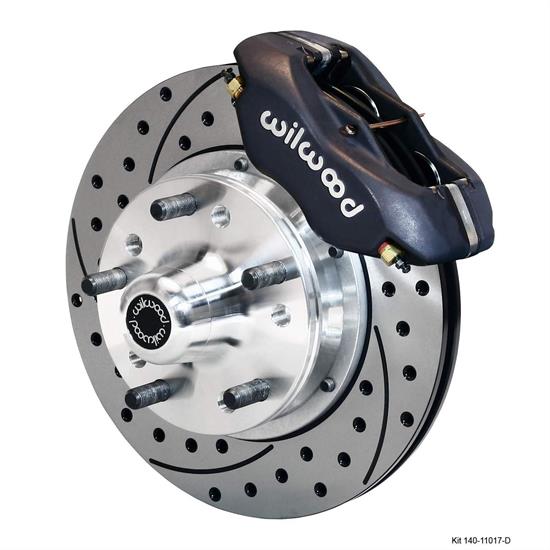

Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II

Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 2 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
X
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-11017-D FDLI Front Disc Brake Kit, 1974-80 Pinto/Mustang II
Zoomed In Image
Part # 83514011017D
$877.49
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Designed to fit the 1974-1980 Ford Pinto/Mustang II
  • Rotors measure 11" in diameter and are made to clear 14"-up wheels
  • Features dual 5x4.5"/5 x4.75" bolt pattern
  • Four piston calipers are powder coated black for added corrosion protection
  • Can be used with either manual or power boost master cylinders

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-11017-D
Minimum Recommended Wheel Diameter:
14 Inch
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Drop & Factory Disc Spindles
Mount Type:
Lug
OE Hub Offset:
0"
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Dynalite
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
30 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545011876
Front Rotor Included:
Yes
Front Rotor Diameter:
11 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front caliper Piston Quantity:
4
Front Caliper Finish:
Powder Coated Black
Rear caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

FDLI Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDLI Pro-Series kits can be used with either manual or power boost master cylinders.

Wheel Clearance Diagram

Application

1974 Ford Mustang II All
1974 Ford Pinto All
1975 Ford Mustang II All
1975 Ford Pinto All
1975 Mercury Bobcat All
1976 Ford Mustang II All
1976 Ford Pinto All
1976 Mercury Bobcat All
1977 Ford Mustang II All
1977 Ford Pinto All
1977 Mercury Bobcat All
1978 Ford Mustang II All
1978 Ford Pinto All
1978 Mercury Bobcat All
1979 Ford Pinto All
1979 Mercury Bobcat All
1980 Ford Pinto All
1980 Mercury Bobcat All

Charts

Installation Instructions (PDF)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
