Speedway Motors Racing Engines CT400 IMCA-Sealed 604 Crate Engine

$275 Shipping

#91019419604

Speedway Motors Racing Engines CT400 IMCA-Sealed 604 Crate Engine

High-revving matched components
A fraction of the price of a custom engine
Sealed with IMCA-issued bolts and is approved for use in IMCA

Level of Dress:

$9,958.04

/each

In Stock

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Deluxe Crate Engine Crate Engine Type, Oil Pan Included

High-revving matched components
A fraction of the price of a custom engine
Sealed with IMCA-issued bolts and is approved for use in IMCA
Popular in Modified and Late Model classes*
400 HP @ 5500 RPM

See more details

Key Specs

Crate Engine Type	Deluxe Crate Engine
Engine Displacement	350 cu. in.
Horsepower	400 horsepower
Compression Ratio	9.72:1
Torque	400 ft./lbs.

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors Racing Engines 19419604 Details

Run up front with the 400-horsepower CT400 crate engine featuring GM Fast Burn heads! GM Performance Parts' Fast Burn cylinder heads are the fast way to the winner's circle – and they're standard on the 350/400 GM racing engine (often referred to as the "604 crate") from GM Performance Parts.

These IMCA-sealed 604 crate engines, formerly sold as Chevrolet Performance 88869604, are based on the popular Fast Burn 385 street crate engine, but include a racing-only 8-quart circle track oil pan with dual kick-out design, along with a valve cover breather kit and special "kool nut" rocker arm design. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers.

The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you'll put a "fast burn" on the competition.

High-revving matched components
A fraction of the price of a custom engine
Sealed with IMCA-issued bolts and is approved for use in IMCA
Popular in Modified and Late Model classes*
400 HP @ 5500 RPM
400 ft. lbs. of torque @ 4500 RPM
4.00" x 3.48" bore x stroke
9.6:1 compression ratio
92 octane recommended fuel
4-bolt main caps
Cam lift: .474" intake / .510" exhaust
Cam duration @ .050": 208° intake / 221° exhaust
112° lobe separation
1.5:1 ratio aluminum roller rocker arms
2.00" Intake / 1.55" Exhaust valves

Includes:

Fully assembled long block
Black steel valve covers w/ breathers
Oil pump, pick-up, 8 quart oil pan
Eliminator Vortec intake manifold
Spark plugs
8" harmonic balancer
Front timing cover
IMCA-approved seal kit

*Check track/series rules for approved applications.

IMCA Approved.

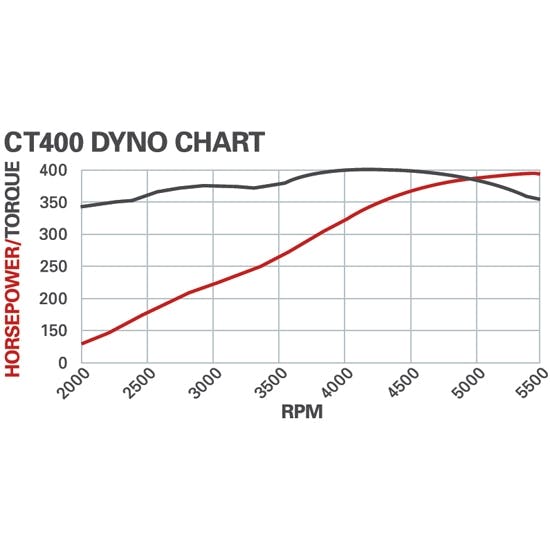

Charts

Warranty Information (PDF)

Spec Sheet (PDF)

Guides & Documents

Crate Engines Installation Instructions (91019419604)

Crate Engines Warranty (91019419604)

Crate Engines Technical Information (91019419604)

Crate Engines Warranty (91019419604)

Increasing Your Lead in Crate Motor Classes (Legally!)

Warranty Information

Click for details

PLEASE NOTE:

Chevrolet/GM Performance's Crate Engine Warranty will not cover engines that fall into the following categories:

Any vehicle that has been used for racing (on or off track), stunt driving, performance testing, or used under other extreme operating conditions
Racing engines and/or components

This engine is sold as a Race Engine and does not carry any warranty.

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Speedway Motors Racing Engines 19419604 Specifications

KEY SPECS
MFG. Part #	19419604
Brand	Speedway Motors Racing Engines
Crate Engine Type	Deluxe Crate Engine
Engine Displacement	350 cu. in.
Horsepower	400 horsepower
Compression Ratio	9.72:1
Torque	400 ft./lbs.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Forged 4340 Steel
Combustion Chamber Volume	62cc
Camshaft Duration (.050 in)	208° intake / 221° exhaust
Camshaft Lift (in)	.474 intake / .510 exhaust
Bore x Stroke (in)	4.000" x 3.480"
Carburetor Included	No
Intake Manifold Included	Yes
Distributor Included	No
Connecting Rod Material	Powdered Metal
Valve Covers Included	Yes
Engine Balance	External
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Oil Pan Included	Yes
Timing Cover Included	Yes
Water Pump Included	No
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	No
Computer Included	No
Wiring Harness Included	No
Spark Plug Style	Angle

GENERAL
Maximum RPM	5,800
Warranty	None
Assembled	Yes
Cylinder Head Style	Assembled
Intake Runner Volume	210cc
Intake Valves Included	Yes
Intake Valve Diameter	2"
Exhaust Valves Included	Yes
Exhaust Valve Diameter	1.55"
Camshaft Included	Yes
Cylinder Heads	Fast Burn with LS-style Beehive Springs
Rocker Arms	Aluminum roller
Rocker Arm Ratio	1.5:1
Block	4 bolt main
Notes	IMCA-sealed for competition
Sold in Quantity	Each
