Product Summary

37-42 Ford, 46-52 Ford, Left and Right Position

  • Spindles are one piece, drop forged design constructed of high strength 4140 steel
  • Superior to original components
  • Uses 1937-1941 king pin kit
  • For Ford axles 1928-1948 passenger car
  • Will not work with 1928-1936 Hubs

Key Specs

MFG. Part #91632111
BrandSpeedway Motors

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

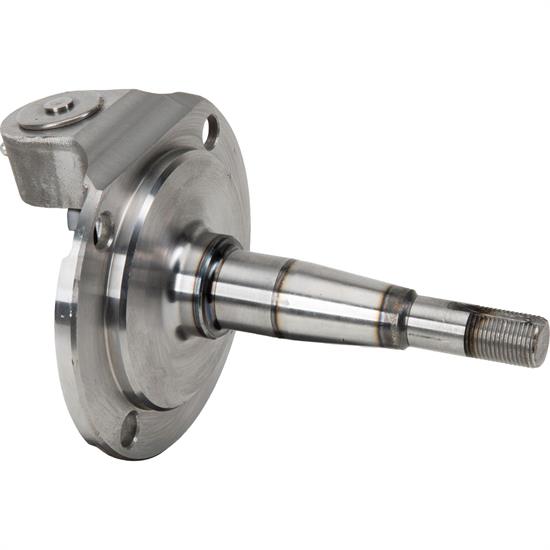

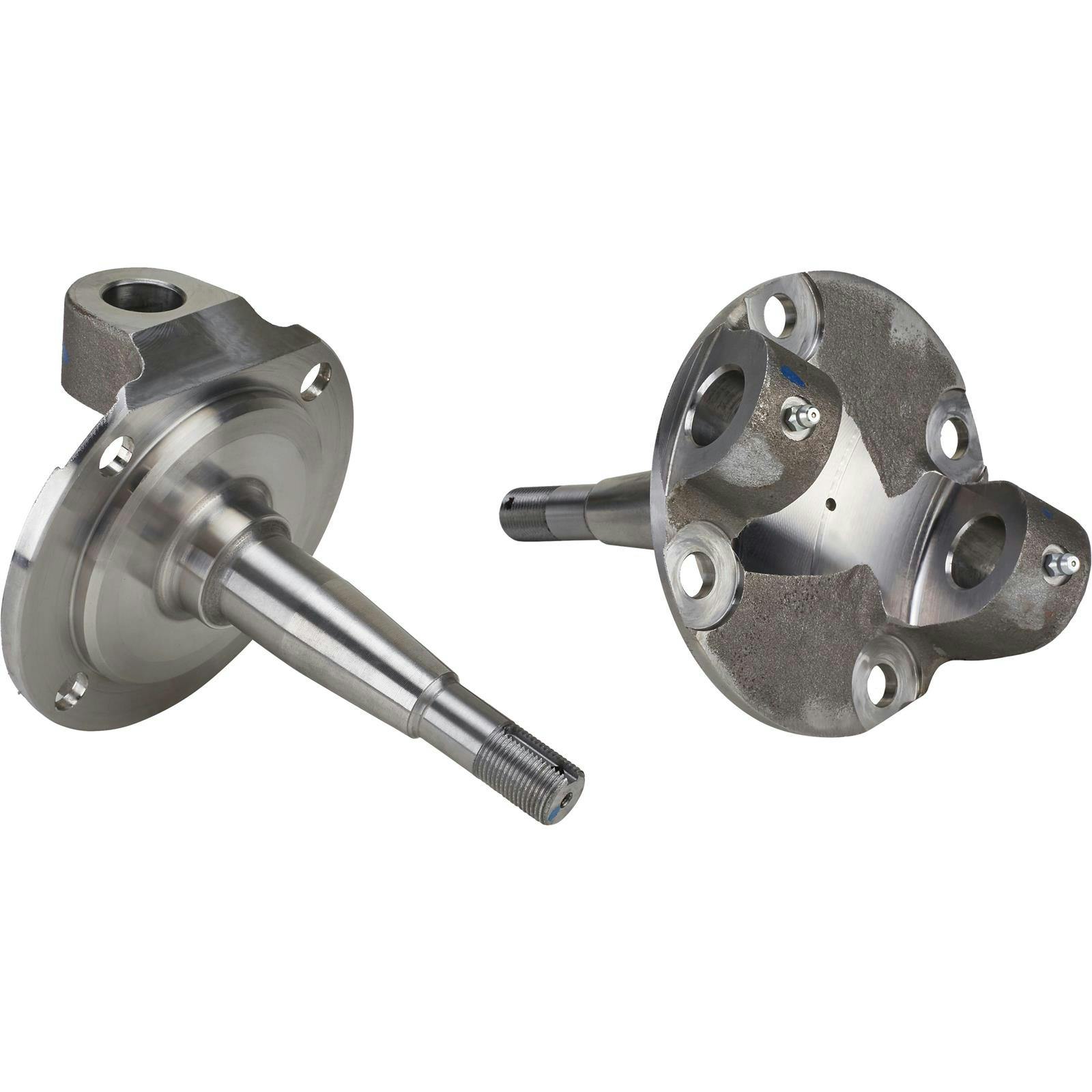

These Speedway spindles are one piece, drop forged design constructed of high strength 4140 steel, which makes them superior to original components. These spindles are modeled after the 37-41 round-back passenger car design and use 37-41 Ford king pins.

These spindles fit Ford axles from 28-48 passenger car. They can be used with period correct drum brakes or modern Speedway Motors disc brakes, but will not work with hubs from 28-36.

This spindle kit has been machined to accept our Bendix Style brake kits.

  • Uses 1937-1941 king pin kit
  • For Ford axles 1928-1948 passenger car
  • Will not work with 1928-1936 Hubs

Be sure to include our spindle nut kit (910-616004) to properly install these spindles.

Application

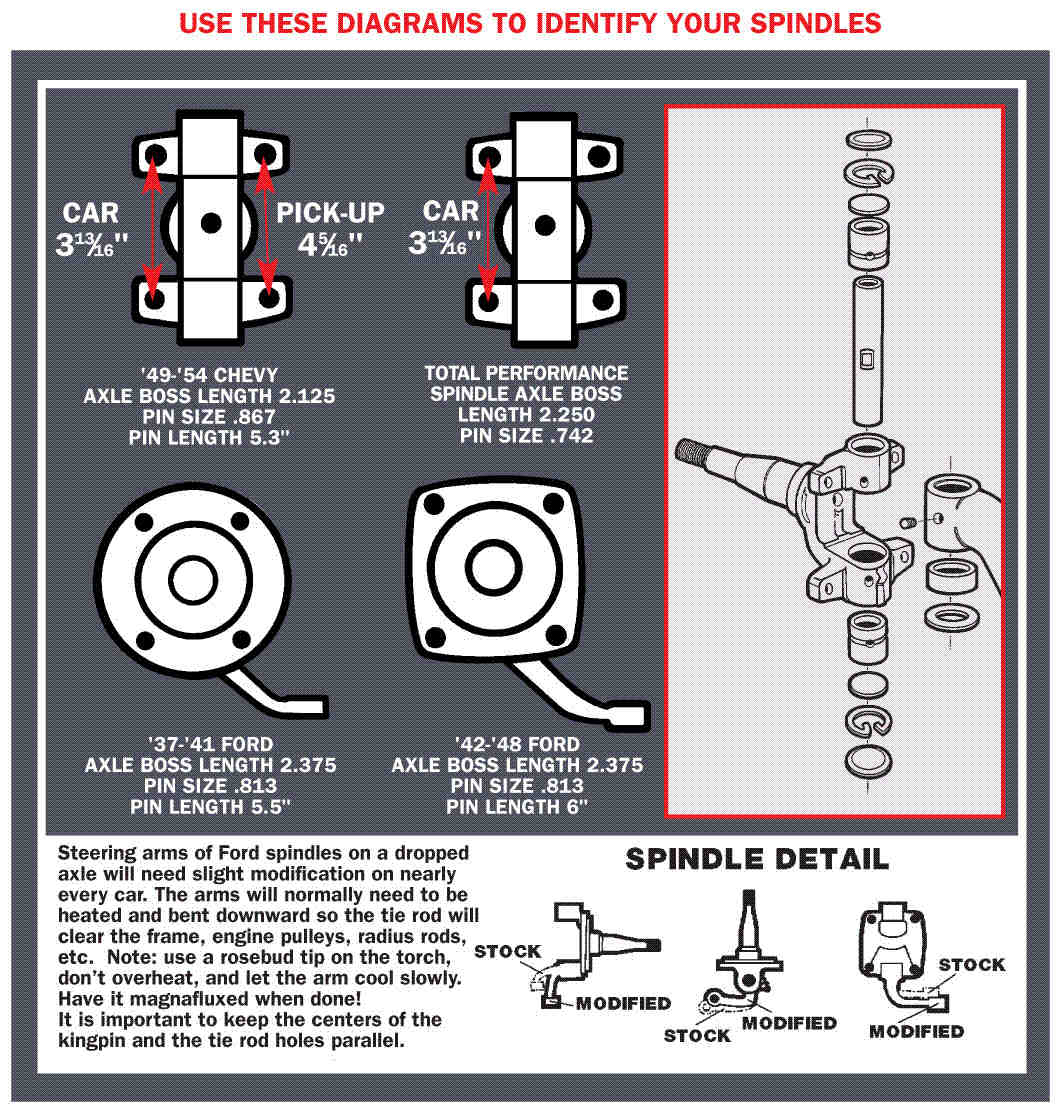

Ford-style spindles are generally your best choice when using an original Ford axle or an aftermarket I-beam axle. This spindle is a reproduction version of the 1937-41 spindle. Ford used the same king pin dimensions and geometry on the 1928-48 axles, therefore you can use any 1937-48 Ford spindle on any 1928-48 car axle.

Charts

Specifications

KEY SPECS
MFG. Part #91632111
BrandSpeedway Motors
GENERAL
PositionLeft and Right
Spindle StyleFord Custom
Spindle DropStock Height
Brake System TypeDisc/Drum
Material TypeForged Steel
Snout MaterialForged Steel
FinishNatural
ColorNatural
King Pin IncludedNo
Inner Bearing Surface O.D.1.189"
Sold in QuantityPair
