Speedway 1928-1948 Ford Forged Spindles w/ Deluxe King Pins
Speedway 1928-1948 Ford Forged Spindles w/ Deluxe King Pins
Speedway Motors

|

#91032110

Speedway 1928-1948 Ford Forged Spindles w/ Deluxe King Pins

  • These spindles are modeled after the 37-41 round-back passenger car design and use 37-41 Ford deluxe roller bearing king pins
  • The one piece drop forged design constructed of high strength 4140 steel makes these spindles far superior to original components
  • Can be used with period correct drum brakes or modern Speedway Motors disc brake kits
See More

Finish:

3) Plain (Deluxe King Pins)

1) Plain (No King Pins)2) Plain (Standard King Pins)4) Milled (No King Pins)5) Milled (Standard King Pins)6) Chrome

$365.99

/kit

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Left and Right Position, Forged Steel

  • These spindles are modeled after the 37-41 round-back passenger car design and use 37-41 Ford deluxe roller bearing king pins
  • The one piece drop forged design constructed of high strength 4140 steel makes these spindles far superior to original components
  • Can be used with period correct drum brakes or modern Speedway Motors disc brake kits
  • Come with King roller bearings installed and fit to the kingpins for a quick and easy bolt on installation
  • A wide variety of steering arms are available that bolt directly to these spindles

Comes as a Kit

View Kit Components

See more details

Key Specs

PositionLeft and Right
Spindle StyleFord Custom
Spindle DropStock Height
Brake System TypeDisc/Drum
Material TypeForged Steel
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91032110 Details

These Speedway spindles are a one piece, forged design constructed of high strength 4140 steel, which makes them superior to original components. These spindles are modeled after the 37-41 round-back design and use 37-41 Ford kingpins. They fit Ford axles from 28-48 and can be used with period correct drum brakes or modern Speedway Motors disc brakes, but will not work with hubs from 28-36.

Deluxe kingpins feature modern needle bearing inserts that replace the standard brass bushings and are ideal for use on heavier street rods that require superior strength, better lubrication and easier steering.

  • Uses 1937-1941 kingpin kit
  • For Ford axles 1928-1948
  • Will not work with 1928-1936 Hubs
  • Includes kingpin kit

Be sure to include our spindle nut kit (910616004) to properly install these spindles.

Item Details

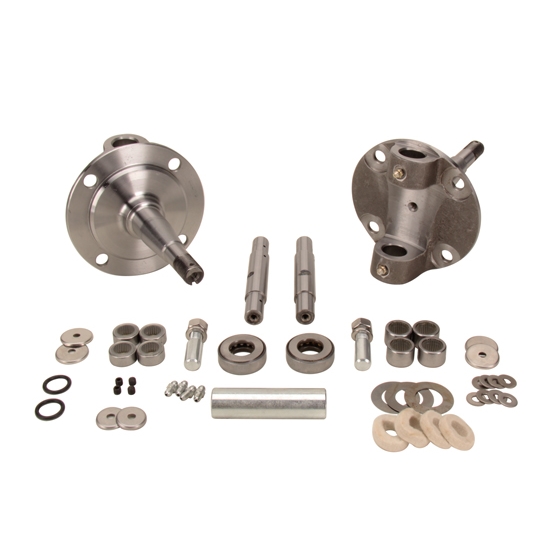

Includes forged spindles with deluxe kingpin kit.

Application

Ford-style spindles are generally your best choice when using an original Ford axle or an aftermarket I-beam axle. This spindle is a reproduction version of the 1937-41 spindle. Ford used the same kingpin dimensions and geometry on the 1928-48 axles, therefore you can use any 1937-48 Ford spindle on any 1928-48 car axle.

Charts

Speedway Motors 91032110 Specifications

KEY SPECS
MFG. Part #91032110
BrandSpeedway Motors
PositionLeft and Right
Spindle StyleFord Custom
Spindle DropStock Height
Brake System TypeDisc/Drum
Material TypeForged Steel
Snout MaterialForged Steel
FinishNatural
ColorNatural
King Pin IncludedYes
Mounting Bolt Center to Center3.38"
GENERAL
Overall Length8.3"
Overall Diameter5.55"
Taper Small End0.75"
Large Bearing I.D.1.189"
King Pin Diameter0.81"
King Pin Length5.5"
Thread Pitch3/4-16
Sold in QuantityPair

Ratings & Reviews

4.4

10 Reviews

Overall Assessment

Customers appreciated the superior quality, unmatched fit, and easy installation process of our product. The product is notable for its quality forging, thorough instructions for kingpin installation, and compatibility with original parts - providing exceptional performance in straight axles and steering components. Some customers suggest improvements in bearings housing design but overall the product outperforms original components. The high-quality finish also won praise, reflecting the product's strength and longevity. Recommendations focused on its advanced features and suitability for different setups, marking the product as a reliable choice over competition.

Write A Review

4.4

10 reviews

5

6

4

2

3

2

2

0

1

0

Most Liked Positive Review

5.0

Nice set with an easy install

Needed to replace the front end and spindles... this kit is great. No issues with fittings or bearings. Easy install on a Super Bell i-beam axle with no shimming!

Most Liked Negative Review

3.0

Mixed feeling

The needle bearing do not stay in the housing which makes it Very hard to insert the kingpins without knocking them out. Some kind of lip in the edge of the housing would help to keep them in. I found that if I put the lower bearing in after the kingpin was almost all the way in it worked a little better then the top bearing afterward. It's still better then the original so can't complain with the end result

Filter by Ratings

I would Buy this Product again when I need it.

5.0

3 years ago

Pooch

Taylorsville Ga

Verified

As Described.

Forged spindles

5.0

4 years ago

Stan

Sacramento

Verified

You can feel the quality

great fit and finish

5.0

8 years ago

ron

chittenango ny

Verified

worked out great on my original 1934 straight axle

Would Recommend

Nice kit

4.0

9 years ago

Ritzy

Braintrere, MA

Verified

Kingpin installation instructions were very thorough and were mostly right on. Only real issue was that instructions said to install the thrust bearing "with the lettered side of the bearing facing up", but there was no lettering, so a quick visit to You Tube indicated that the part of the bearing that rotates should face down. I also needed to drive the narrow lower bushings down further to get the lock notches in kingpins to line up. The other small issue I had was that the threads of the set screws did not match those of the zerk fittings that came out of the Speedway spindles, so I still need to source 4 of those to make this complete. I'm still a ways away from being able to tell how it steers with this kit.

Would Recommend

Customer review image
Customer review image

Spindles and Kin pins

5.0

10 years ago

Flatheadnut0

Kearney, Ne.

Verified

We put it in a 40 pickup and like the way the steering works with a manual box. A friend of ours put it in his and loves it.

Would Recommend

Mixed feeling

3.0

10 years ago

PaPa

Crescent City

Verified

The needle bearing do not stay in the housing which makes it Very hard to insert the kingpins without knocking them out. Some kind of lip in the edge of the housing would help to keep them in. I found that if I put the lower bearing in after the kingpin was almost all the way in it worked a little better then the top bearing afterward. It's still better then the original so can't complain with the end result

Would Recommend

Awsome

3.0

11 years ago

uncleRyno

Ontario, Canada

For the increase in price, the spindle nut kit should be included!

Would Recommend

SWEET.. looks to be high quality

5.0

11 years ago

backwoods

palermo ny

SWEET.. looks to be high quality.. fast shipping. NOT sure if made in USA but they fit as should and came with a nice finish

Would Recommend

Nice set with an easy install

5.0

11 years ago

JonC

Undisclosed

Needed to replace the front end and spindles... this kit is great. No issues with fittings or bearings. Easy install on a Super Bell i-beam axle with no shimming!

Would Recommend

Customer review image

Better than original

4.0

16 years ago

Michael

Germany

I could push the needle bearings through the bearing seat with my finger, instead of using the press in tool, I have had to glue them in place, that was disappointing. The Spindles fit perfect to my Wilwood brake kit and the original I-beam axle!

Showing 10 of 10 reviews

Questions & Answers

7 Questions • 9 Answers

will these fit with front axle #7022860 ?

by mike

• 8 years ago

3 answers

View Answers

I am confused... My car presently has the round back design which you refer to as as the Ford type... However my rotors are GM and my calipers are GM metrics... FYI...my axle is ROUND...unlike most I see...

by sign guy

• 8 years ago

1 answer

View Answer

I am planning to purchase a speedway i beam dropped axle with speedway 28-48 ford spindle kit. This is going on a 32 Ford with a tube axle and FOUR BAR set up. What steering arms do I need to clear the four bar (i.e. tie rod runs between the bars). I want to order all of these items at the same time.

by Danny

• 9 years ago

1 answer

View Answer

What steering arm do i need to use on this spindle mounted to a 4 inch drop i beam with a four bar set up??

by danny

• 9 years ago

1 answer

View Answer

Will these fit into the 1935 Ford Commercial / Truck stock front axles? From what I can tell they are built much heavier than the passenger vehicles. If not, does speedway offer a spindle kit that would work with this factory axle?

by twodaysago

• 9 years ago

1 answer

View Answer

is this part ok to fit with front axe 91639516?

by herve

• 13 years ago

1 answer

View Answer

king pin size !saRASOTA FL

by

• 15 years ago

1 answer

View Answer

7 of 7 questions shown
