Product Summary

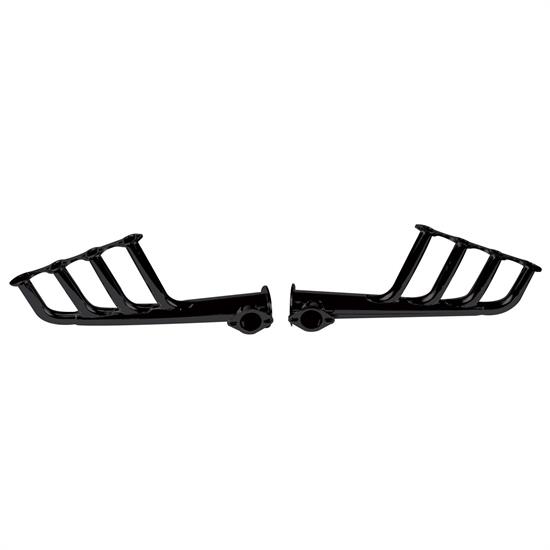

Universal Fit, Lake Style Header Tube Type, Raw, Steel

  • Fits most SBF 289-351W heads as well as GT40 type "P" heads
  • Hookups provided for under-chassis exhaust
  • Block-off plate allows you to easily uncork headers
  • 1-5/8" primary tube diameter
  • 3-1/2" collector cone diameter

Key Specs

Header Tube TypeLake Style
FinishRaw
Flange StyleStandard
Primary Tube Diameter1-5/8"
Material TypeSteel

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 9300575 Details

Nostalgia-style street rods are hotter than ever, and nothing gives your vintage rod that authentic dry lakes competition look like a set of lakester headers. These small-block Ford lake style headers work great on early hoodless and fenderless rods like T-buckets, Model A's, and 1932-1934 Fords. Each lakester header has vertical flanges so you can connect it to a muffled under-car exhaust when the end plate is on.

  • Fits most SBF 289-351W heads as well as GT40 type "P" heads
  • Hookups provided for under-chassis exhaust
  • Block-off plate allows you to easily uncork headers
  • 1-5/8" primary tube diameter
  • 3-1/2" collector cone diameter

NOTE: Turn-outs NOT included. Headers come with end plates, but the turn outs are sold seperately.

Charts

Specs

  • 16-1/4" header flange

Use this illustration with the measurements below: Lake Style Header Diagram (GIF)

  • A = 6-1/2"
  • B = 5"
  • C = 26-3/4"
  • D = 10-1/2"
  • E = 10"
  • F = 11-1/2"



Guides & Documents

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Speedway Motors 9300575 Specifications

KEY SPECS
MFG. Part #9300575
BrandSpeedway Motors
Header Tube TypeLake Style
FinishRaw
Flange StyleStandard
Primary Tube Diameter1-5/8"
Material TypeSteel
ColorNatural
Weld-UpNo
Exhaust Port ShapeOval
Collector Diameter3-1/2 Inch
Hardware IncludedYes
Gasket(s) IncludedYes
Collector Attachment Type2-bolt flange
Collector Reducers IncludedNo
GENERAL
Speedway Motors Catalog Part #930-0575
Tube Length27.5"
Flange Thickness.31"
Port Height1.7"
Port Width1.2"
Header Dimension A7.50 - 16.75
Header Dimension B0"
Header Dimension C27.50"
Drivers Side Dimension A16.7"
Drivers Side Dimension B4.1"
Drivers Side Dimension C27"
Passenger Side Dimension A16.65"
Passenger Side Dimension B4.1"
Passenger Side Dimension C27.5"
Sold in QuantityPair
