Add to Cart
$399.99
Small Block Chevy 1932 Hi-Boy Headers, Chrome
Small Block Chevy 1932 Hi-Boy Headers, Chrome

Small Block Chevy 1932 Hi-Boy Headers, Chrome

Universal Fit, Roadster Header Tube Type, Chrome, Standard Flange Style, Steel, Chrome

7 Reviews | 4 Answered Questions
On Backorder
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Small Block Chevy 1932 Hi-Boy Headers, Chrome
Small Block Chevy 1932 Hi-Boy Headers, Chrome
Small Block Chevy 1932 Hi-Boy Headers, Chrome
Small Block Chevy 1932 Hi-Boy Headers, Chrome
X
Small Block Chevy 1932 Hi-Boy Headers, Chrome
Small Block Chevy 1932 Hi-Boy Headers, Chrome
Zoomed In Image
We estimate this item will ship on or before June 1st.
Part # 930CBR100C
$399.99
pair
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Available in plain steel, chrome plated or AHC coated (outside only)
  • Extensions and mufflers sold separately
  • 1 5/8" primary tube size

Details

Header Tube Type:
Roadster
Finish:
Chrome
Flange Style:
Standard
Primary Tube Diameter:
1-5/8"
Material Type:
Steel
Color:
Chrome
Weld-Up:
No
Exhaust Port Shape:
Oval
MFG. Part #:
930CBR100C
Overall Height:
13.75"
Tube Length:
30.00"
Collector Diameter:
3-1/2 Inch
Collector Length:
9.5"
Flange Thickness:
.35"
Port Height:
1.74"
Port Width:
1.47"
Header Dimension A:
14.75"
Header Dimension B:
13.75"
Header Dimension C:
30.00"
Drivers Side Dimension A:
14.75"
Drivers Side Dimension B:
13.75"
Drivers Side Dimension C:
30.00"
Passenger Side Dimension A:
14.75"
Passenger Side Dimension B:
13.75"
Passenger Side Dimension C:
30.00"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

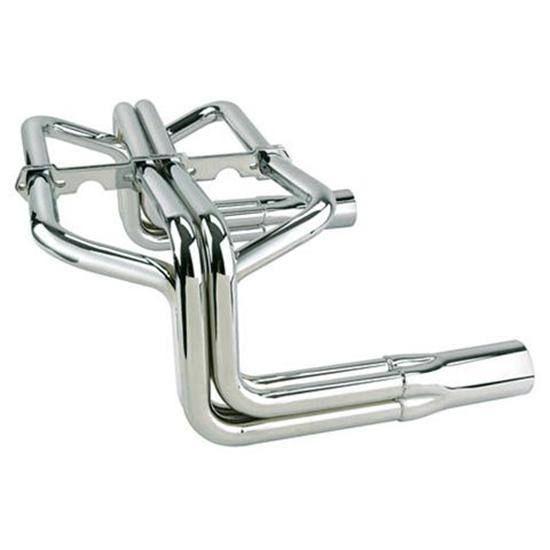

Hood-less and fender-less street rods look great with exposed headers! These small-block Chevy headers are designed to provide extra front tire and door clearance while routing the exhaust outside the frame rail and along the side of the car. They work great on 1932 Ford hi-boys and similar fenderless early street rods.

  • Design allows for maximum tire and door clearance
  • Allows a shorter turning radius than other styles of open-wheeled headers
  • Works with angle-plug, standard port, and Vortec heads (not D-port LT-1 or ZZ4)
  • Extensions and mufflers sold separately

Header Dimensions (GIF)

Chrome Warning: Due to a revised chroming process brought on by recent EPA regulations and high labor costs, todays chrome is not the quality of days gone by. Be Aware: Exhaust components which are chrome plated are now much more susceptible to blueing, blistering, peeling & corrosion. No warranty or returns on chrome exhaust items once them have been installed.

Not legal for sale or use in California on pollution controlled vehicles

Item Details

1-5/8" primary, 3-1/2" collector

Specs


Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
