#91639036-CUSTOM
Custom Length Chevy Universal Straight Axle Kit, Semi Elliptical
- Specially designed for use with Speedway 1949-54 Chevy-style passenger car spindles
- They are professionally engineered and made from plain steel
- Spring pads are adjustable on the axle for different frame widths
$616.99
/kit
Made to Order
$628.96
Save $11.97
This is a custom fabricated part. We estimate this item will ship on or before April 29th.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- Specially designed for use with Speedway 1949-54 Chevy-style passenger car spindles
- They are professionally engineered and made from plain steel
- Spring pads are adjustable on the axle for different frame widths
- Available in several axel widths or even a custom width to suit your project perfectly!
- The tube axles with welded ends have a 0.250" wall
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91639036-CUSTOM |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91639036-CUSTOM Details
Speedway Motors 91639036-CUSTOM Details
If you are looking for that "up in the front" gasser look or just need a straight axle, weve got your deal! We can supply you a complete semi-elliptical straight axle front end kit with springs and hardware. Designed for use with Speedway 1949-54 Chevy-style passenger car spindles.
Plain steel, universal application, professionally engineered. The spring pads are adjustable on the axle for different frame widths (welding required). Choose axle length from kingpin to kingpin, or order a custom length.
Kit includes:
- tube axle w/ welded ends (0.250" wall tubing)
- two axle pads and U-bolts
- two 1-3/4" spring shackles w/ nylon bushings
- two frame mounting brackets
- two 32" six-leaf springs
- all hardware
Item Details
For custom width axle, specify length in comments section of shopping cart at static.
- Not For Off-Road Race Use
Charts
916-3903 Instructions (PDF)
Gasser Build Info (PDF)
Specs
- Spring Arch: 4-3/4"
- Total Leaves: 6 (each 1/4" thick)
- Spring Rate: 400 lbs/inch
- Axle Tube: 2.00" O.D.
Guides & Documents
Speedway Motors 91639036-CUSTOM Specifications
Speedway Motors 91639036-CUSTOM Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91639036-CUSTOM |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | Stock Height |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Natural |
| Bolt Pattern | Not Applicable |
| Rotor Diameter | Not Included |
| Spindle Style | Chevy/GM Custom |
| Dropped Spindles | No |
| Dropped Axle | No |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Semi-Elliptical Gasser |
| Spindles Included | No |
| Brakes Included | No |
| Steering Included | No |
| Welding Required | Yes |
| GENERAL | |
| Straight Axle Style | Tube |
Ratings & Reviews
4.8
4 Reviews
Customers highly recommend the Speedway gasser straight axle kit for its high-quality and heavy duty components. They find the kit complete with every part needed, from nuts and bolts to grease caps. Users have praised its easy installation and excellent workmanship, supporting its practicality. Customers have used it for various model builds including a '63 Corsair and '46 Austin gasser, clearly affirming its versatility. The axle's reasonable pricing is also commended. A minor criticism is that the shackles could be more substantial. Clinical excellence and usability have made this Speedway kit a favored choice for customers building their own gasses.
Ratings & Reviews
4.8
4 Reviews
Customers highly recommend the Speedway gasser straight axle kit for its high-quality and heavy duty components. They find the kit complete with every part needed, from nuts and bolts to grease caps. Users have praised its easy installation and excellent workmanship, supporting its practicality. Customers have used it for various model builds including a '63 Corsair and '46 Austin gasser, clearly affirming its versatility. The axle's reasonable pricing is also commended. A minor criticism is that the shackles could be more substantial. Clinical excellence and usability have made this Speedway kit a favored choice for customers building their own gasses.
4.8
4 reviews
5
3
4
1
3
0
2
0
1
0
Filter by Ratings
I would definitely buy this again.
5.0
5 years ago
Waylon
Austin, Tx
Verified
I put the axle in my 63 Corsair gasser build. All components seem to be heavy duty.
Would Recommend
A really great product, and great suppor
5.0
13 years ago
1946Austin
Oregon, USA

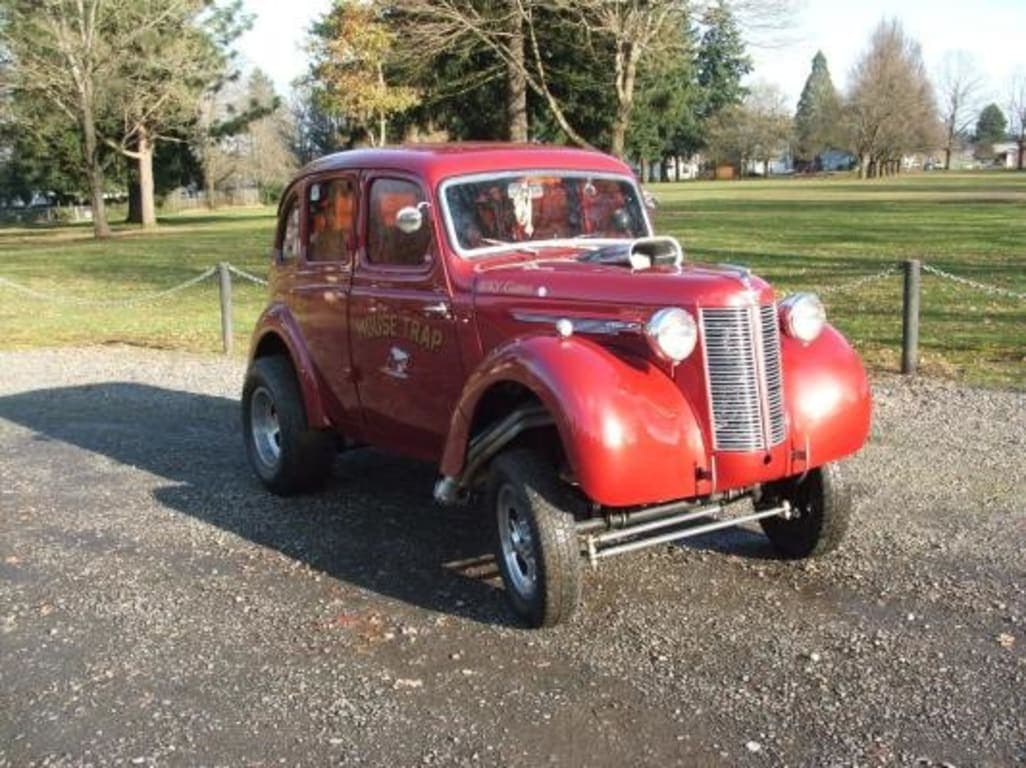

Bought the Speedway gasser straight axle kit for my '46 Austin gasser, and was extremely pleased with the complete kit. I had a couple small bolts that were missing, and even though it was 6 months since I made the initial purchase, Speedway customer service sent me out the parts right away, with no hassles! Just a great product, with great support!
Would Recommend
"Yes you can build your own Gasser"
5.0
15 years ago
Nuwavedave
Victoria, BC Canada
It is a great feeling to have ordered such a complex parts list as the Straight Axle kit for my 51 Pontiac Gasser [...]. I am very impressed with the quality of all the components and ease of installation.Thank You Speedway, you guys awesome.
Would Recommend
Great gasser axle!
4.0
15 years ago
Austin gasser
Portland, Or
Very nice workmanship, and complete right down to every nut, bolt, and grease caps. Very impressive for a reasonable price. Only thing I can say negative is the shackles seemed a tiny bit lighter than I would expect.
Would Recommend
Showing 4 of 4 reviews
