Product Summary

12 volts Voltage

  • Specifically designed for the 1941-1948 Ford flathead V8
  • No points to burn means there are no moving parts to wear out
  • The rotating cobalt magnets trigger a Hall effect integrated circuit
  • The epoxy molding makes our module impervious to dirt, oil, grease and moisture
  • Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life

Key Specs

D-57-22
MFG. Part #1285LS
BrandPerTronix
CARB EO#

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

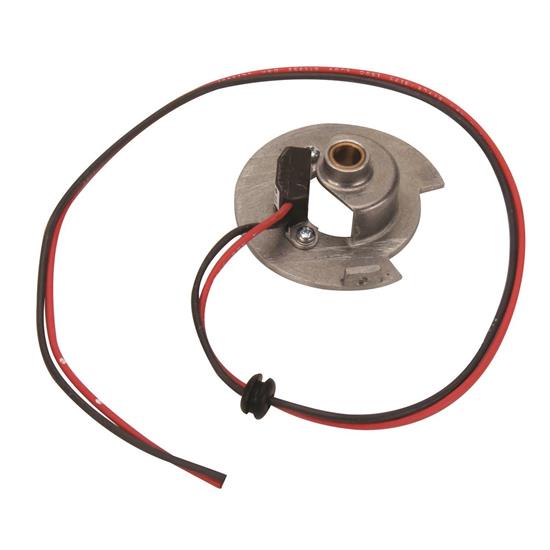

For nearly forty years, the Ignitor has proven itself in applications ranging from race cars to tractors. the Ignitor replaces breaker points and troublesome factory electronic ignitions with a dependable, self contained and maintenance free electronic ignition system. the Ignitor has been called the stealth ignition because of its quick installation and nearly undetectable presence under your distributor cap. there is no black-box to clutter the engine compartment. For optimal performance, use the Ignitor with Flame-thrower 40,000 volt coils.
  • For Ford V8 1942-48 Flathead - 12 volt negative ground
  • Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life.
  • 2:1 improvement over points in current fall time for increased coil output.
  • Rotating cobalt magnets trigger a Hall effect integrated circuit
  • No points to burn, ...no moving parts to wear out.
  • Epoxy molding makes our module impervious to dirt, oil, grease and moisture.
  • Stable timing ...no need for any adjustments.
  • Will trigger most multi-spark cD ignitions.
  • Available for 6 and 12-volt negative and positive ground systems.
  • Legal in all 50 states and Canada. (c.a.r.b. e.o. #D-57-22)
  • Ignitor version available in 6V negative ground, add N6 suffix (# 447-12852)
  • Ignitor version available in 6V positive ground, add P6 suffix (# 447-12856)
  • Ignitor version available in 12V positive ground, add P12 suffix (# 447-12853)



  • Ignitor version available in 6V negative ground, add N6 suffix (# 447-12852)
  • Ignitor version available in 6V positive ground, add P6 suffix (# 447-12856)
  • Ignitor version available in 12V positive ground, add P12 suffix (# 447-12853)



Application

  • 1942-48 Ford Car / 1942-47 Ford Truck Flathead engine V8
  • Fit both single point and dual point distributors,
  • Not for use with solid core spark plug wires
  • 1942-48 Lincoln All models w / Flathead engine V8

Charts

Specifications

D-57-22
KEY SPECS
MFG. Part #1285LS
BrandPerTronix
CARB EO#
GENERAL
GTIN Code694342537654
Voltage12 volts
Sold in QuantityEach
Notes12 V, Negative Ground Application
