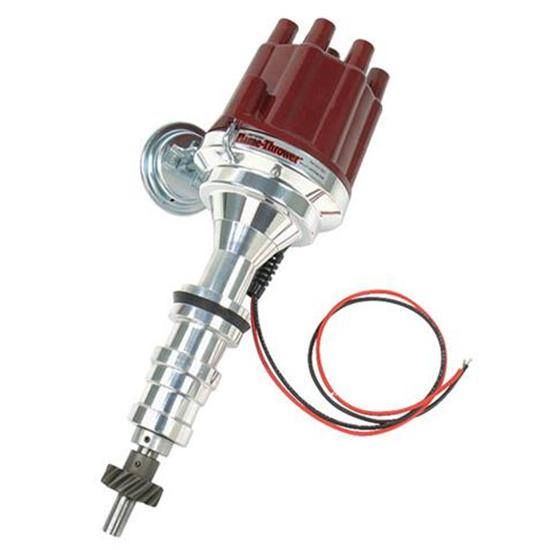

PerTronix D133701 Billet Distributor

The CNC machined 6061-T6 billet aluminum housings offer maximum strength
Has a tempered distributor shaft for accurate timing and extended operational life
An adjustable mechanical advance with proprietary limiting function permits multiple settings

Cap Color:

Advance Type:

Vacuum

Discontinued

This item is currently not available

Shop all Distributors

Product Summary

Socket / Female Cap Type, Magnetic Trigger Style, Red

The CNC machined 6061-T6 billet aluminum housings offer maximum strength
Has a tempered distributor shaft for accurate timing and extended operational life
An adjustable mechanical advance with proprietary limiting function permits multiple settings
Comes with cobalt magnets and a Hall Effect trigger for stable timing and precise spark distribution
The upper ball bearing and extra long oil impregnated bronze lower bushing provide high RPM stability

See more details

Key Specs

D-57-23

MFG. Part #	D133701
Brand	PerTronix
Cap Type	Socket / Female
Advance Type	Mechanical and Vacuum
CARB EO#

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

PerTronix D133701 Details

Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.

For distributor replacement; confirm engine and distributor fitment before ordering.
Precision CNC-machined billet housing provides an accurately constructed distributor body.
Upper ball bearing supports the distributor shaft from idle through high engine speeds.
Steel distributor shaft provides the core of the rotating assembly.
Maintenance-free electronic ignition module eliminates routine breaker-point service.
Electronic ignition is designed to deliver a strong spark and steady ignition timing.

Charts

447-13371 Instructions (PDF)

Pertronix Distributor Cross Reference (PDF)

Guides & Documents

Distributors Installation Instructions (44713371)

Distributors Technical Information (44713371)

Warranty (PerTronix)

Warranty Information

Speedway Motors cannot facilitate the return of defective PerTronix products as they have requested to handle these directly with the consumer. Purchasers of a product who wish to make a warranty claim based upon an alleged product defect should email the

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

PerTronix D133701 Specifications

D-57-23

KEY SPECS
MFG. Part #	D133701
Brand	PerTronix
Cap Type	Socket / Female
Advance Type	Mechanical and Vacuum
CARB EO#

GENERAL
External Ignition Box Required	No
Cap Terminal Style	Socket / Female
Trigger Style	Magnetic
Hall Effect	Yes
Sync Signal	No
Trigger Sensors	Dual
Gear Material	Steel
Gear Rotation	Standard
Distributor Cap Color	Red
Ignition Box Required	No
Mechanical Tach Drive	No
Slip Collar	No
Housing Material	Billet Aluminum
Housing Finish	Machined
Rotor Rotation	Clockwise
Emissions	California EO Approved
Marine Use	No
Sold in Quantity	Each
GTIN Code	694342519674

Ratings & Reviews

Be the first to write a review.

Questions & Answers

3 Questions • 3 Answers

Sort Questions

will my stock coil work with this distributor?

by N/A

• 9 years ago

1 answer

View Answer

I have a 330 ford truck engine, my understanding is that the shaft for the truck engine is slightly larger, but an fe distributor will work with a brass bushing. Are you familiar with this and does speedway have the bushing?

by Alan

• 14 years ago

1 answer

View Answer

I'm looking at this dizzy for a 428 Ford. I'm running a HYD ROLLER camshaft. Does pertronix make the right gear for this?

by Jim

• 15 years ago

1 answer

View Answer

3 of 3 questions shown
