Product Summary

396, 402, 427, 454, Hydraulic Flat Tappet Camshaft Type

    Key Specs

    MFG. Part #K11-213-3
    BrandCOMP Cams

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

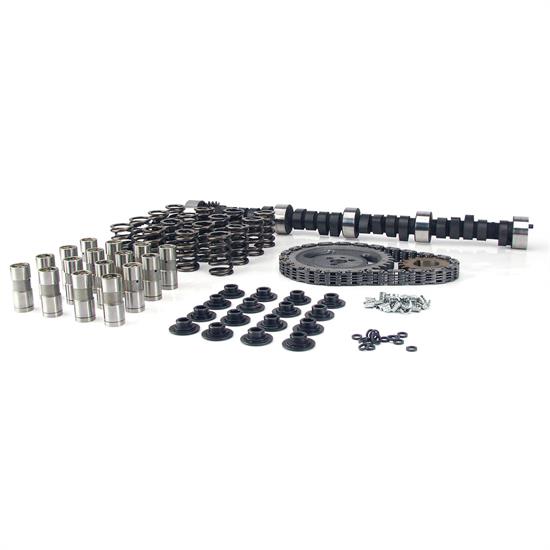

    K11-213-3 - Camshaft Kit, CB 292H.

    Chevrolet 396-454 c.i. 8 CYL. 1965-1996. Hydraulic-Street / Strip applications. 10:1+ compression, 3000 stall or 4 speed. 4.10:1 or lower & aftermarket intake. Very rough idle. All COMP Cams Camshafts are manufactured to the strictest tolerances. Rigorously tested and checked for quality.

    • Great high RPM power
    • Easy on valve train parts
    • Can be used with mild ratio rocker arms & traditional performance valve springs
    • Best with aftermarket converter & 9.5:1+ compression

    Application

    1967-95 Chevy 396-454

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #K11-213-3
    BrandCOMP Cams
    GENERAL
    Camshaft TypeHydraulic Flat Tappet
    Intake Duration292
    Exhaust Duration292
    RPM Range2500 to 6500
    Lobe Separation110 °
    Intake Duration (.050" Lift)244
    Exhaust Duration (.050" Lift)244
    GTIN Code036584460138
    Grind NumberCB 292H-10
    Intake Valve Lift w/ Rocker Arm Ratio0.55"
    Exhaust Valve Lift w/ Rocker Arm Ratio0.55"
    External Ignition Box RequiredNo
    Valve Springs RequiredNo
    Valve Spring IncludedYes
    Lifter TypeHydraulic Flat Tappet
    Lifters IncludedYes
    Retainers IncludedYes
    Locks IncludedYes
    Valve Stem Seals IncludedYes
    Timing Chain and Gears IncludedYes
    Assembly Lubricant IncludedYes
    Pushrods Included
    Rocker Arms IncludedNo
    Gaskets IncludedNo
    Sold in QuantityKit
