#227PSLS3763CTF

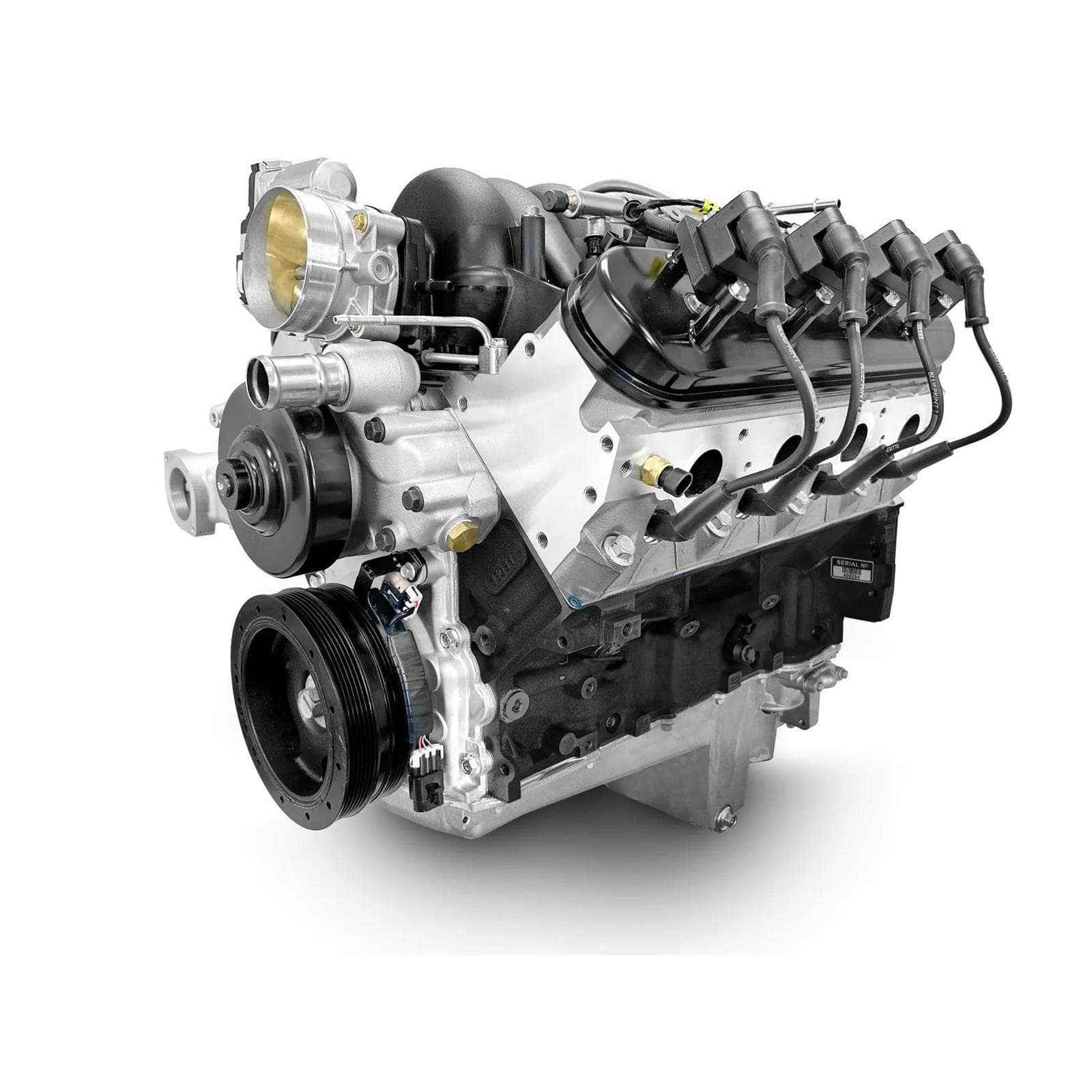

BluePrint PSLS3763CTF GM/LS Compatible 376 c.i. ProSeries Engine
- 530 Horsepower / 495 FT LBS
- 10.7:1 Compression Ratio
- Aluminum Heads
$12,199.00
/each
In Stock
Order soon, only 1 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
376 cu. in. Engine Displacement, 495 ft./lbs. Torque
- 530 Horsepower / 495 FT LBS
- 10.7:1 Compression Ratio
- Aluminum Heads
- Hydraulic Roller Cam
- Nodular Iron Crankshaft
Key Specs
| Engine Displacement | 376 cu. in. |
| Horsepower | 530 horsepower |
| Compression Ratio | 10.7:1 |
| Torque | 495 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines PSLS3763CTF Details
BluePrint Engines PSLS3763CTF Details

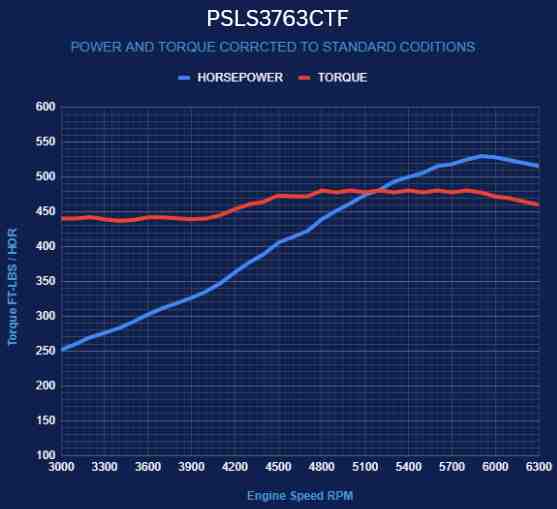

BluePrint Engines provides a Dyno Promise with results and bragging rights. They make sure they hit their target horsepower and proper torque with every crate engine, utilizing an advanced computerized balancer to get rotating assemblies within 2 grams, ensuring silky smooth power over the entire rpm range. According to BluePrint, that's precisely why their engines sound and run better than the competitors. Accompanying your BluePrint Engines Pro Series Chevy LS 376 c.i.d. 530 hp EFI base dressed long block crate engine will be a comprehensive, dyno-generated printout showing its critical specs. No more guessing what the real-world peak horsepower and torque ratings are. Any doubters in the crowd? Simply flash them your dyno results! These long block engines are available with or without complete engine controller with ECU, harness, throttle pedal, and sensors.
- 530 Horsepower / 495 FT LBS
- 10.7:1 Compression Ratio
- Aluminum Heads
- Hydraulic Roller Cam
- Nodular Iron Crankshaft
- Hypereutectic Pistons
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
BluePrint Engines PSLS3763CTF Specifications
BluePrint Engines PSLS3763CTF Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | PSLS3763CTF |
| Brand | BluePrint Engines |
| Engine Displacement | 376 cu. in. |
| Horsepower | 530 horsepower |
| Compression Ratio | 10.7:1 |
| Torque | 495 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Nodular Iron |
| Combustion Chamber Volume | 69cc |
| Camshaft Duration (.050 in) | 225° intake / 238° exhaust |
| Camshaft Lift (in) | .612 intake / .585 exhaust |
| Bore x Stroke (in) | 4.065 x 3.622 (103.25 x 92mm) |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| GTIN Code | 00887753979506 |
| Sold in Quantity | Each |
| Supercharger Included | No |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
2009-2014 Cadillac CTS
GM LSA
2012 Cadillac Escalade
6.2 Chevy LS V8
2013 Cadillac Escalade
GM L9H
2014 Cadillac Escalade
GM L94
2007-2012 Cadillac Escalade ESV
6.2 Chevy LS V8
2013 Cadillac Escalade ESV
GM L9H
2014 Cadillac Escalade ESV
GM L94
2007-2012 Cadillac Escalade EXT
6.2 Chevy LS V8
2013 Cadillac Escalade EXT
GM L9H
2010-2014 Chevy Camaro
GM LS3
2008-2013 Chevy Corvette
GM LS3
2014-2017 Chevy SS
GM LS3
2008 Chevy Tahoe
6.2 Chevy LS V8
GM L9H
2009 Chevy Tahoe
GM L9H
2006-2014 GMC Savana 1500
GM L94
2006-2013 GMC Savana 2500
GM L94
2006-2013 GMC Savana 3500
GM L94
1999-2011 GMC Sierra 1500
GM L9H
2008-2013 GMC Yukon
GM L94
2008-2009 Hummer H2
6.2 Chevy LS V8
2009 Pontiac G8
GM LS3
