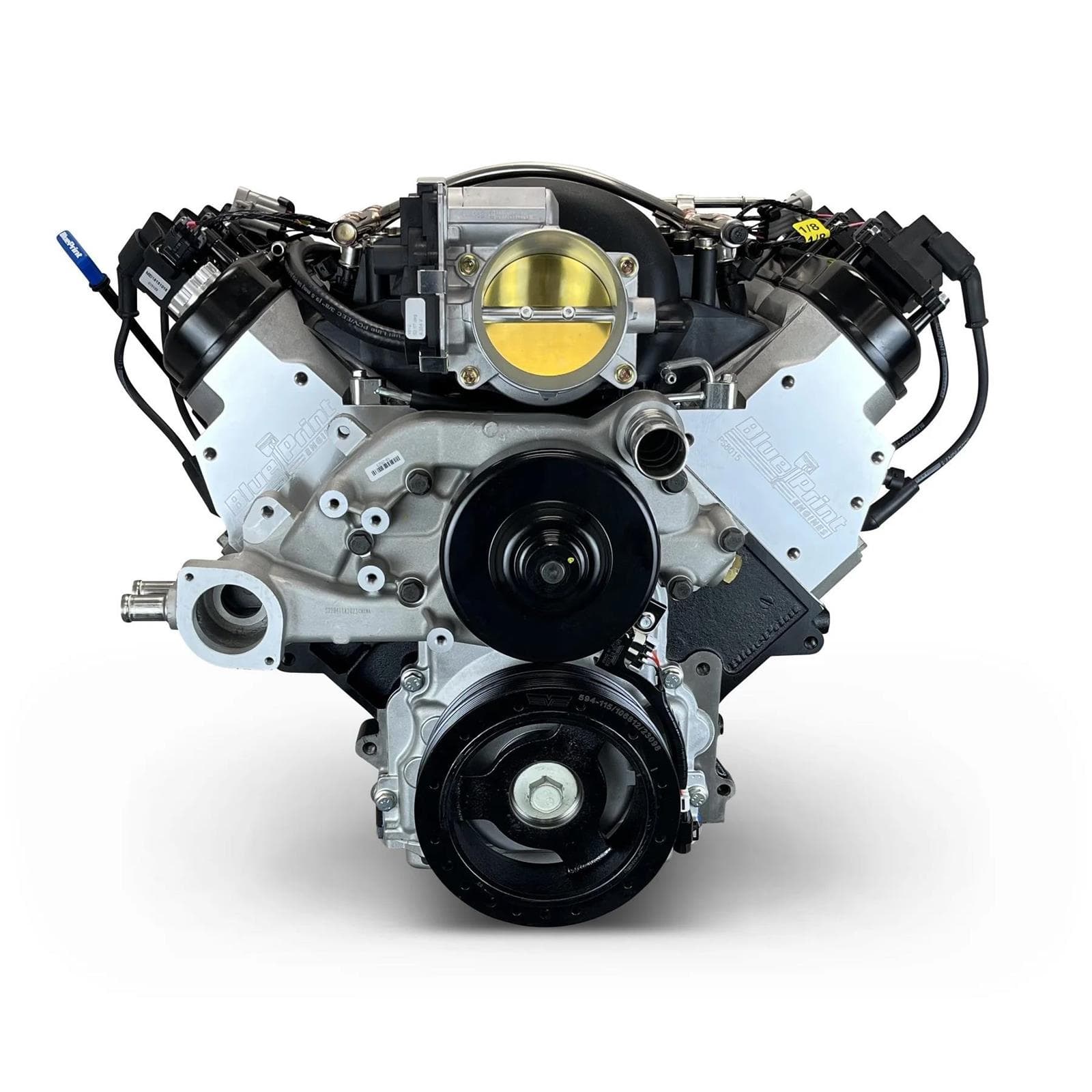

BluePrint PSLS37630CTF Chevy 376 CID LS Crate Engine

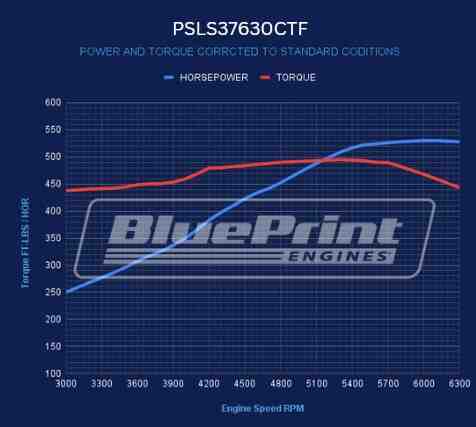

- Horsepower & Torque: 530 Horsepower / 495 FT. LBS. Torque
- BluePrint Engines LS3 Aluminum Cylinder Heads
- Compression Ratio: 10.7:1
$10,499.00
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Product Summary
Long Block Crate Engine Type, 530 horsepower Horsepower
- Horsepower & Torque: 530 Horsepower / 495 FT. LBS. Torque
- BluePrint Engines LS3 Aluminum Cylinder Heads
- Compression Ratio: 10.7:1
- Nodular Iron Crank - 3.622" Stroke and Forged 6.125" Rods
- Hypereutectic Pistons
Key Specs
| Crate Engine Type | Long Block |
| Engine Displacement | 376 cu. in. |
| Horsepower | 530 horsepower |
| Compression Ratio | 10.7:1 |
| Torque | 495 ft./lbs. |
Need To Know
Truck Shipment
Truck shipments must be pre-paid with a credit card, certified check or money order
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBluePrint Engines PSLS37630CTF Details
BluePrint Engines PSLS37630CTF Details
- Horsepower & Torque: 530 Horsepower / 495 FT LBS
- Compression Ratio: 10.7:1
- Aluminum Heads
- Hydraulic Roller Cam
- Nodular Iron Crankshaft
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron 6.2L Block
- Increased Deck Thickness and Strength Webbing
- Extended Cylinder Skirt
- Priority Main Oiling
- 4.0662" Bore
- 6-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Utilizes OEM LS3 Front and Rear Covers.
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622" Stroke
- 6.125" Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8015
- 69cc Chamber
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Cam Type: Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @.050-113 Degree Lobe Separation
Also Includes:
- LS Swap Oil Pan
- DBW Throttle Body
- GM Plastic Intake Manifold
- Fuel Injectors and Rail
- Coil Packs
- Spark Plugs and Wires
- Water Pump
- Harmonic Balancer
Notes:
- Engine is not shipped with Engine controller kit. Must purchase separately for your application.
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.
We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
BluePrint Engines PSLS37630CTF Specifications
BluePrint Engines PSLS37630CTF Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | PSLS37630CTF |
| Brand | BluePrint Engines |
| Crate Engine Type | Long Block |
| Engine Displacement | 376 cu. in. |
| Horsepower | 530 horsepower |
| Compression Ratio | 10.7:1 |
| Torque | 495 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Nodular Iron |
| Camshaft Duration (.050 in) | 225° intake / 238° exhaust |
| Camshaft Lift (in) | .612 intake / .585 exhaust |
| Bore x Stroke (in) | 4.060" x 3.620" |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | Internal |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| GTIN Code | 00887753979490 |
