Ships FREE!

BluePrint PS6320CTC Chevy 632 Pro Series, Dressed Engine, Alum Heads

Ships FREE!

#227PS6320CTC

BluePrint PS6320CTC Chevy 632 Pro Series, Dressed Engine, Alum Heads

Name: BluePrint PS6320CTC Chevy 632 Pro Series, Dressed Engine, Alum Heads
Brand: BluePrint Engines
SKU: 227PS6320CTC
Price: 17699 USD
Availability: InStock

Write a Review

7 Questions

Level Of Dress:

#2 Base Dressed - Carbureted

#1 Long Block#3 Base Dressed - EFI

$17,699.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Long Block Crate Engine Type, 10.8:1 Compression Ratio

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	10.8:1
Engine Displacement	632 cu. in.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines PS6320CTC Details

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

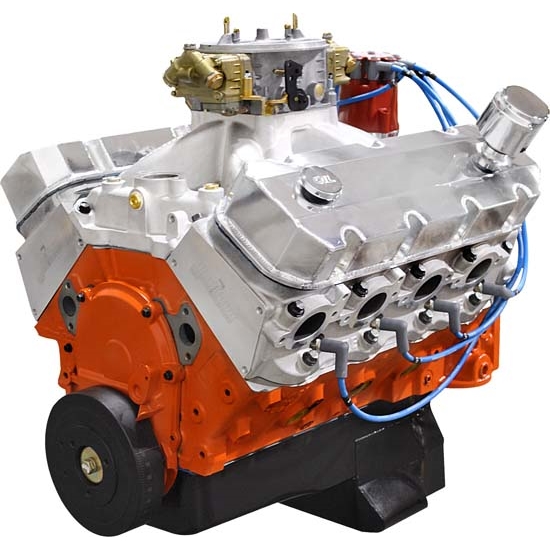

Chevy 632 Pro Series - Dressed Engine - Aluminum Heads - Roller Cam

Overview

HP & Torque: 815 HP / 800 FT LBS
Compression Ratio: 10.0:1
Aluminum Heads
Forged Pistons
Roller Cam
Forged Crank
Part #: PS6320CTC

Block

BluePrint Engines new block casting - tall deck
4 bolt main
4.600" bore

Rotating Assembly

Forged crank
4.750" stroke
Forged rods
Forged pistons
Hydraulic roller cam

Cylinder Heads

Aluminum, 119cc chamber
Comp cam pushrods
Comp cam rocker arms
Melling oil pump

Cam Specs

Cam Type: Roller
.647 Intake .647 Exhaust
258 Intake / 266 Exhaust duration
@ .050 - 112 degree lobe separation

Also Includes

1050cfm Holley carb
Aluminum, single plane intake manifold
MSD Pro Billet distributor
Valve covers, oil pan and timing cover
Spark plugs
MSD spark plug wires
Harmonic balancer
Dyno test results shipped with engine

Warranty

30 month / 50,000 mile

Notes

Not for use in pollution controlled vehicles.

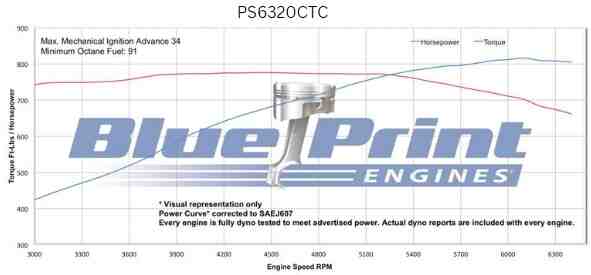

Charts

Warranty Information (PDF)

Guides & Documents

Crate Engines Warranty (227PS6320CTC)

Crate Engines Installation Instructions (227PS6320CTC)

Crate Engines Technical Information (227PS6320CTC)

Warranty Information

Warranty Information (PDF)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

BluePrint Engines PS6320CTC Specifications

KEY SPECS
MFG. Part #	PS6320CTC
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	10.8:1
Engine Displacement	632 cu. in.
Camshaft Type	Hydraulic Roller Tappet
Cylinder Head Material	Aluminum
Piston Material	Forged Aluminum
Crankshaft Material	Forged Steel
Carburetor Included	Yes
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	No
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	No
Wiring Harness Included	No

GENERAL
Torque	800 ft./lbs.
Horsepower	815 horsepower
Camshaft Duration (.050 in)	272° intake / 282° exhaust
Camshaft Lift (in)	.698 intake / .698 exhaust
Bore x Stroke (in)	4.600" x 4.750"
Warranty	30 month / 50,000 miles
Assembled	Yes
Camshaft Included	Yes
Block	4 bolt main
Notes	New BluePrint block manufactured and machined in the USA. Recommended oil for your BluePrint Crate Engine: 10W30, Non-Synthetic, Not for EGR
