Ships FREE!

BluePrint BP454CTFKB 454 Cruiser Crate Engine, Injection, Black

Ships FREE!

#227BP454CTFKB

BluePrint BP454CTFKB 454 Cruiser Crate Engine, Injection, Black

BluePrint Engines Big Block Chevy 454 Cruiser Crate Engine
Dressed Longblock With Fuel Injection
HP And Torque: 460 HP / 479 FT LBS

Level Of Dress:

#4 Deluxe Dressed - EFI - Black Pulley Kit

#1 Long Block #2 Base Dressed - Carbureted #3 Deluxe Dressed - Carbureted - Polished Pulley Kit #3 Deluxe Dressed - Carbureted - Black Pulley Kit #2 Based Dressed - EFI #4 Deluxe Dressed - EFI - Polished Pulley Kit

$13,799.00

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Deluxe Crate Engine Crate Engine Type, Oil Pan Included

BluePrint Engines Big Block Chevy 454 Cruiser Crate Engine
Dressed Longblock With Fuel Injection
HP And Torque: 460 HP / 479 FT LBS
Black Complete Front Accessory Drive System With A/C, Power Steering, Water Pump, Belts and Pulleys Installed
Compression Ratio: 9.85:1

See more details

Key Specs

Crate Engine Type	Deluxe Crate Engine
Compression Ratio	9.8:1
Engine Displacement	454 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP454CTFKB Details

BluePrint Engines Big Block Chevy 454 Cruiser Crate Engine
Dressed Longblock With Fuel Injection
HP And Torque: 460 HP / 479 FT LBS
Black Complete Front Accessory Drive System With A/C, Power Steering, Water Pump, Belts and Pulleys Installed
Compression Ratio: 9.85:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Hypereutectic Pistons

BLOCK:
NEW BluePrint Cast Iron Block, 454 BBC
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Stroke, 4.250" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Standard Deck

ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
4.000" Stroke 4.250" Bore
OEM type 6.135" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - PS8013
119cc chamber
2.30" intake/1.88" exhaust valves
316cc intake/124cc exhaust runners
Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
Must verify header/exhaust clearance

CAM SPECS:
Cam Type: Roller
.501 Intake .510 Exhaust
216 Intake / 228 Exhaust duration
@ .050 - 112 degree lobe separation

IGNITION TIMING:
Initial timing - 10-16° and Total timing 32-34°

ALSO INCLUDES:
Intake Manifold single plane, satin aluminum
Sniper EFI System
Pro Billet Distributor
Harmonic balancer
Valve covers, oil pan and timing cover
Installed black complete front accessory drive system with A/C, P/S, WP, all belts and pulleys.

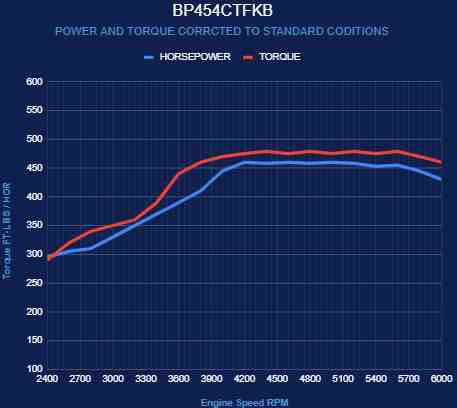

Dyno test results shipped with engine

WARRANTY:
30 month / 50,000 mile

Guides & Documents

Crate Engines Installation Instructions (227BP454CTFKB)

Crate Engines Technical Information (227BP454CTFKB)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

BluePrint Engines BP454CTFKB Specifications

KEY SPECS
MFG. Part #	BP454CTFKB
Brand	BluePrint Engines
Crate Engine Type	Deluxe Crate Engine
Compression Ratio	9.8:1
Engine Displacement	454 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Forged
Carburetor Included	No
Intake Manifold Included	Yes
Distributor Included	No
Valve Covers Included	Yes
Cylinder Heads Included	Yes
Throttle Body Included	Yes
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	Yes
Wiring Harness Included	No

GENERAL
Combustion Chamber Volume	119cc
