BluePrint BP454CT B/B Chevy 454 Cruiser Crate Engine, Longblock

Ships FREE!

#227BP454CT

BluePrint BP454CT B/B Chevy 454 Cruiser Crate Engine, Longblock

Name: BluePrint BP454CT B/B Chevy 454 Cruiser Crate Engine, Longblock
Brand: BluePrint Engines
SKU: 227BP454CT
Price: 9699 USD
Availability: InStock

Write a Review

Ask a Question

Level Of Dress:

#1 Long Block

#2 Base Dressed - Carbureted #3 Deluxe Dressed - Carbureted - Polished Pulley Kit #3 Deluxe Dressed - Carbureted - Black Pulley Kit #2 Based Dressed - EFI #4 Deluxe Dressed - EFI - Polished Pulley Kit #4 Deluxe Dressed - EFI - Black Pulley Kit

$9,699.00

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Long Block Crate Engine Type, 10.48:1 Compression Ratio

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	10.48:1
Engine Displacement	7.4 liters
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP454CT Details

BluePrint Engines Big Block Chevy 454 Cruiser Crate Engine Longblock

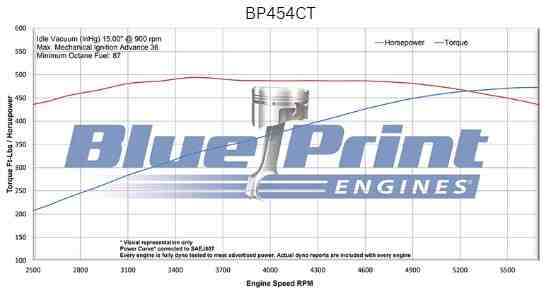

HP And Torque: 460 HP / 479 FT LBS
Compression ratio: 9.85:1
Aluminum heads
Hydraulic roller cam
Forged crank
Hypereutectic pistons

BLOCK:

NEW BluePrint Cast Iron Block, 454 BBC
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Stroke, Bored .060" over
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Standard Deck

ROTATING ASSEMBLY:

New BluePrint Forged Crankshaft
4.000" Stroke 4.250" Bore
OEM type 6.135" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External

CYLINDER HEADS:

BluePrint Aluminum Cylinder Heads - PS8013
119cc chamber
2.30" intake/1.88" exhaust valves
316cc intake/124cc exhaust runners
Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting
Must verify header/exhaust clearance

CAM SPECS:

Roller cam
.501 Intake .510 Exhaust
216 Intake / 228 Exhaust duration
@ .050 - 112 degree lobe separation

IGNITION TIMING:

10-16° and total timing 32-36° at 3500 rpm

ALSO INCLUDES:

Valve covers, oil pan and timing cover
Dyno test results shipped with engine

WARRANTY:

30 month / 50,000 mile

This engine is an excellent cruiser and daily driver engine. This engine makes up to 15 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel. Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flexplate 399973.

Guides & Documents

Crate Engines Installation Instructions (227BP454CT)

Crate Engines Technical Information (227BP454CT)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

BluePrint Engines BP454CT Specifications

KEY SPECS
MFG. Part #	BP454CT
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	10.48:1
Engine Displacement	7.4 liters
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Hypereutectic Aluminum
Crankshaft Material	Forged Steel
Carburetor Included	No
Intake Manifold Included	Yes
Distributor Included	No
Connecting Rod Material	Steel
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	Yes
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	Yes
Spark Plug Wires Included	Yes
Computer Included	Yes
Wiring Harness Included	Yes

GENERAL
Torque	480 ft./lbs.
Horsepower	460 horsepower
Combustion Chamber Volume	119cc
Camshaft Duration (.050 in)	219° intake / 228° exhaust
Camshaft Lift (in)	.488 intake / .510 exhaust
Bore x Stroke (in)	4.060" x 3.620"
GTIN Code	887753802835
Sold in Quantity	Each
