BluePrint BP4002CTC1DK 400 GM Crate Engine, Deluxe Dressed, Carb

Ships FREE!

#227BP4002CTCIDK

BluePrint BP4002CTC1DK 400 GM Crate Engine, Deluxe Dressed, Carb

BluePrint Engines Small Block GM 400 CI Crate Engine
Carbureted Deluxe Dressed Longblock with Aluminum Heads and Pulleys
This GM 400 c.i. engine puts out 500 horsepower and 510 ft lb. of torque

Level Of Dress:

#3 Deluxe Dressed - Carbureted - Black Pulley Kit

#1 Long Block #2 Base Dressed - Carbureted#3 Deluxe Dressed - Carbureted

$11,199.00

/each

In Stock

Order soon, only 1 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Long Block Crate Engine Type, 10.3:1 Compression Ratio

BluePrint Engines Small Block GM 400 CI Crate Engine
Carbureted Deluxe Dressed Longblock with Aluminum Heads and Pulleys
This GM 400 c.i. engine puts out 500 horsepower and 510 ft lb. of torque
Compression Ratio: 10.3:1
All aluminum heads and roller cams

See more details

Key Specs

Crate Engine Type	Long Block
Compression Ratio	10.3:1
Engine Displacement	400 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

BluePrint Engines BP4002CTC1DK Details

BluePrint Engines Small Block GM 400 CI Crate Engine
Carbureted Deluxe Dressed Longblock with Aluminum Heads and Pulleys
HP And Torque: 500 HP / 510 FT LBS
Compression Ratio: 10.3:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons

BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.125" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
3.750" Stroke
Forged I Beam 5.700" connecting rods w/ 150,000 psi bolts
Forged Pistons
Internal Front/ External Rear

CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - HP8103
64cc chamber
2.08" intake/1.60" exhaust valves
220cc intake/67cc exhaust runners

CAM SPECS:
Cam Type: Roller
.555 Intake .576 Exhaust
236 Intake / 242 Exhaust duration
@ .050 - 110 ° lobe separation

IGNITION TIMING:
10-16° inital and total timing 32-34° at 3500 RPM

ALSO INCLUDES:
Intake Manifold dual plane, satin aluminum
850cfm Carburetor
Distributor
Valve covers
Harmonic balancer
Spark plugs
Spark plug wires
Fuel Pump
Oil pan
Timing cover

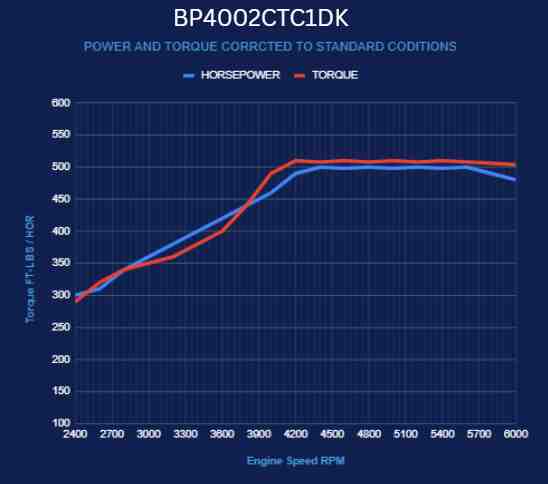

Dyno tested and shipped with results
Complete Front Accessory Drive with P/S. 7B10 Peanut style A/C compressor, 1-Wire Alternator.
Front Accessory Drive does NOT fit Corvette

WARRANTY:
30 month / 50,000 mile

Features

The front serpentine assemblies installed on the deluxe dressed crate engines feature the 7B10 Peanut style A/C compressor, this unit is fitted for the R-134A Freon Refrigerant type-fittings, and is compatible with most aftermarket A/C systems such as Vintage Air.

Guides & Documents

Crate Engines Technical Information (227BP4002CTCIDK)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

BluePrint Engines BP4002CTC1DK Specifications

KEY SPECS
MFG. Part #	BP4002CTC1DK
Brand	BluePrint Engines
Crate Engine Type	Long Block
Compression Ratio	10.3:1
Engine Displacement	400 cu. in.
Camshaft Type	Hydraulic Roller
Cylinder Head Material	Aluminum
Piston Material	Forged Aluminum
Crankshaft Material	Forged Steel
Carburetor Included	No
Intake Manifold Included	No
Distributor Included	No
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Engine Balance	Internal
Cylinder Heads Included	Yes
Rear Main Seal Style	1-piece
Throttle Body Included	No
Timing Cover Included	Yes
Oil Pan Included	Yes
Water Pump Included	No
Harmonic Balancer Included	Yes
Flexplate Included	No
Flywheel Included	No
Air Cleaner Included	No
Spark Plugs Included	No
Spark Plug Wires Included	No
Computer Included	No
Wiring Harness Included	No
Spark Plug Style	Straight

GENERAL
Torque	510 ft./lbs
Horsepower	500 horsepower
Camshaft Duration (.050 in)	236° intake / 242° exhaust
Camshaft Lift (in)	.555 intake / .576 exhaust
Bore x Stroke (in)	4.125" bore x 3.750"
Sold in Quantity	Each
