Aluminum Fan Shroud For Speedway Motors Radiators, Single Fan

#9175021

Aluminum Fan Shroud For Speedway Motors Radiators, Single Fan

Name: Aluminum Fan Shroud For Speedway Motors Radiators, Single Fan
Brand: Speedway Motors
SKU: 9175021
Rating: 4.5 (21 reviews)

21 Reviews

1 Question

Universal aluminum fan shroud for single 16-inch electric fans available in six widths
Single Aluminum Fan Shroud is designed to fit Speedway Motors' 22, 24, 26, 28, 31, and 33" SBC/BBC universal (917347) single pass and (917340) double pass radiators, but may fit others.
Please order using your advertised radiator width, the shroud will be sized accordingly to fit the core size of the radiator.

Finish:

Aluminum

Black

Radiator Width:

Select a radiator width

$102.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 15.50" Hole Diameter, 0.97" Depth, Bare

Universal aluminum fan shroud for single 16-inch electric fans available in six widths
Single Aluminum Fan Shroud is designed to fit Speedway Motors' 22, 24, 26, 28, 31, and 33" SBC/BBC universal (917347) single pass and (917340) double pass radiators, but may fit others.
Please order using your advertised radiator width, the shroud will be sized accordingly to fit the core size of the radiator.
Attaches to the radiator via the top and bottom channel lips
Electric fan, wiring, and other accessories sold separately

See more details

Key Specs

Overall Width	Select Finish and Radiator Width
Overall Height	19.43"
Depth	0.97"
Material Thickness	.063"
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Available in six different radiator widths to match our universal radiators core width

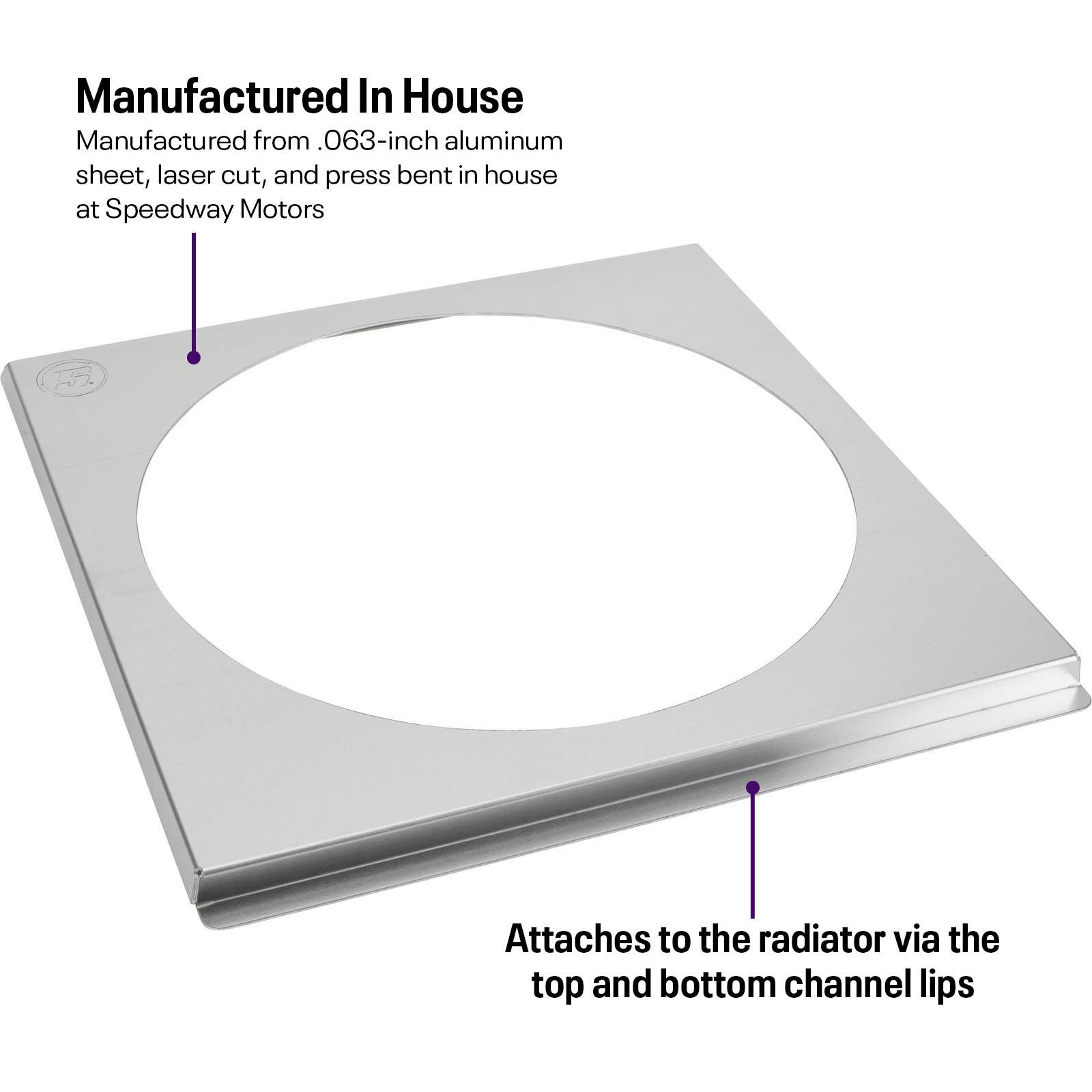

Built from .063-inch 3003 H14 sheet aluminum, laser cut, and press bent
Features a centered 15.5" dia. pre-cut electric fan opening for 16-inch diameter fans
Most weigh less than two pounds (31- and 33-inch approximately 2.5-pounds)
Mounts via radiator’s upper and lower core channel edges
Electric fan, wiring/relay kit, and rubber cooling flaps sold separately

When Space Is at A Premium, An Electric Cooling Fan Is a Must

Engine driven fans have been around for more than a century and provide a simple solution to pulling ambient air through the vehicle’s radiator to reduce cooling system temperatures. Often used with a radiator mounted fan shroud They work well in stock engine/chassis environments but can often become a source of frustration when performing engine swaps or upgrading to thicker radiators to combat elevated temperatures in performance engine builds. Enter the electric cooling fan.

The electric cooling fan, once a staple of engine swaps and race car builds has become the preferred OEM cooling fan of choice, and for several great reasons. They do not take away from engine horsepower, provide a much more compact cooling fan solution, and can be controlled in several ways (manual switch, thermal switch, modulated fan controller, etc.). The only drawback to an electric cooling fan has been in how to mount them to your radiator. Through the core mounts and universal brackets are the norm, but neither product is a secure fan mount and can damage your radiator’s core fins or tubes. Our new electric fan shroud provides a quick and secure way to mount an electric cooling fan while also providing an effective cooling solution by forcing air to be pulled through the whole radiator core and not just through the fan’s diameter area.

Designed To Fit Radiators with Lip-Style Upper and Lower Channels

We made our aluminum fan shroud to fit our universal single pass and double pass SBC/BBC radiators, but honestly this universal fan shroud will work with many crossflow radiators using lip-style upper and lower radiator channels. Measure your radiator carefully and refer to the product drawings provided to confirm fitment on radiators other than those mentioned above.

Installation of our aluminum radiator shroud is easy with the shroud’s upper mount hooking to the radiator channel’s upper lip. At the bottom of the radiator shroud, we left final retention to the end user. You can attach your fan shroud’s bottom lip via rivets, tapping screws, or small bolt/locknut hardware. The pre-cut 15-1/2-inch fan opening is designed to work with most any 16-inch cooling fan and there is ample radiator shroud surface area to add rubber cooling flaps if desired for highway speed cooling passthrough needs.

Application

Pairs pefectly with Speedway Motors' 22", 24", 26", 28", 31", and 33" radiators:

917347 SBC/BBC universal single pass

917340 SBC/BBC universal double pass

Guides & Documents

Cooling Fan Shrouds Installation Instructions (9175021)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Specifications

KEY SPECS
MFG. Part #	Select Finish and Radiator Width to see
Brand	Speedway Motors
Overall Width	Select Finish and Radiator Width to see
Overall Height	19.43"
Depth	0.97"
Material Thickness	.063"
Material Type	Aluminum
Finish	Bare
Hardware Included	No

GENERAL
Hole Diameter	15.50"
Installation Type	Bolt-On / Screw-On
Sold in Quantity	Each

Ratings & Reviews

4.5

21 Reviews

Overall Assessment

Customers praise the product for its perfect fit and exceptional quality, specifically for sbc 28" applications. It stands out in its practicality, satisfying customers enough that they plan on purchasing again for future projects. Its manufacturing level is assuredly superior, winning over customers by its confirmed features and performance.

Write A Review

4.5

21 reviews

Most Liked Positive Review

5.0

OUTSTANDING PRODUCT

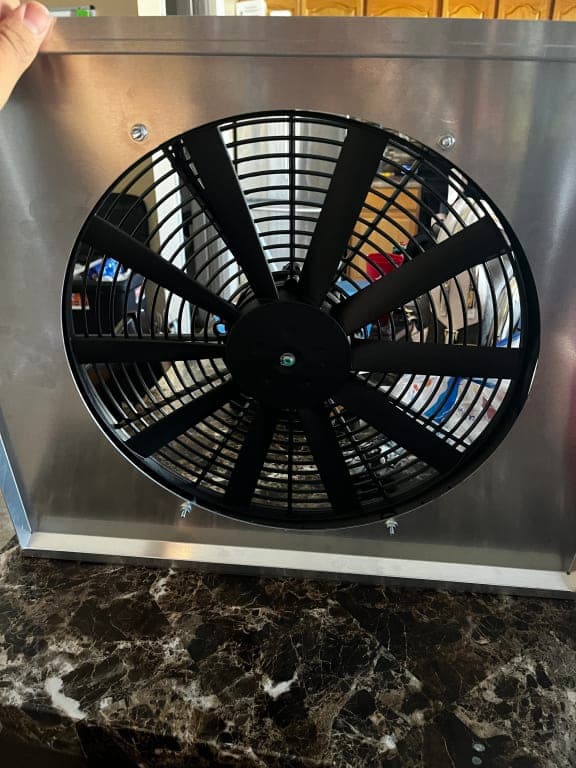

I was concerned regarding how this would arrive and then install since it is aluminum and would damage VERY easy in shipping. It arrived On TIME and was packaged very well to prevent damage from handling. In addition, it was completely covered on the finished side with a protective "peel off" coating. The dimensions I had to work with were VERY critical and it was ESSENTIAL for this to be exactly as advertised in order to fit. Low and behold, it was PERFECTLY sized and once I drilled the mounting holes it fit perfectly in place with NO additional alterations or fabrication of ANY sort.

Most Liked Negative Review

1.0

i ordered the size needed and they sent me what every they felt like and were no help at all on the phone apparently there sweat shop techs can't measure

Filter by Ratings

Sort Reviews

1.0

a month ago

nived321

Michigan

Verified

i ordered the size needed and they sent me what every they felt like and were no help at all on the phone apparently there sweat shop techs can't measure

Would Not Recommend

I couldn't use this part

2.0

4 months ago

Dell

Verified

No i couldn't use that part it wasn't the right fit and there were no pre drilled holes to mount the fans

Would Recommend

Great, Fit Jegs Radiator

5.0

7 months ago

Buggymax

Wampum

Verified

This has worked great for me on my Jegs radiator. Dimensions were true and fitment was good. Used a little puffy tape to seal the cracks and hasnt needed adjusted since installed. Made a ton of difference in cooling, fan runs so much less.

Would Recommend

Best shroud

5.0

7 months ago

Down ranger

Detroit

Verified

Great fan shroud fits perfectly

Would Recommend

OUTSTANDING PRODUCT

5.0

8 months ago

WEN

YO OH

Verified

I really had to modify this shroud. It must only fit one bra

3.0

12 months ago

PastorFreddiek

Abilene, TX

Verified

Although the quality is good, the fit was a killer. Took a few hours.

Would Not Recommend

I would buy this again

5.0

a year ago

Rob

Phoenix, AZ

Verified

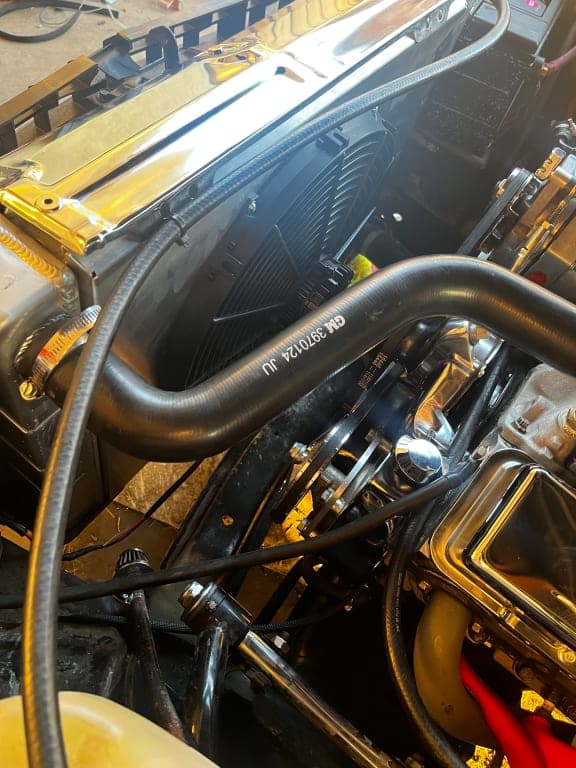

I used this shroud to mount a 16" e-fan in my LS swapped BMW 750Li. My car would not stay below 180 degrees without it and now I can idle through pits and paddocks at 165 consistently.

Would Recommend

Pretty good for the money

4.0

a year ago

Radiator

Omaha Nebraska

Verified

I think a 4 core may work a little better.

Would Recommend

Impressive fan shroud

5.0

a year ago

Angel

Phoenix, Az

Verified

Perfect fit for a 16" fan. Well made pressed aluminum. Works well with speedway motors 28 inch aluminum radiator.

Would Recommend

Shrouded

5.0

a year ago

Shroud

Lincoln

Verified

Works well and perfect size for Speedway 28 inch radiator.

Would Recommend

Load More Reviews

Showing 10 of 21 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

I'm needing a shroud 22.5"wide 19"tall by .5-1" depth

by Mark

• 2 years ago

1 answer

View Answer

1 of 1 questions shown
