Add to Cart
$999.99
$899.99
9 Super 7® 2x2 Carb/Offy Intake Manifold Kit, 1949-53 Flathead
9 Super 7® 2x2 Carb/Offy Intake Manifold Kit, 1949-53 Flathead

9 Super 7® 2x2 Carb/Offy Intake Manifold Kit, 1949-53 Flathead

Single Plane Intake Manifold Type, Two Carburetor Quantity, 2-Barrel Carburetor Barrels

3 Reviews | 8 Answered Questions
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
9 Super 7® 2x2 Carb/Offy Intake Manifold Kit, 1949-53 Flathead
9 Super 7® 2x2 Carb/Offy Intake Manifold Kit, 1949-53 Flathead
9 Super 7® 2x2 Carb/Offy Intake Manifold Kit, 1949-53 Flathead
X
9 Super 7® 2x2 Carb/Offy Intake Manifold Kit, 1949-53 Flathead
Zoomed In Image
We estimate this item will ship on or before June 1st.
Part # 9251120
Save 10%
$899.99
$999.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Popular Offenhauser regular Dual '49-'53 Flathead Ford intake with Speedway's 9 Super 7® carbs for that period correct look
  • Carb pads are angled as they were on stock 49-53 intakes and have 4-3/4" carb centers
  • Front drivers side accessory hole is for draft tube and measures 1.25", rear drivers side accessory hole is for oil fill tube and measures 1.375"
  • All-new tooling for crisp, flawless castings, aluminum base assembly allows for cooler fuel temps and better fuel efficiency as compared to the original cast iron design
  • Original troublesome needle and seat replaced by a Grose-style fuel inlet valve to better cope with higher fuel pressures and improved high speed running

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Intake Manifold Type:
Single Plane
Carburetor Quantity:
Two
Carburetor Barrels:
2-Barrel
Carburetor Flange Type:
2-Barrel 3-Bolt
Choke Type:
Manual
Fuel Type:
Gasoline
Intake Manifold Material:
Aluminum
Intake Manifold Finish:
Natural
Carburetor Finish:
Natural
Air Cleaner Type:
Round Helmet Style
Air Cleaner Finish:
Chrome
MFG. Part #:
9251120
Sold in Quantity:
Kit

Info

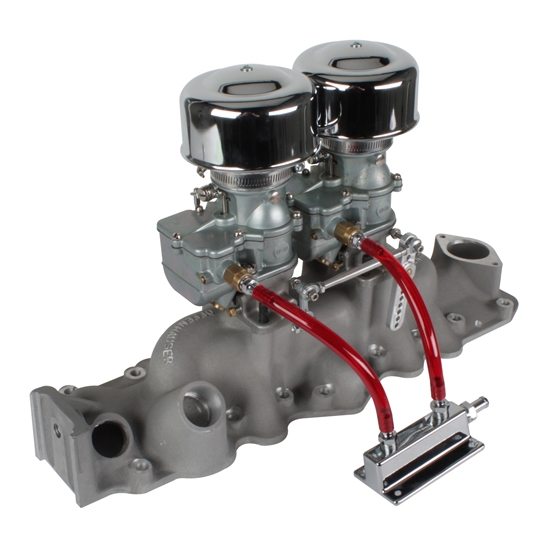

This kit uses the Offy Dual '49-'53 Flathead Ford intake with Speedway's 9 Super 7® carbs. It includes two carbs, the intake, air cleaners, linkage kit, fuel block, fittings and red fuel line. Assembly required.

Said to be its most popular flathead intake, Offenhauser’s 2x2 Regular intake has closely spaced carbs that will clear the stock generator. The Offy regular dual intake accepts two 3-bolt carbs. Great addition to a street oriented engine. Has 4-3/4" carb centers.

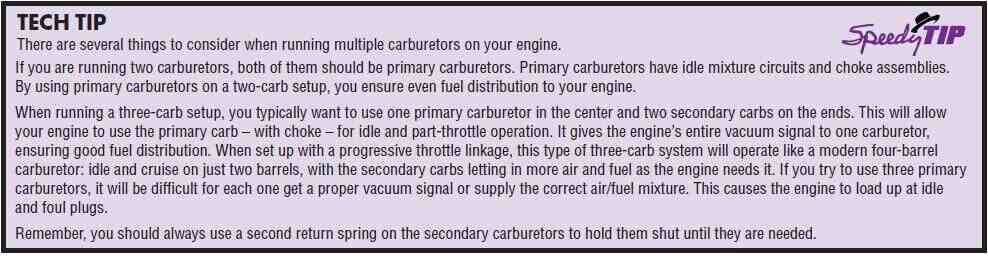

The 9 Super 7® makes setting up a multiple carburetor induction system easier than when Strombergs were available new. All that's required to do so with our kits is a Uni-Syn syncing tool and a little patience. Be sure to include the Secondary 9 Super 7® when installing 3-carb setups. Our 3 Carb kits come with one primary carburetor and two secondary carburetors while the 2 Carb kits are both primary carbs.  See our Multiple Carburetor Tech Tip for more information on using the 9 Super 7® in a 2x2 or 3x2 carb set-up.

  • Carb Centers:  4-3/4"
  • Carb pads are angled as they were on stock 49-53 intakes
  • Front drivers side accessory hole is for draft tube and measures 1.25"
  • Rear drivers side accessory hole is for oil fill tube and measures 1.375"
  • All-new tooling for crisp, flawless castings
  • New aluminum base assembly allows for cooler fuel temps and better fuel efficiency as compared to the original cast iron design
  • Stainless steel screws and hardware
  • Original troublesome needle and seat replaced by a Grose-style fuel inlet valve to better cope with higher fuel pressures and improved high speed running
  • Will not stick or dribble like the old Viton-tipped needle and seat setups
  • Extended brass throttle shaft to simplify multi-carb linkage

Note: If used with our progressive linkage kit, the front carburetor will need to be set as the primary.

Note: Not recommended for use with Ethanol fuels.



Notes

Note: There is not enough room to mount the generator in the stock location, and therefore requires an offset bracket to relocate the generator. If using a GM alternator, use our chrome 916-67909 or plain 916-67910 bracket.

Note: There are no provisions for a vacuum advance line. Ford & Mercury engines 1949-1953 using stock distributors will need an alternative place to connect the vacuum line.

9 Super 7® Primary Carbs -

  1. Features .045" main metering jets and a number 65 power valve, which is the same as a stock 97 carb.
  2. Replacement jet access plug gasket use # 91011542, replacement needle & seat gasket use # 91011543.
  3. Includes base gasket.
  4. The 9 Super 7® ® will operate suitably with fuel pressures ranging from 1-1/2 psi to 4 psi, with a desired setting of 2-1/2 psi to 3 psi. Fuel pressure from 4 psi to 7 psi will cause the carburetor to run excessively rich and may cause flooding. Flooding or leaks caused by excessive fuel pressure do not indicate a faulty carburetor.
  5. Our independent tests produced these flow numbers:
    • 3" of Vacuum - 60 CFM
    • 10" of Vacuum - 110 CFM
    • 15" of Vacuum - 136 1/2 CFM
    • 28" of Vacuum - 184 CFM
Learn more about setting up 3 x 2 carbs using the 9 Super 7® ® in Street Rodder Magazine's tech article Speedway Motors Stromberg 97 - Tri-Power In Under An Hour.

See what other industry experts are saying about the 9 Super 7® ® here.

Charts

9 Super 7® Linkage Instructions (PDF)

915-11655 9 Super 7® Carb Instructions (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Offenhauser 1075 1949-1953 Ford Flathead Regular Dual Intake Manifold
    Qty x 1
  • 2x2 9Super7-LINKAGE HRDWARE
    Qty x 1
  • 3.5 Inch Swedged Aluminum Throttle Linkage Tubes, 3/16 (10-32) Thread
    Qty x 1
  • 97-Style Carburetor Fuel Inlet Fitting, 1/2 In-20 to 5/16 Hose, Chrome
    Qty x 2
  • Two Outlet T-Style Chrome Fuel Block
    Qty x 1
  • Red See-Through Fuel Line Hose, 5/16 Inch I.D. x 6 Ft.
    Qty x 1
  • Helmet Style Air Cleaners
    Qty x 2
  • 1 1/4" Carb Stud Kit Bag of 4
    Qty x 2
  • Straight Chrome Fitting, 3/8 Inch Hose to 3/8 Inch NPT
    Qty x 1
  • Straight Chrome Fitting, 5/16 Inch Hose to 1/4 Inch NPT
    Qty x 2
  • 1949-1953 Ford Flathead Intake Manifold Gasket
    Qty x 1
  • Primary 9 Super 7® 3-Bolt 2-Barrel Carburetor, Plain Finish
    Qty x 2
  • Stromberg 97-Style Extended Throttle Shaft Arm
    Qty x 1
  • Stromberg 97-Style Center Carb Throttle Shaft Arm
    Qty x 1
