Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1
Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1

Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1

Oval Track Cars, Floor Mount Position, Forward Master Cylinder Mount Type, 9.6" Mounted Length

1 Review | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1
Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1
Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1
Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1
X
Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1
Wilwood 340-13831 Dual Master Cylinder Floor MountBrake Pedal, 6:1
Zoomed In Image
Part # 83534013831
$129.96
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Pedal features a lightweight aluminum frame with high strength reinforced I-Beam styled forged pedals
  • Mounted length measures 9.6"
  • Non-skid waffled pedal pads can be adjusted laterally
  • Pedal ratio is 7:1
  • Balance bar incorporates a positive detent stop every full turn

Details

Position:
Floor Mount
Master Cylinder Mount Type:
Forward
Pedals Included:
Brake
MFG. Part #:
340-13831
Mounted Length:
9.6"
Material Type:
Aluminum
Finish:
EDP Coated
Color:
Black
Hardware Included:
Yes
Sold in Quantity:
Each
Mount Position:
Floor
Mount Facing:
Forward
Balance Bar:
Yes
Length:
9.6"
Pedal 1 Length:
9.6"
Pedal 1 Ratio:
6.0 to 1
GTIN Code:
889545070507

Info

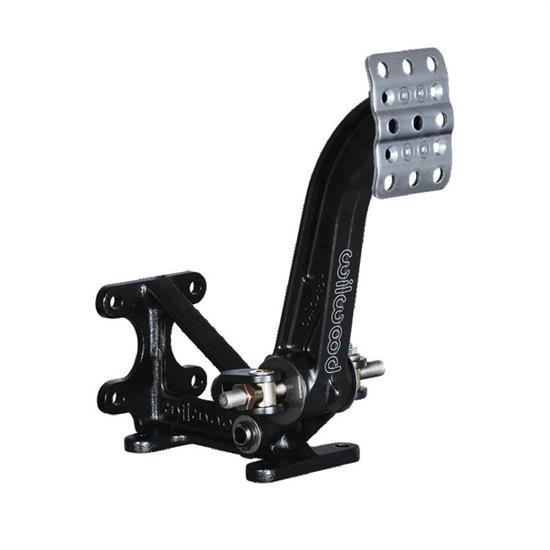

This single mount pedal assembly from Wilwood mounts two single outlet brake master cylinders in a forward position outside the firewall. The pedal features a lightweight aluminum frame with high strength reinforced I-Beam styled forged 7:1 ratio pedal arms. You can adjust the non-skid waffled pedal pads laterally to your preference or for any needed clearance. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. In addition, the balance bar can be locked in place with the included jam nut or it can be used with an optional remote cable for quick on-track adjustments. A pin and clevis pushrod attachment system provides the highest possible degree of misalignment angle for bind free operation through the entire range of travel. This pedal will accept any Wilwood vertical mount flange single outlet master cylinders (sold separately).

Charts

835-34013831 Instructions(PDF)
