Product Summary

Universal Fit, Firewall Position, Tandem Outlet Count

    Key Specs

    MFG. Part #261-14158
    PositionFirewall
    Brake System TypeDisc
    Outlet CountTandem
    Reservoir TypeIntegral

    Need To Know

    This Product Will Ship Free

    Quick and Easy Returns

    Details

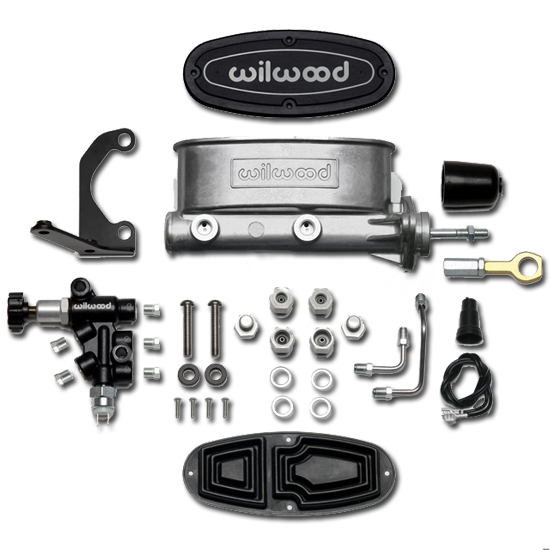

    Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood's Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting and included rod assembly makes it a simple bolt on for Early Ford Mustang and fully is compatible with manual system applications. Mustang Tandem Master cylinders are available in two bores sizes, 7/8”or 15/16”, and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems.

    The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

    • Aluminum construction
    • Plain finish
    • Fits 1965-87 Mustang

    Specifications

    KEY SPECS
    MFG. Part #261-14158
    BrandWilwood
    PositionFirewall
    Brake System TypeDisc
    Outlet CountTandem
    Reservoir TypeIntegral
    GENERAL
    Master Cylinder Bore Size15/16 Inch
    Stroke1.1"
    Master Cylinder MaterialAluminum
    FinishBare
    ColorNatural
    Reservoir IncludedYes
    Number of Mounting Holes2
    Reservoir MaterialAluminum
    Reservoir Size (cu in)14.4 or 8.7
    Fluid Capacity8.0 / 4.8 fl oz.
    Area0.69 sq. in.
    Master Cylinder Cap IncludedYes
    Hardware IncludedYes
    Pushrods IncludedYes
    Mounting Bracket IncludedNo
    Outlet Fitting3/8"-24 IFF or 1/2"-20 IFF
    Outlet Fitting 23/8"-24 IFF or 9/16"-18 IFF
    Overall Length13.65"
    Mounted Length8.15"
    Centerline of Holes3.2"
    Sold in QuantityEach
    GTIN Code889545076882
