| MFG. Part # | 261-14158-BK |
| Brand | Wilwood |
| Master Cylinder Bore Size | 15/16 Inch |
| Master Cylinder Material | Aluminum |
| Finish | EDP Coated |
Need help?
855.313.9176Quick and Easy Returns

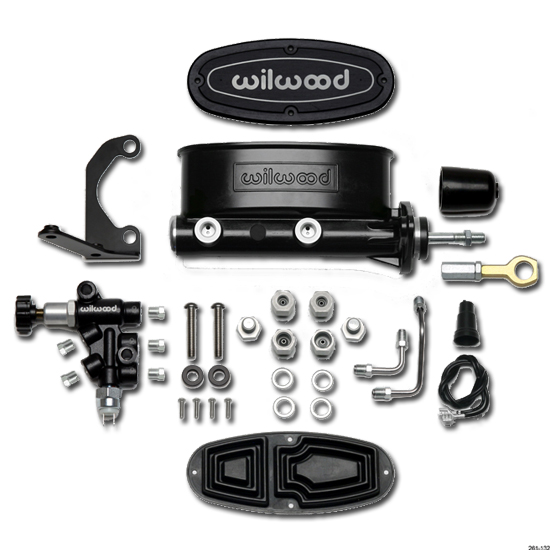

Return PolicyWilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood's Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting and included rod assembly makes it a simple bolt on for Early Ford Mustang and fully is compatible with manual system applications. Mustang Tandem Master cylinders are available in two bores sizes, 7/8”or 15/16”, and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems.
The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.
| KEY SPECS | |
|---|---|
| MFG. Part # | 261-14158-BK |
| Brand | Wilwood |
| Master Cylinder Bore Size | 15/16 Inch |
| Master Cylinder Material | Aluminum |
| Finish | EDP Coated |
| GENERAL | |
| Position | Firewall |
| Brake System Type | Disc |
| Outlet Count | Tandem |
| Reservoir Type | Integral |
| Stroke | 1.1" |
| Color | Black |
| Reservoir Included | Yes |
| Number of Mounting Holes | 2 |
| Reservoir Material | Aluminum |
| Reservoir Size (cu in) | 14.4 or 8.7 |
| Fluid Capacity | 8.0 / 4.8 fl oz. |
| Area | 0.69 sq. in. |
| Master Cylinder Cap Included | Yes |
| Hardware Included | Yes |
| Pushrods Included | Yes |
| Mounting Bracket Included | No |
| Outlet Fitting | 3/8"-24 IFF or 1/2"-20 IFF |
| Outlet Fitting 2 | 3/8"-24 IFF or 9/16"-18 IFF |
| Overall Length | 13.65" |
| Mounted Length | 8.15" |
| Centerline of Holes | 3.2" |
| Sold in Quantity | Each |
| GTIN Code | 889545076899 |
