Wilwood 261-13269-P High Volume Tandem Master Cylinder Kit, 1 In. Bore

#83526113269P

Wilwood 261-13269-P High Volume Tandem Master Cylinder Kit, 1 In. Bore

Features a slotted flange mounting makes it a simple bolt on for many OE mounts
Combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems
A combination block maintains full isolation between front and rear fluid circuit

Finish:

Chrome P-Coat

$456.55

/each

Factory Shipped

$476.39

Save $19.84

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Firewall Position, Tandem Outlet Count

Features a slotted flange mounting makes it a simple bolt on for many OE mounts
Combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems
A combination block maintains full isolation between front and rear fluid circuit
Valve and bracket are black E-coated for a performance look and long lasting durability
Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation

See more details

Key Specs

MFG. Part #	261-13269-P
Brand	Wilwood
Master Cylinder Bore Size	1 Inch
Master Cylinder Material	Aluminum
Finish	Polished

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 261-13269-P Details

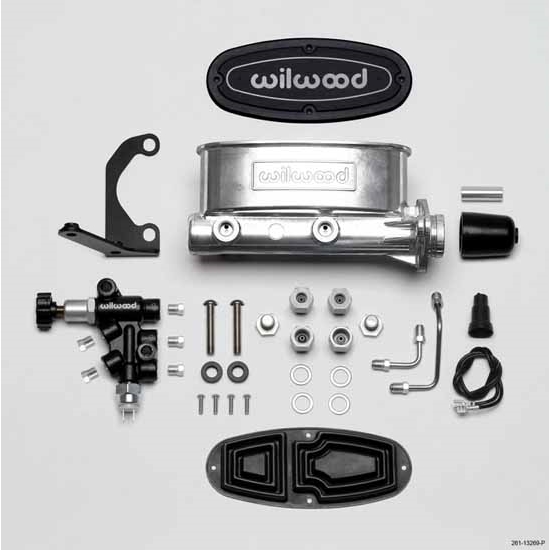

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in three bores sizes, 7/8" , 1" or 1-1/8" , and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

Wilwood 261-13269-P Specifications

KEY SPECS
MFG. Part #	261-13269-P
Brand	Wilwood
Master Cylinder Bore Size	1 Inch
Master Cylinder Material	Aluminum
Finish	Polished

GENERAL
Position	Firewall
Brake System Type	Disc
Outlet Count	Tandem
Reservoir Type	Integral
Stroke	1.1"
Reservoir Included	Yes
Number of Mounting Holes	2
Reservoir Material	Aluminum
Reservoir Size (cu in)	14.4 or 8.7
Fluid Capacity	8.0 / 4.8 fl oz.
Area	0.780 sq. in.
Master Cylinder Cap Included	Yes
Hardware Included	Yes
Pushrods Included	No
Mounting Bracket Included	Yes
Outlet Fitting	3/8"-24 IFF or 1/2"-20 IFF
Outlet Fitting 2	3/8"-24 IFF or 9/16"-18 IFF
Overall Length	8.76"
Mounted Length	8.15"
Centerline of Holes	3.2"
Sold in Quantity	Kit
GTIN Code	889545068092

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

I have a 1955 Chevy Belair. Is the 261-13269-P a direct replacement on that car. It has a 4 wheel disc manual brake setup.

by 5dream5

• 11 years ago

1 answer

View Answer

1 of 1 questions shown
