Wilwood 261-13269 H/V Tandem Master Cylinder Kit, Brkt/Valve, 1 Inch
by
Wilwood1 Review
|
2 Questions
- Slotted flange mounting makes it a simple bolt on for many OE mounts
- Is compatible with manual or power brake system applications
- A combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems
See More
$359.29
each
In Stock
Order soon, only 2 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Firewall Position, Tandem Outlet Count
- Slotted flange mounting makes it a simple bolt on for many OE mounts
- Is compatible with manual or power brake system applications
- A combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems
- Combination block maintains full isolation between front and rear fluid circuits
- Specifically designed to accompany the Tandem Chamber Master Cylinder
See more details
Key Specs
MFG. Part # | 261-13269 |
Brand | Wilwood |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 261-13269 Details
Wilwood 261-13269 Details

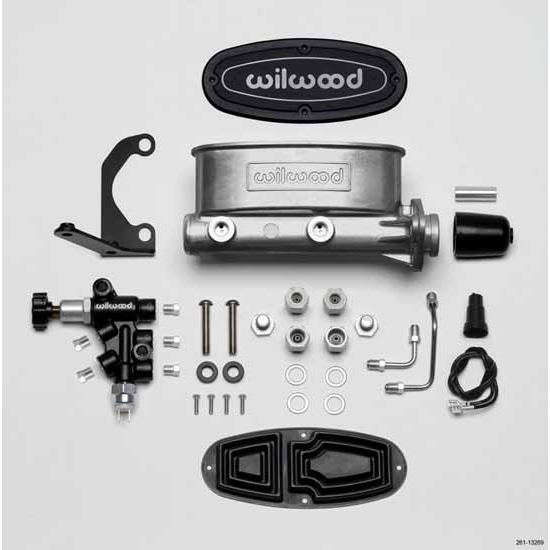

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in three bores sizes, 7/8" , 1" or 1-1/8" , and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.
Guides & Documents
Wilwood 261-13269 Specifications
Wilwood 261-13269 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 261-13269 |
Brand | Wilwood |
GENERAL | |
Position | Firewall |
Brake System Type | Disc |
Outlet Count | Tandem |
Reservoir Type | Integral |
Master Cylinder Bore Size | 1 Inch |
Stroke | 1.1" |
Master Cylinder Material | Aluminum |
Finish | Natural |
Reservoir Included | Yes |
Number of Mounting Holes | 2 |
Reservoir Material | Aluminum |
Reservoir Size (cu in) | 14.4 or 8.7 |
Fluid Capacity | 8.0 / 4.8 fl oz. |
Area | 0.78 sq. in. |
Master Cylinder Cap Included | Yes |
Hardware Included | Yes |
Pushrods Included | No |
Mounting Bracket Included | Yes |
Outlet Fitting | 3/8"-24 IFF or 1/2"-20 IFF |
Outlet Fitting 2 | 3/8"-24 IFF or 9/16"-18 IFF |
Overall Length | 8.76" |
Mounted Length | 8.15" |
Centerline of Holes | 3.2" |
Sold in Quantity | Kit |
GTIN Code | 889545068078 |
