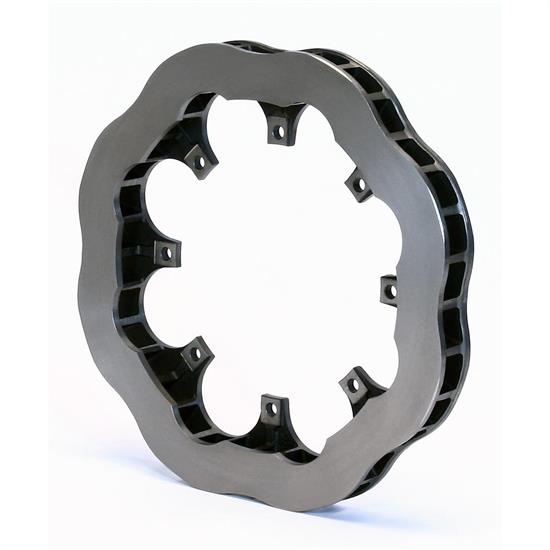

Wilwood 160-8814 UL Scalloped 32 Vane Iron Rotor, 11.75 Inch

#8351608814

Wilwood 160-8814 UL Scalloped 32 Vane Iron Rotor, 11.75 Inch

Name: Wilwood 160-8814 UL Scalloped 32 Vane Iron Rotor, 11.75 Inch
Brand: Wilwood
SKU: 8351608814
Price: 147.85 USD
Availability: InStock

Write a Review

Ask a Question

Type:

Scalloped Plain Face

Plain Face R/H Plain Face L/H Plain Face (Straight Vane)Race Drilled Scalloped Plain Face Ultra-Light

$147.85

/each

Factory Shipped

$154.28

Save $6.43

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Scalloped Rotor Shape, Vented Rotor Type

See more details

Key Specs

Rotor Diameter	11.75 Inch
Rotor Style	Plain Face
Rotor Material Type	Iron
Rotor Thickness	1.25"
Rotor Hat Bolt Pattern	8 x 7.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 160-8814 Details

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

Scalloped Rotors are unsafe for street use.
Suitable applications: Light Dirt Racing
Can result in failure if misused.

Wilwood 160-8814 Specifications

KEY SPECS
MFG. Part #	160-8814
Brand	Wilwood
Rotor Diameter	11.75 Inch
Rotor Style	Plain Face
Rotor Material Type	Iron
Rotor Thickness	1.25"
Rotor Hat Bolt Pattern	8 x 7.00"

GENERAL
Rotor Shape	Scalloped
Rotor Type	Vented
Rotor Finish	Plain
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Lug ID	6.38"
Inside Diameter	8.75"
Weight	6.4 lbs.
Sold in Quantity	Each
GTIN Code	889545040814
