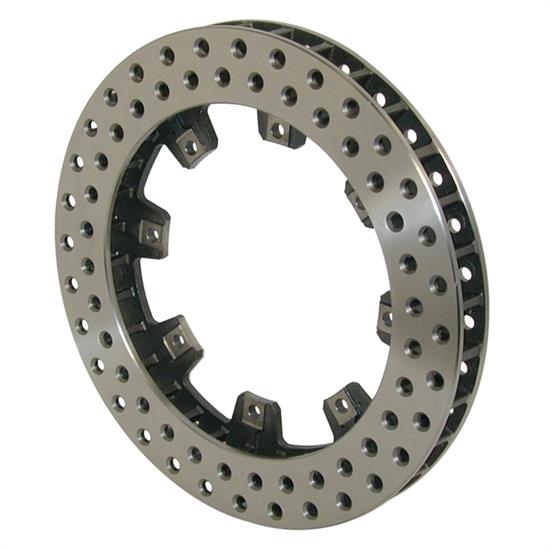

Wilwood 160-5864 Ultralite 32 Vane Drilled Vented Iron Rotor, 11.75 In

#8351605864

Wilwood 160-5864 Ultralite 32 Vane Drilled Vented Iron Rotor, 11.75 In

Name: Wilwood 160-5864 Ultralite 32 Vane Drilled Vented Iron Rotor, 11.75 In
Brand: Wilwood
SKU: 8351605864
Price: 86.28 USD
Availability: InStock
Rating: 4.8 (4 reviews)

4 Reviews

Ask a Question

Rotating and unsprung rotor mass reduced by 12%
Follows close tolerances on face and vane thickness
Rotor is cast from premium grade, long grain carbon iron

Type:

Race Drilled

Plain Face R/H Plain Face L/H Plain Face (Straight Vane)Scalloped Plain Face Ultra-Light Scalloped Plain Face

$86.28

/each

In Stock

$90.03

Save $3.75

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, Round Rotor Shape, Vented Rotor Type

Rotating and unsprung rotor mass reduced by 12%
Follows close tolerances on face and vane thickness
Rotor is cast from premium grade, long grain carbon iron
A two row, 64 hole pattern - alternates between and directly over each vane
The 32 straight vane casting provides superior heat management and long service life

See more details

Key Specs

Rotor Diameter	11.75 Inch
Rotor Style	Drilled
Rotor Material Type	Iron
Rotor Thickness	1.25"
Rotor Hat Bolt Pattern	8 x 7.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Caution on Drilled Rotors

There is a common mis-perception that rotors are drilled to improve cooling. The reduced mass of a drilled rotor will dissipate its retained heat quicker, but it also builds up heat a much faster rate. The decision to use drilled rotors should be solely based on the merits of the lower rotating and unsprung weight, and NOT for improved cooling. It is NOT wise to use drilled rotors in sustained high heat on hard braking tracks unless the team budget affords a high frequency of rotor and brake pad replacement.

Race drilled rotors are unsafe for street use
Suitable applications: Light to moderate Dirt Racing

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Wilwood 160-5864 Details

When it comes to brake rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwoods ULD-32 drilled iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

Cast from premium grade, long grain carbon iron
Close tolerances on face and vane thickness
32 straight vane casting provides superior heat management and long service life
Two row, 64 hole pattern - alternates between and directly over each vane
Each hole deeply chamfered to eliminate stress points
Rotating and unsprung rotor mass reduced by 12%
Left or right hand mounting locations

Item Details

1.25" x 11.75"
8 x 7.00" B.C.

Specs

Thickness: 1.25"
Outside diameter: 11.75"
# Holes: 8
Bolt Circle: 7"
Thread: Thru
Weight: 7.7 lbs

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 160-5864 Specifications

KEY SPECS
MFG. Part #	160-5864
Brand	Wilwood
Rotor Diameter	11.75 Inch
Rotor Style	Drilled
Rotor Material Type	Iron
Rotor Thickness	1.25"
Rotor Hat Bolt Pattern	8 x 7.00"

GENERAL
Position	Rear
Rotor Shape	Round
Rotor Type	Vented
Rotor Finish	Plain
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Lug ID	6.38"
Inside Diameter	8.34"
Weight	7.7 lbs.
Sold in Quantity	Each
GTIN Code	889545039818

Ratings & Reviews

4.8

4 Reviews

Overall Assessment

Customers appreciate this product for its sturdy yet lightweight composition, and emphasize its consistent performance under both sport and casual usage conditions. The rotor's wear life is highly rated on diverse models, with customer's praising its enduring quality. Despite the longevity, users advise monitoring for stress cracks over time - a common occurence in all drilled rotors. Comparatively speaking, this rotor has earned customer trust and satisfaction outperforming competitors in reliability and durability.

Write A Review

4.8

4 reviews

Filter by Ratings

Sort Reviews

I would but agina

5.0

4 years ago

ROY

CALI

Verified

NO complaints

Would Recommend

Works good

5.0

4 years ago

Verified

No problems with it so far

Would Recommend

Sturdy and lightweight

5.0

12 years ago

Wardracing

Undisclosed

I have been using this rotor on the back of my 3500 lbs 70 Camaro that I race on Mid-Ohio, and it gets street driven. No issues so far just make sure keep eye out for stress cracks they will appear eventually like any other drilled rotor.

Would Recommend

A good part

4.0

12 years ago

FlatTire

Dallas, Tx

Rotors have good wear life on a dirt late model. Do keep an eye out for stress cracks as they age.

Would Recommend

Showing 4 of 4 reviews

Questions & Answers

Be the first to ask a question.
