Wilwood 160-8343 Ultralite 32 Vane Vented Scalloped Rotor, 11.75 Inch

#8351608343

Wilwood 160-8343 Ultralite 32 Vane Vented Scalloped Rotor, 11.75 Inch

It has an improved structural durability over drilled rotor designs
Vented castings provide increased cooling capacity over machined steel plate rotors
Scalloped machining removes as much as three pounds, or nearly 33% of the rotor mass

Type:

Scalloped Plain Face Ultra-Light

Plain Face R/H Plain Face L/H Plain Face (Straight Vane)Race DrilledScalloped Plain Face

$147.85

/each

In Stock

$154.28

Save $6.43

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, Scalloped Rotor Shape, Vented Rotor Type

It has an improved structural durability over drilled rotor designs
Vented castings provide increased cooling capacity over machined steel plate rotors
Scalloped machining removes as much as three pounds, or nearly 33% of the rotor mass
The scallop configuration provides greatest weight reduction on a vented straight vane iron rotor
These rotors are ideal for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges

See more details

Key Specs

Rotor Diameter	11.75 Inch
Rotor Style	Plain Face
Rotor Material Type	Iron
Rotor Thickness	1.25"
Rotor Hat Bolt Pattern	8 x 7.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Wilwood 160-8343 Details

When it comes to brake rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

Note: Suitable for Light Dirt Racing applications. Scalloped Rotors are unsafe for street use.

Features

Scallop configuration provides greatest weight reduction on a vented straight vane iron rotor
Scallop machining removes as much as three pounds, or nearly 33% of the rotor mass
Vented castings provide increased cooling capacity over machined steel plate rotors
Improved structural durability over drilled rotor designs

Charts

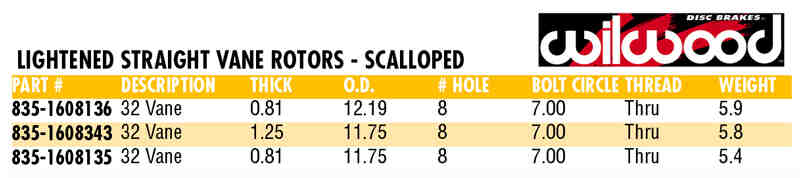

Rotor Application Chart (GIF)

Specs

Thickness: 1.25"
Outside diameter: 11.75"
# Holes: 8
Bolt Circle: 7"
Thread: Thru
Weight: 5.8 lbs

Guides & Documents

Brake Rotors Technical Information (8351608343)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 160-8343 Specifications

KEY SPECS
MFG. Part #	160-8343
Brand	Wilwood
Rotor Diameter	11.75 Inch
Rotor Style	Plain Face
Rotor Material Type	Iron
Rotor Thickness	1.25"
Rotor Hat Bolt Pattern	8 x 7.00"

GENERAL
Position	Rear
Rotor Shape	Scalloped
Rotor Type	Vented
Rotor Finish	Plain
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Lug ID	6.38"
Inside Diameter	8.34"
Weight	5.8 lbs.
Sold in Quantity	Each
GTIN Code	889545040470
