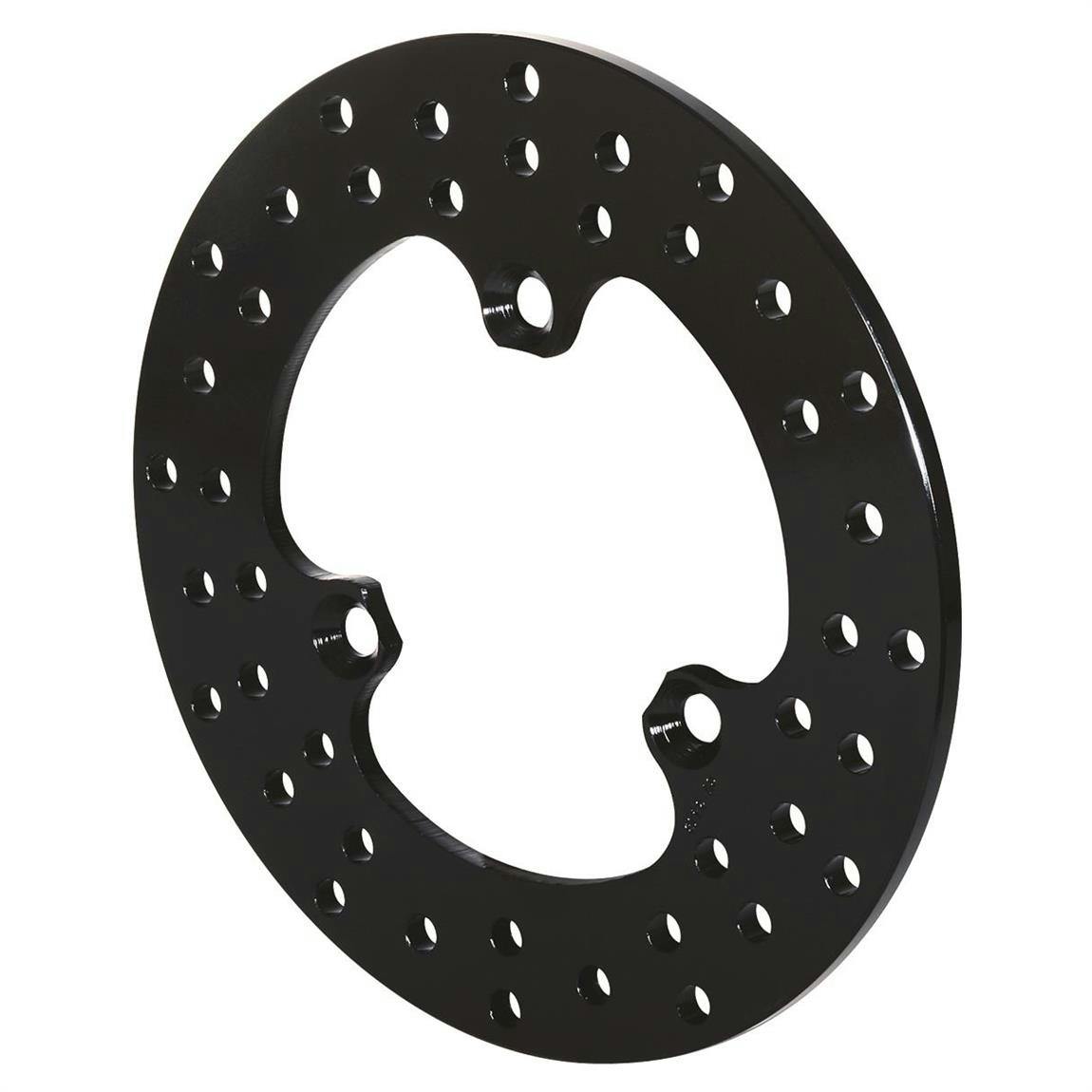

Wilwood 160-2084 Sprint/Mod Drilled Steel Rotor, 11 x .310 - 3 on 5.00

-7%

#8351602084

Wilwood 160-2084 Sprint/Mod Drilled Steel Rotor, 11 x .310 - 3 on 5.00

Name: Wilwood 160-2084 Sprint/Mod Drilled Steel Rotor, 11 x .310 - 3 on 5.00
Brand: Wilwood
SKU: 8351602084
Price: 125.68 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

Features an all steel construction with a black E-coat finish
Rotor diameter measures a total of 10.19" and is .31" thick
Drilled design ensures adequate heat dissipation

Type:

Steel / Round

Aluminum / Round Steel / Scalloped

$125.68

/each

In Stock

$135.74

Save $10.06

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, Round Rotor Shape, Solid Rotor Type

Features an all steel construction with a black E-coat finish
Rotor diameter measures a total of 10.19" and is .31" thick
Drilled design ensures adequate heat dissipation
Engineered to provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range

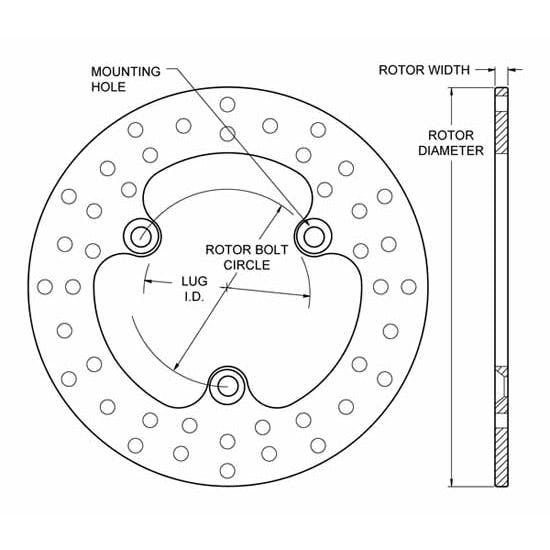

Has a 3 x 5.00" bolt pattern and the lug I.D. measures 4.10"

See more details

Key Specs

Rotor Diameter	10.95 Inch
Rotor Style	Drilled
Rotor Material Type	Steel
Rotor Thickness	0.31"
Rotor Hat Bolt Pattern	3 x 5.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Wilwood 160-2084 Details

Wilwoods Drilled Steel brake rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. Steel rotors are typically found in lighter weight open wheel cars such as sprints and modifieds. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.

Item Details

0.32 x 11
3 x 5" B.C.

Charts

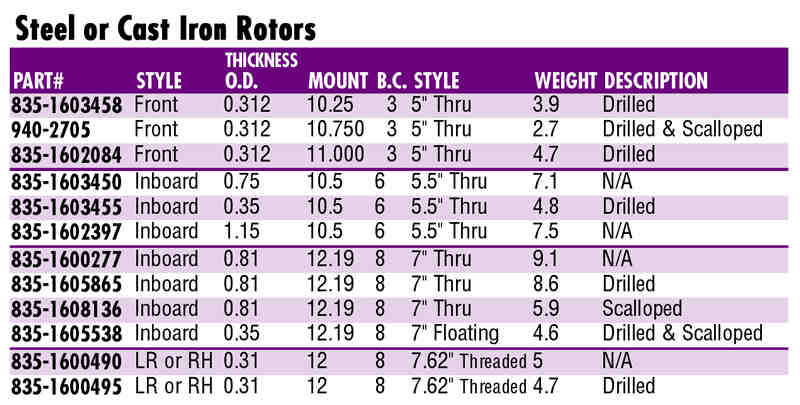

Steel Front Rotor Application Chart (GIF)

Specs

Solid steel
Front mounted
Thickness: 0.312"
O.D.: 11"
Bolt Circle: 3 x 5"
Threads: Thru
Weight: 4.7 lbs
Face: drilled

Guides & Documents

Brake Rotors Technical Information (8351602084)

CA Prop 65

Wilwood 160-2084 Specifications

KEY SPECS
MFG. Part #	160-2084
Brand	Wilwood
Rotor Diameter	10.95 Inch
Rotor Style	Drilled
Rotor Material Type	Steel
Rotor Thickness	0.31"
Rotor Hat Bolt Pattern	3 x 5.00"

GENERAL
Position	Front
Rotor Shape	Round
Rotor Type	Solid
Rotor Finish	Black E-Coat
Color	Black
Vane Count	None
Bedded	No
Balanced	No
Lug ID	4.10"
Weight	4.6 lbs.
Sold in Quantity	Each
GTIN Code	889545039207
