$257 Off

Wilwood 140-9219-D FNSL 4R Rear Brake Kit, Torino Ends, 2.50 Off

$257 Off

Wilwood 140-9219-D FNSL 4R Rear Brake Kit, Torino Ends, 2.50 Off
Wilwood

|

#8351409219D

Wilwood 140-9219-D FNSL 4R Rear Brake Kit, Torino Ends, 2.50 Off

Rotor / Caliper Type:

Drilled

Drilled / PolishedDrilled / RedUndrilledUndrilled / Red

$2,141.96

/each

Factory Shipped

$2,399.00

Save $257.04


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Rear Position, 12.88 Inch Rotor Diameter

    See more details

    Key Specs

    MFG. Part #140-9219-D
    PositionRear
    Rotor Diameter12.88 Inch
    Rotor TypeVented
    Caliper PistonsFour
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-9219-D Details

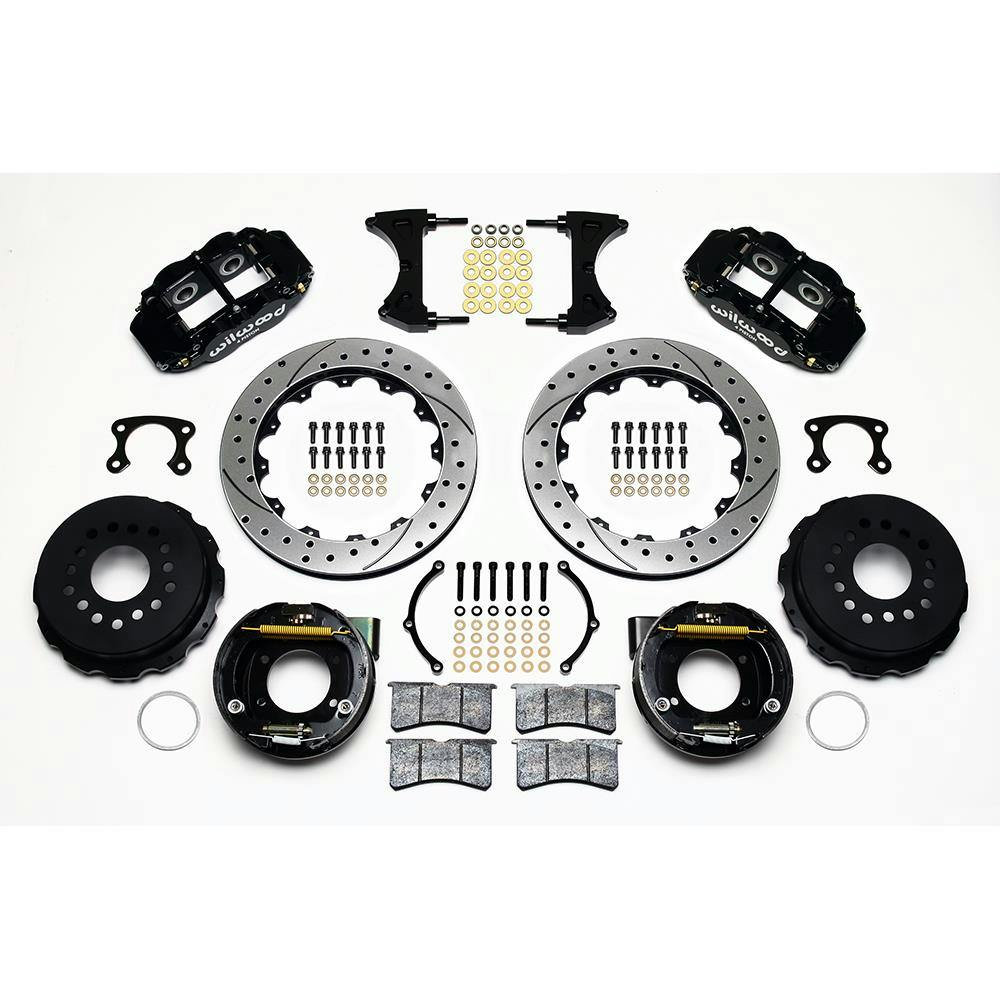

    Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-9219-D Specifications

    KEY SPECS
    MFG. Part #140-9219-D
    BrandWilwood
    PositionRear
    Rotor Diameter12.88 Inch
    Rotor TypeVented
    Caliper PistonsFour
    Caliper FinishPowder Coated
    ColorBlack
    Parking Brake ProvisionYes
    Minimum Recommended Wheel Diameter17 Inch
    Hardware IncludedYes
    Rotor StyleDrilled & Slotted
    Front Rotor IncludedNo
    Front Caliper IncludedNo
    Rear Caliper IncludedYes
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Ford Bearing End StyleBig Ford New Style (Torino)
    Rear Rotor IncludedYes
    Bolt Pattern5 on 4.5" | 4.75"
    GENERAL
    GTIN Code889545031096
    Rotor Thickness1.1"
    Axle Flange Offset2.50"
    Mount TypeRadial
    Total Piston Area1.96 sq. in.
    Piston TypeStainless
    Pad Area8.20 sq. in.
    Pad Volume3.80 cu. in.
    Brake Pad CompoundBP-10
    Caliper TypeRadial
    Rotor FinishBlack E-Coat
    Rotor Material TypeSpec-37 Iron
    Vane Count48 Curved Vane
    BeddedNo
    BalancedNo
    Hat TypeParking Brake Hat- Standard
    Hat FinishBlack E-Coat
    Hat Bolt Circle 35 x 5.00
    Hat Bolt Circle 25 x 4.75
    Hat Bolt Circle 15 x 4.50
    Hat Material TypeIron
    Hat Offset Dimension1.54"
    Brake Lines IncludedNo
    Caliper ColorBlack
    Caliper Material TypeForged Aluminum

    Fitment
