Part # 8351409219DR

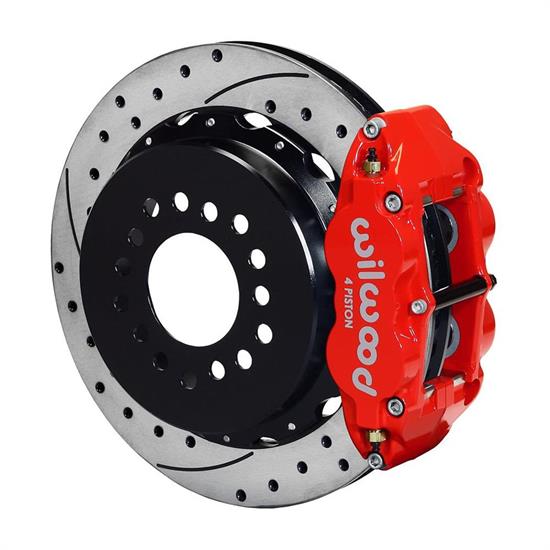

Wilwood 140-9219-DR FNSL 4R Rear Brake Kit,Big Ford New Style 2.50 Off

by

|

  • 12.88" rotor is designed to clear 17"-up wheels
  • High performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom applications
  • A neatly hidden internal shoe system provides a clean installation with superior static holding power for parking

$1,744.99

each

Factory Shipped

$1,786.39

Save $41.40

This part will be shipped by the manufacturer. We estimate this item will ship on or before November 5th.


Quantity

Select a vehicle to verify Fitment

Product Summary

Ford 9 Inch, Rear Position, 12.88 Inch Rotor Diameter

  • 12.88" rotor is designed to clear 17"-up wheels
  • High performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom applications
  • A neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
  • Calipers have 4 pistons and feature a red powder coated finish for added corrosion protection
  • Rotors have a 5 on 4.5"/4.75"/5" multi bolt pattern

Key Specs

MFG. Part #140-9219-DR
PositionRear
Rotor Diameter12.88 Inch
Rotor TypeVented

Need To Know

This Product Will Ship Free

Need help? Call 800.979.0122

Quick and Easy Returns

Details

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

Charts

Specifications

KEY SPECS
MFG. Part #140-9219-DR
PositionRear
Rotor Diameter12.88 Inch
Rotor TypeVented
GENERAL
Bolt PatternMulti: 5 on 4.5" | 4.75" | 5"
Caliper PistonsFour
Caliper FinishPowder Coated
ColorRed
Parking Brake ProvisionYes
Minimum Recommended Wheel Diameter17 Inch
Rotor Thickness1.1"
Offset2.5"
Mount TypeRadial
Total Piston Area1.96 sq. in.
Piston TypeStainless
Pad Area8.20 sq. in.
Pad Volume3.80 cu. in.
Brake Pad CompoundBP-10
Rotor StyleDrilled and Slotted
Caliper TypeForged Narrow Superlite 4R
Rotor FinishBlack E-Coat
Rotor Material TypeSpec-37 Iron
Vane Count48 Curved Vane
BeddedNo
BalancedNo
Hat TypeParking Brake Hat- Standard
Hat FinishBlack E-Coat
Hat Bolt Circle 35 x 5.00
Hat Bolt Circle 25 x 4.75
Hat Bolt Circle 15 x 4.50
Hat Material TypeIron
Hat Offset Dimension1.54"
GTIN Code889545031119
Front Rotor IncludedNo
Rear Rotor IncludedYes
Front Caliper IncludedNo
Rear Caliper IncludedYes
Front Spindles IncludedNo
Master Cylinder IncludedNo
Brake Booster IncludedNo
