Add to Cart
$1,674.39
$1,494.99

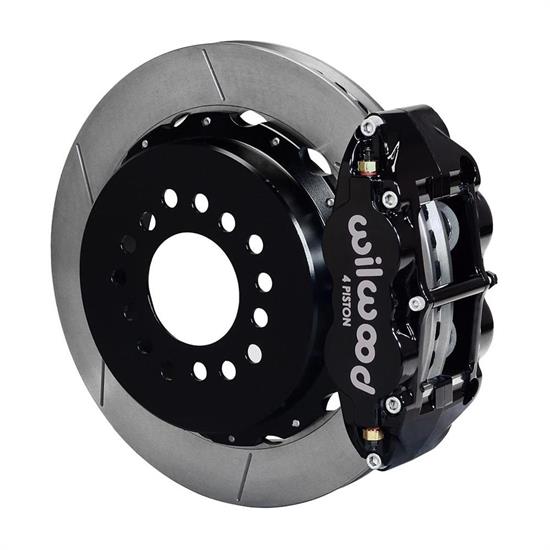

Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off

Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off

Ford 9", Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, 12.88 Inch Rotor Diameter

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
X
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Wilwood 140-9219 FNSL 4R Rear Brake Kit, Big Ford New Style 2.50 Off
Zoomed In Image
We estimate this item will ship on or before August 12th.
Part # 8351409219
Save 10%
$1,494.99
$1,674.39
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
12.88 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
Yes
MFG. Part #:
140-9219
Minimum Recommended Wheel Diameter:
17 Inch
Rotor Thickness:
1.1"
Offset:
2.5"
Mount Type:
Radial
Total Piston Area:
1.96 sq. in.
Piston Type:
Stainless
Pad Area:
8.20 sq. in.
Pad Volume:
3.80 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Slotted
Caliper Type:
Forged Narrow Superlite 4R
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
48 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Parking Brake Hat- Standard
Hat Finish:
Black E-Coat
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Hat Material Type:
Iron
Hat Offset Dimension:
1.54"
GTIN Code:
889545031089

Info

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13" or 14" two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
