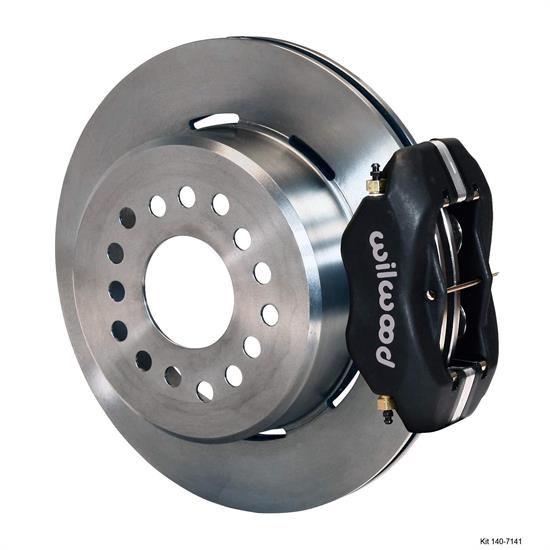

Wilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt Axle
Wilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt Axle
GM 8.875" 12-Bolt Car, Rear Position, Multi: 5 on 4.5" | 4.75" | 5" Bolt Pattern, Powder Coated
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-7141 Rear E-Brake Kit - GM 12 Bolt Axle
X
We estimate this item will ship on or before February 12th.
Part # 8351407141
$738.79
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- The rotors are drilled to accept 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt patterns
- Includes forged billet Dynalite four-piston calipers that have a black powder coated finish for added protection
- Will fit GM 12-bolts applications with 2.81" offset and OE C-Clip axles
- A neatly hidden internal shoe system provides a clean installation with superior static holding power for parking
- Kit includes high friction pads that provide optimized and balanced braking for all types of custom performance street/strip and show machines
Details
Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5" | 4.75" | 5"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
Yes
MFG. Part #:
140-7141
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
.81"
Rotor Shape:
Round
Hardware Included:
Yes
Sold in Quantity:
Kit
Notes:
Includes rotors, calipers, pads, hardware, and parking brake assemblies.
Mount Type:
Lug
Rotor Material Type:
Aluminum
GTIN Code:
889545023404
Front Rotor Included:
No
Rear Rotor Included:
Yes
Front Caliper Included:
No
Rear caliper Included:
Yes
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
WilwoodsFDLI Pro-Series rear disc kits provide a complete solution for popular GM 12-boltrear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
E-brake cables sold separately. Fits GM 12-bolts with 2.81" offset and OE C-Clip axles. Does not support Special End or C-Clip Eliminator modifications.

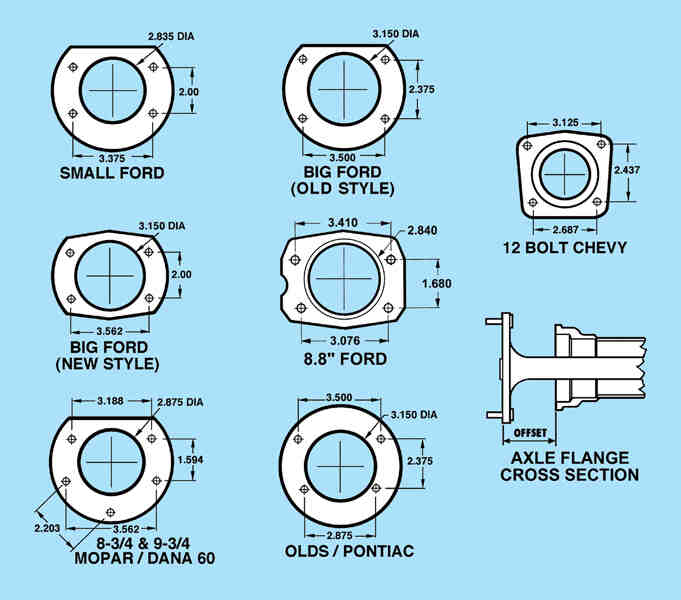

Axle Flange Identification Chart
Click Here for Exploded Installation Specs
Item Details
12-bolt Chevy, 2.81" offset
Application
- Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810"
- Forged billet Dynalite four-piston calipers Piston Area (in²): 3
- 1/8" NPT inlet
- Minimum Wheel Diameter (in): 15
- BP-10 Smart pads
- Aluminum mounting brackets and hardware
- Rotors for each kit are drilled to accept 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt patterns
Notes
Note: Kit fits some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. For OE C-Clip axles only. Does not support Special End or C-Clip Eliminator modifications
Specs
- Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810"
- Forged billet Dynalite four-piston calipers
- Piston Area (in²): 3
- 1/8" NPT inlet
- Minimum Wheel Diameter (in): 15
- BP-10 Smart pads
- Aluminum mounting brackets and hardware
Rotors for each kit are drilled to accept 5 x 4-1/2", 5 x 4-3/4", and 5 x 5" bolt patterns
Charts
835-1407141 Instructions (PDF)
Important Messages
- This item ships directly from the manufacturer. It may take an additional 15 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
