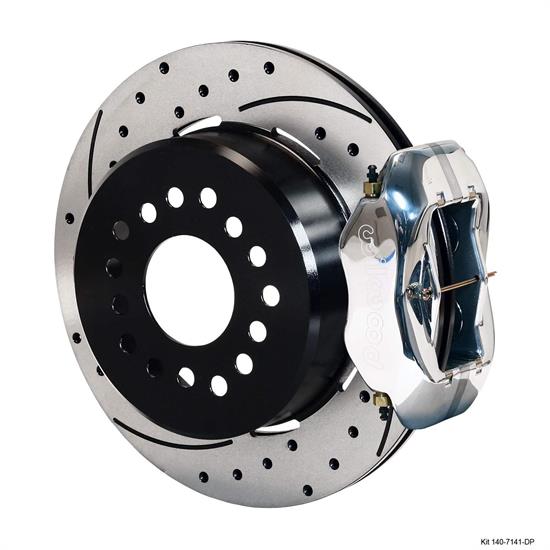

Wilwood 140-7141-DP FDLI Rear Brake Kit, Chevy 12 Bolt w/ C-Clips

$119 Off

#8351407141DP

Wilwood 140-7141-DP FDLI Rear Brake Kit, Chevy 12 Bolt w/ C-Clips

Name: Wilwood 140-7141-DP FDLI Rear Brake Kit, Chevy 12 Bolt w/ C-Clips
Brand: Wilwood
SKU: 8351407141DP
Price: 1443.89 USD
Availability: InStock

Write a Review

Ask a Question

Rotor / Caliper Type:

Drilled / Polished

Undrilled DrilledDrilled / Red Undrilled / Red

$1,443.89

/each

Factory Shipped

$1,562.47

Save $118.58

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

GM 8.875 Inch 12-Bolt Car, Rear Position, Polished

See more details

Key Specs

MFG. Part #	140-7141-DP
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	12.19 Inch

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-7141-DP Details

This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Application

Designed to fit 12 bolt chevy axles flanges with C clips.

Charts

Installation Instructions (PDF)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (8351407141DP)

Wilwood 140-7141-DP Specifications

KEY SPECS
MFG. Part #	140-7141-DP
Brand	Wilwood
Position	Rear
Wheel Bolt Pattern (in.)	5x4.5 in. \| 5x4.75 in.
Wheel Bolt Pattern (mm)	5x114.3 mm \| 5x120.65 mm
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Four
Caliper Finish	Polished
Parking Brake Provision	Yes
Minimum Recommended Wheel Diameter	15 Inch
Rotor Shape	Round
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Front Rotor Included	No
Front Caliper Included	No
Rear Caliper Included	Yes
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	Yes
Rear Rotor Included	Yes
Color	Natural
Bolt Pattern	5 on 4.5" \| 4.75"

GENERAL
GTIN Code	889545023428
Rotor Thickness	0.81"
Offset	2.81"
Axle Flange Offset	2.75"
Mount Type	Lug
Total Piston Area	3 sq. in.
Piston Type	Stainless
Pad Area	6.36 sq. in.
Pad Volume	2.1 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Polished
Caliper Material Type	Forged Aluminum
