#83514014815D

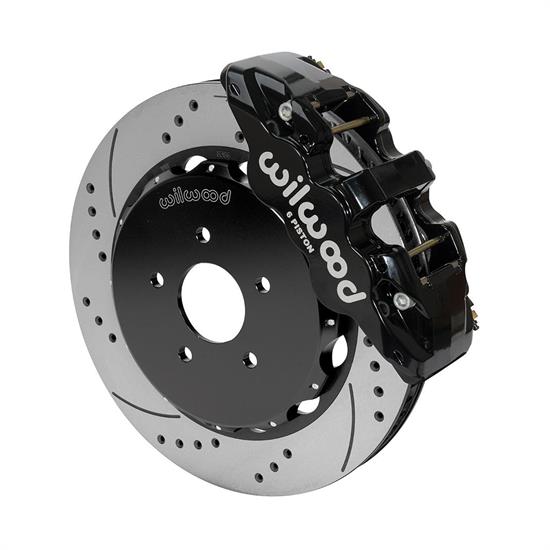

Wilwood 140-14815-D AERO6 Big Brake Front Brake Kit, 14 In, Black
$2,425.61
kit
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before December 27th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Front Position, 5 on 4.5" Bolt Pattern, Powder Coated
See more details
Key Specs
| Position | Front |
| Bolt Pattern | 5 on 4.5" |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-14815-D Details
Wilwood 140-14815-D Details
Wilwood 140-14815-D AERO6 Big Brake Front Brake Kit, 14 In, BlackWilwoodDisc Brake Kits140-14815-D120-13290-BK , 120-13289-BK
- Type: AERO6
- Finish: Black Powder Coat
- Piston Count: 6
- Piston Type: Stainless
- Mount Type: Radial
- Pad Compound: BP-10
Rotors- 160-8397-BK , 160-8396-BK
- Type: GT 72 Curved Vane
- Style: GT Slotted
- Surface Finish: Plain
- Material: Spec-37 Iron
- Outside Diameter: 14"
- Width: 1.25"
- Vane Count: 72 CV
- Design Type: GT
- Dynamically Balanced: Yes
Rotor Hats - 170-9289
- Type: Big Brake Hat - Short Offset
- Material: Aluminum
- Finish Color: Black E-Coat
- Hat Offset: 0.54"
- Bolt Circle 1: 5 x 4.50"
- Stud Diameter BC 1: 0.52"
Application
This brake kit is compatible with the following vehicles:
- Infiniti G35 2007 G35 2 Door RWD
- Infiniti G35 2003 G35 All
- Infiniti G35 2004-2006 G35 All RWD
- Nissan 350Z 2003-2009 w/ 4 Piston Front Calipers
- Nissan 350Z 2003-2009 w/ Single Piston Front Calipers
Charts
Wilwood 140-14815-D Specifications
Wilwood 140-14815-D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-14815-D |
| Brand | Wilwood |
| Position | Front |
| Bolt Pattern | 5 on 4.5" |
| Rotor Diameter | 14 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Color | Black |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 18 Inch |
| Hardware Included | Yes |
| Spindle Type | Factory Disc Spindle |
| Rotor Style | Drilled & Slotted |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 14 Inch |
| Front Caliper Included | Yes |
| Front Caliper Piston Quantity | 6 |
| Front Caliper Finish | Powder Coated |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Rear Rotor Included | No |
| GENERAL | |
| Rotor Thickness | 1.25" |
| Mount Type | Radial |
| Total Piston Area | 4.04 sq. in. |
| Piston Type | Stainless |
| Pad Area | 11.1 sq. in. |
| Pad Volume | 5.2 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Radial |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Spec-37 Iron |
| Vane Count | 72 Curved Vane |
| Bedded | No |
| Balanced | Yes |
| Hat Type | Big Brake Hat - Short Offset |
| Hat Finish | Black E-Coat |
| Hat Bolt Circle 1 | 5 x 4.50" |
| Stud Diameter 2 | 0.52" |
| GTIN Code | 889545084108 |
| Brake Lines Included | Yes |
| Caliper Color | Black |
| Caliper Material Type | Forged Aluminum |
