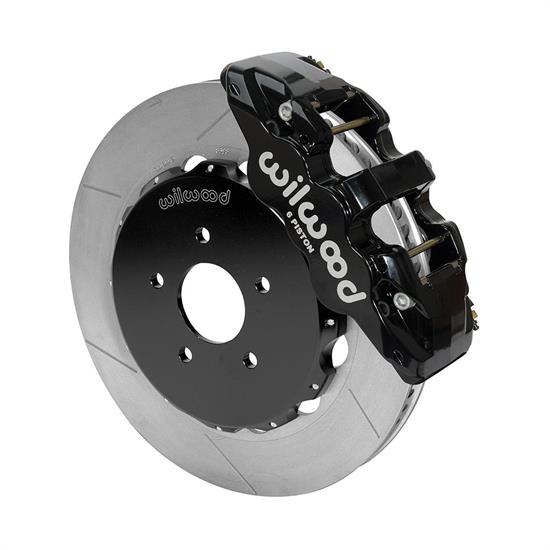

Wilwood 140-14815 AERO6 Big Brake Front Brake Kit, 14 Inch, Black
Wilwood 140-14815 AERO6 Big Brake Front Brake Kit, 14 Inch, Black

Wilwood 140-14815 AERO6 Big Brake Front Brake Kit, 14 Inch, Black

Front Position, 5 on 4.5" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14815 AERO6 Big Brake Front Brake Kit, 14 Inch, Black
Wilwood 140-14815 AERO6 Big Brake Front Brake Kit, 14 Inch, Black
Zoomed In Image
We estimate this item will ship on or before October 19th.
Part # 83514014815
$1,879.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
MFG. Part #:
140-14815
Minimum Recommended Wheel Diameter:
18 Inch
Rotor Thickness:
1.25"
Rotor Shape:
Round
Stud Diameter:
0.52"
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
11.1 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
BP-20
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Short Offset
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.50"
Hat Offset Dimension:
0.52"

Info

These AERO6 calipers from Wilwood were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function.

Schematic (JPEG)

Installation Instructions (PDF)

Kit Summary:

  • Spindle Type: Factory Disc Spindle
  • Mount Type: Radial
  • Caliper Type: 6-black powder coated
  • Rotor Diameter: 14 Inch
  • Wheel Diameter: 18 Inch

Calipers- 120-13290-BK , 120-13289-BK

  • Type: AERO6
  • Finish: Black Powder Coat
  • Piston Count: 6
  • Piston Type: Stainless
  • Mount Type: Radial
  • Pad Compound: BP-20

Rotors- 160-8399 , 160-8398

  • Type: GT 72 Curved Vane
  • Style: GT Slotted
  • Surface Finish: Plain
  • Material: Spec-37 Iron
  • Outside Diameter: 14"
  • Width: 1.25"
  • Vane Count: 72 CV
  • Design Type: GT
  • Dynamically Balanced: Yes

Rotor Hats - 170-9289

  • Type: Big Brake Hat - Short Offset
  • Material: Aluminum
  • Finish Color: Black E-Coat
  • Hat Offset: 0.54"
  • Bolt Circle 1: 5 x 4.50"
  • Stud Diameter BC 1: 0.52"

Application

This brake kit is compatible with the following vehicles:

  • Infiniti G35 2007 G35 2 Door RWD
  • Infiniti G35 2003 G35 All
  • Infiniti G35 2004-2006 G35 All RWD
  • Nissan 350Z 2003-2009 w/ 4 Piston Front Calipers
  • Nissan 350Z 2003-2009 w/ Single Piston Front Calipers

Notes

*Note-This hub offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle. Check the wheel clearance diagram in the installation instructions below to verify you have adequate wheel clearance for this kit.

Some parts are not legal for use in California or other states with similar laws/regulations
