Add to Cart
$764.99

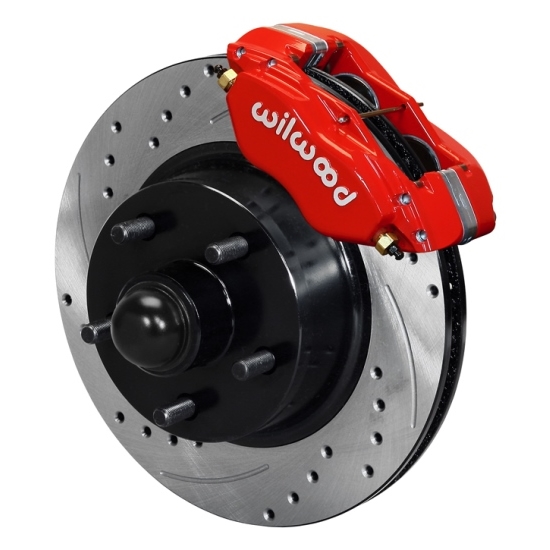

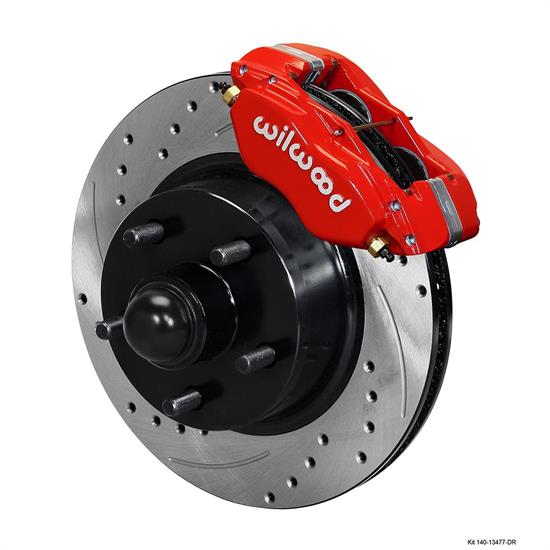

Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit

Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit

Front Position, 5 on 4.5" Bolt Pattern, 11.30 Inch Rotor Diameter, Vented Rotor Type, Red

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
X
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake Kit
Zoomed In Image
We estimate this item will ship on or before November 3rd.
Part # 83514013477DR
$764.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
11.30 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
No
MFG. Part #:
140-13477-DR
Minimum Recommended Wheel Diameter:
14 Inch
Spindle Type:
Factory Disc & Drum Spindles
Mount Type:
Lug
OE Hub Offset:
0"
GTIN Code:
889545020526
Front Rotor Included:
Yes
Front Rotor Diameter:
11.30 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front caliper Piston Quantity:
4
Front Caliper Finish:
Powder Coated Red
Rear caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

Wilwood 140-13477-DR Classic Series Dynalite Front Disc Brake KitWilwoodDisc Brake Kits140-13477-DR120-13529-RD
  • Type: Forged Dynalite-M
  • Finish: Red Powder Coat
  • Piston Count: 4
  • Piston Type: Stainless
  • Mount Type: Lug
  • Brake Pad Compound: BP-10
  • Rotor: 160-13483-BK, 160-13482-BK
    • Type: 1 Pc Hub and Rotor
    • Style: SRP Drilled and Slotted
    • Surface Finish: Black Electro Coat
    • Material: Iron
    • Diameter: 11.3"
    • Width: .94"
    • Vane Count: Vented
    • Design Type: SRP-BLK
  • Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.

    Vehicle Applications:

    • Ford Fairlane 1970-1971 Disc Brake Spindle
    • Ford Fairlane 1970 Drum Brake Front Spindle
    • Ford Falcon 1970 Disc Brake Spindle
    • Ford Falcon 1970 Drum Brake Front from 8/25/69
    • Ford Maverick 1970 Drum Brake Front from 8/25/69
    • Ford Maverick 1971-1974 Drum Brake Front Spindle
    • Ford Mustang 1970 Disc Brake Front Except GT350 & 500
    • Ford Mustang 1973 Disc Brake Front Spindle
    • Ford Mustang 1971-1972 Disc Brake Spindle
    • Ford Mustang 1970-1973 Drum Brake Front Spindle
    • Ford Ranchero 1970-1971 Disc Brake Spindle
    • Ford Ranchero 1970 Drum Brake Front Spindle
    • Ford Torino 1970-1971 Disc Brake Spindle
    • Ford Torino 1970-1971 Drum Brake Front Spindle
    • Mercury Comet 1970-1971 Disc Brake Spindle
    • Mercury Comet 1970-1973 Drum Brake Front Spindle
    • Mercury Cougar 1973 Disc Brake Front Spindle
    • Mercury Cougar 1970-1972 Disc Brake Spindle
    • Mercury Cougar 1970-1972 Drum Brake Front Spindle
    • Mercury Cyclone 1970 Disc Brake Spindle
    • Mercury Cyclone 1970 Drum Brake Front Spindle
    • Mercury Montego 1970-1971 Disc Brake Spindle
    • Mercury Montego 1970-1971 Drum Brake Front Spindle



    Charts

    Assembly Instructions (PDF)

    Wheel Clearance Diagram (PDF)

    Important Messages:

    • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
    • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
    • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
    Some parts are not legal for use in California or other states with similar laws/regulations
