Wilwood 140-13477-D Classic Series Dynalite Front Disc Brake Kit, 11 Inch

$114 Off

Wilwood 140-13477-D Classic Series Dynalite Front Disc Brake Kit, 11 Inch
Wilwood

|

#83514013477D

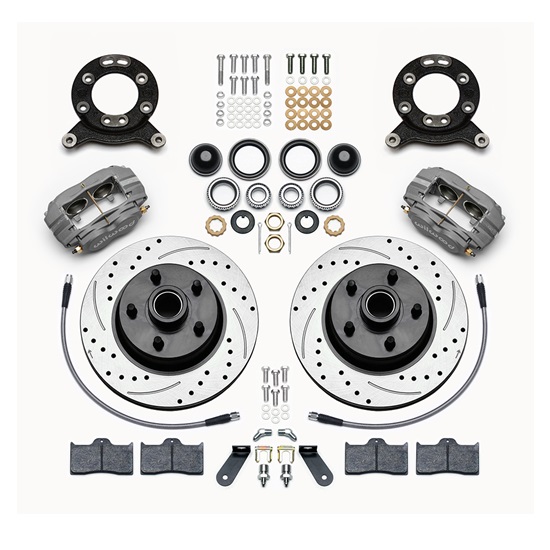

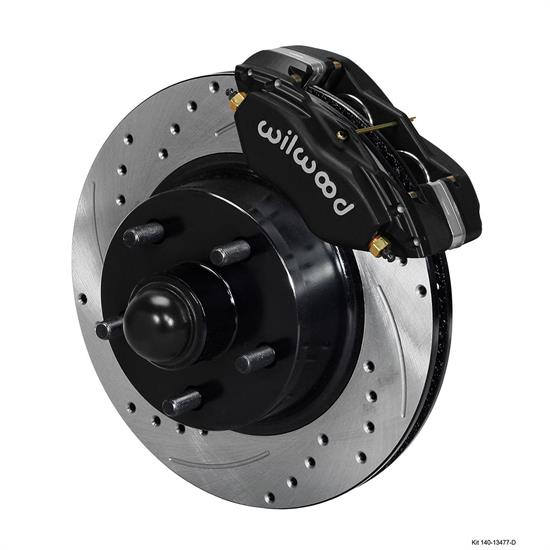

Wilwood 140-13477-D Classic Series Dynalite Front Disc Brake Kit, 11 Inch

Rotor / Caliper Type:

Drilled

UndrilledDrilled / RedUndrilled / Red

$951.69

/each

Factory Shipped

$1,065.89

Save $114.20


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 11.29 Inch Rotor Diameter, Anodized

    See more details

    Key Specs

    MFG. Part #140-13477-D
    PositionFront
    Wheel Bolt Pattern (in.)5x4.5 in.
    Wheel Bolt Pattern (mm)5x114.3 mm
    Rotor Diameter11.29 Inch
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Wilwood 140-13477-D Details

    Wilwood 140-13477-D Classic Series Dynalite Front Disc Brake Kit, 11 InchWilwoodDisc Brake Kits140-13477-D120-13551

    • Type: Forged Dynalite-M
    • Finish: Black Anodized
    • Piston Count: 4
    • Piston Type: Stainless
    • Mount Type: Lug
    • Brake Pad Compound: BP-10
    • Rotor: 160-13483-BK, 160-13482-BK
      • Type: 1 Pc Hub and Rotor
      • Style: SRP Drilled and Slotted
      • Surface Finish:Black Electro Coat
      • Material: Iron
      • Diameter: 11.3"
      • Width: .94"
      • Vane Count: Vented
      • Design Type: SRP-BLK

    Note: Brake Kits are designed to fit OE Chevy Factory Disc Spindles, Factory Drum Spindles. Contact Speedway Motors if you are not using a factory spindle.

    Vehicle Applications:



    • Ford Fairlane 1970-1971 Disc Brake Spindle
    • Ford Fairlane 1970 Drum Brake Front Spindle
    • Ford Falcon 1970 Disc Brake Spindle
    • Ford Falcon 1970 Drum Brake Front from 8/25/69
    • Ford Maverick 1970 Drum Brake Front from 8/25/69
    • Ford Maverick 1971-1974 Drum Brake Front Spindle
    • Ford Mustang 1970 Disc Brake Front Except GT350 & 500
    • Ford Mustang 1973 Disc Brake Front Spindle
    • Ford Mustang 1971-1972 Disc Brake Spindle
    • Ford Mustang 1970-1973 Drum Brake Front Spindle
    • Ford Ranchero 1970-1971 Disc Brake Spindle
    • Ford Ranchero 1970 Drum Brake Front Spindle
    • Ford Torino 1970-1971 Disc Brake Spindle
    • Ford Torino 1970-1971 Drum Brake Front Spindle
    • Mercury Comet 1970-1971 Disc Brake Spindle
    • Mercury Comet 1970-1973 Drum Brake Front Spindle
    • Mercury Cougar 1973 Disc Brake Front Spindle
    • Mercury Cougar 1970-1972 Disc Brake Spindle
    • Mercury Cougar 1970-1972 Drum Brake Front Spindle
    • Mercury Cyclone 1970 Disc Brake Spindle
    • Mercury Cyclone 1970 Drum Brake Front Spindle
    • Mercury Montego 1970-1971 Disc Brake Spindle
    • Mercury Montego 1970-1971 Drum Brake Front Spindle







    Charts

    Specs

    Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

    Wilwood 140-13477-D Specifications

    KEY SPECS
    MFG. Part #140-13477-D
    BrandWilwood
    PositionFront
    Wheel Bolt Pattern (in.)5x4.5 in.
    Wheel Bolt Pattern (mm)5x114.3 mm
    Rotor Diameter11.29 Inch
    Rotor TypeVented
    Caliper PistonsFour
    Caliper FinishAnodized
    Parking Brake ProvisionNo
    Minimum Recommended Wheel Diameter14 Inch
    Rotor ShapeRound
    Hardware IncludedYes
    Rotor StyleDrilled & Slotted
    Spindle TypeFactory Disc & Drum Spindles
    Front Rotor IncludedYes
    Front Rotor Diameter11.30 Inch
    Front Caliper IncludedYes
    Rear Caliper IncludedNo
    Front Spindles IncludedNo
    Master Cylinder IncludedNo
    Brake Booster IncludedNo
    Brake Hoses IncludedYes
    Rear Rotor IncludedNo
    Bolt Pattern5 on 4.5"
    ColorGray
    Front Caliper Piston Quantity4
    Front Caliper FinishAnodized
    GENERAL
    GTIN Code889545020519
    Rotor Thickness0.94"
    Mount TypeLug
    OE Hub Offset0"
    Caliper TypeLug
    Rotor Material TypeIron
    Brake Lines IncludedYes
    Caliper ColorGray
    Caliper Material TypeForged Aluminum
