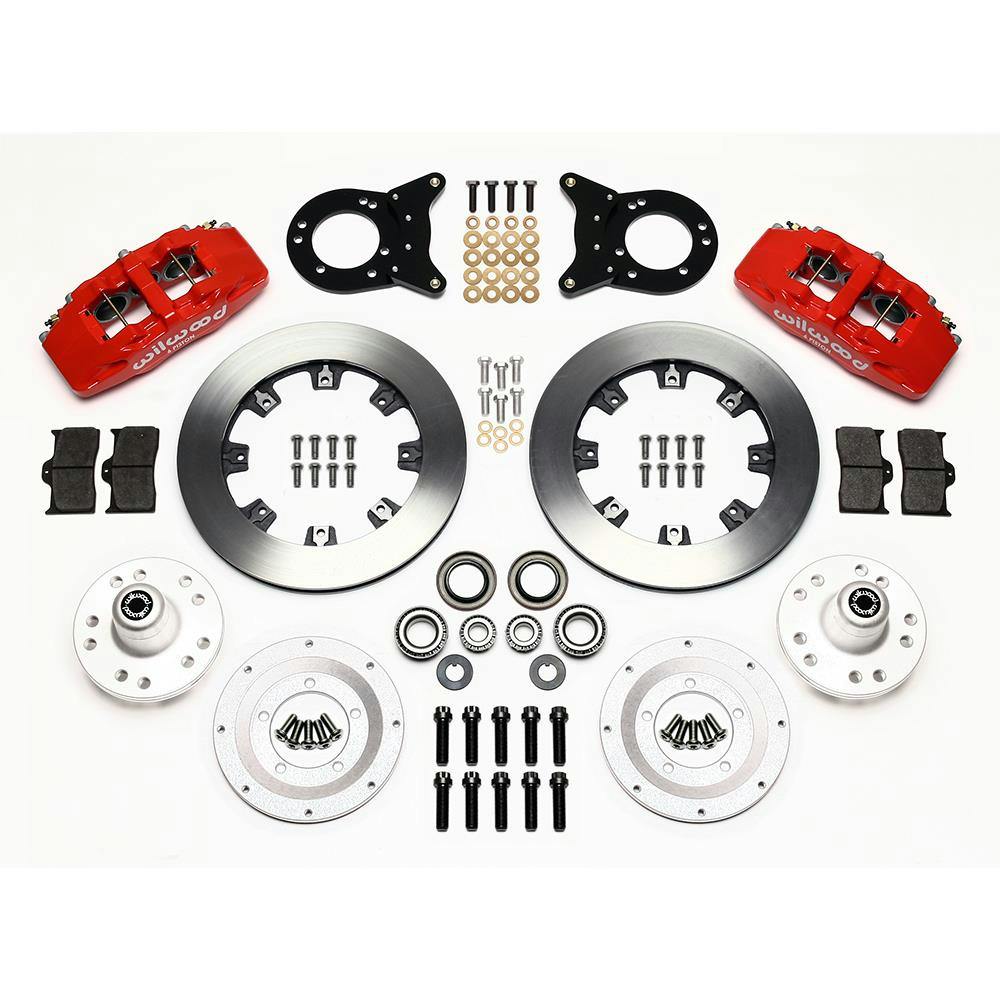

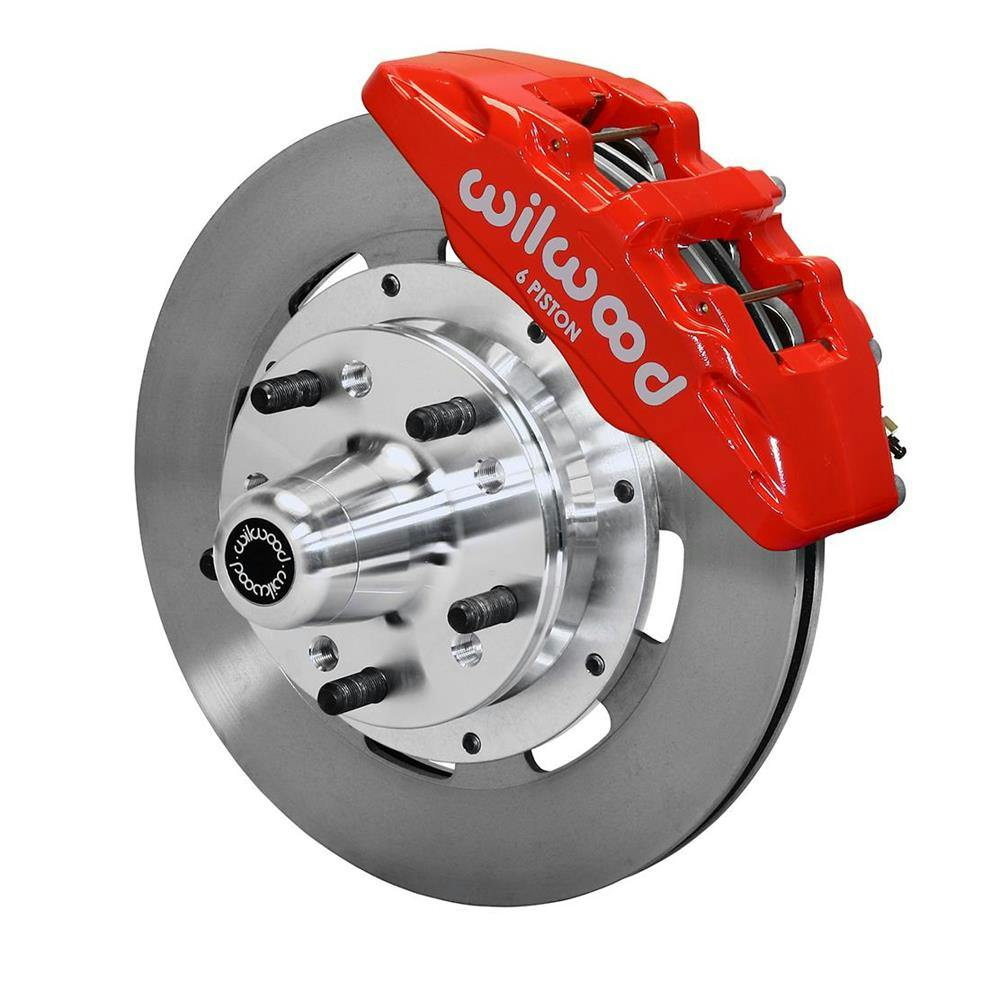

Wilwood 140-12945-R Ford/Mercury 6 Big Front Brake Kit

$166 Off

#83514012945R

Wilwood 140-12945-R Ford/Mercury 6 Big Front Brake Kit

DynaPro 6 forged billet calipers are combined
Rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods
The enhanced brake capacity and pad performance of the six piston calipers provide an inter

Rotor / Caliper Type:

Undrilled / Red

$1,382.14

/each

Factory Shipped

$1,547.99

Save $165.85

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Red, Red

DynaPro 6 forged billet calipers are combined
Rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods
The enhanced brake capacity and pad performance of the six piston calipers provide an inter

See more details

Key Specs

MFG. Part #	140-12945-R
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12945-R Details

DynaPro 6 forged billet calipers are combined with 12
19” diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods
The enhanced brake capacity and pad performance of the six piston calipers provide an inter

Application

1970 Ford Fairlane Disc Brake Spindle
1970 Ford Fairlane Drum Brake Front Spindle
1970 Ford Falcon Disc Brake Spindle
1970 Ford Falcon Drum Brake Front from 8/25/69
1970 Ford Maverick Drum Brake Front from 8/25/69
1970 Ford Mustang Disc Brake Front Except GT350 & 500
1970 Ford Mustang Drum Brake Front Spindle
1970 Ford Ranchero Disc Brake Spindle
1970 Ford Ranchero Drum Brake Front Spindle
1970 Ford Torino Disc Brake Spindle
1970 Ford Torino Drum Brake Front Spindle
1970 Mercury Comet Disc Brake Spindle
1970 Mercury Comet Drum Brake Front Spindle
1970 Mercury Cougar Disc Brake Spindle
1970 Mercury Cougar Drum Brake Front Spindle
1970 Mercury Cyclone Disc Brake Spindle
1970 Mercury Cyclone Drum Brake Front Spindle
1970 Mercury Montego Disc Brake Spindle
1970 Mercury Montego Drum Brake Front Spindle
1971 Ford Maverick Drum Brake Front Spindle
1971 Ford Mustang Disc Brake Spindle
1971 Ford Mustang Drum Brake Front Spindle
1971 Ford Ranchero Disc Brake Spindle
1971 Ford Torino Disc Brake Spindle
1971 Ford Torino Drum Brake Front Spindle
1971 Mercury Comet Disc Brake Spindle
1971 Mercury Comet Drum Brake Front Spindle
1971 Mercury Cougar Disc Brake Spindle
1971 Mercury Cougar Drum Brake Front Spindle
1971 Mercury Montego Disc Brake Spindle
1971 Mercury Montego Drum Brake Front Spindle
1972 Ford Maverick Drum Brake Front Spindle
1972 Ford Mustang Disc Brake Spindle
1972 Ford Mustang Drum Brake Front Spindle
1972 Mercury Comet Drum Brake Front Spindle
1972 Mercury Cougar Disc Brake Spindle
1972 Mercury Cougar Drum Brake Front Spindle
1973 Ford Maverick Drum Brake Front Spindle
1973 Ford Mustang Disc Brake Front Spindle
1973 Ford Mustang Drum Brake Front Spindle
1973 Mercury Comet Drum Brake Front Spindle
1973 Mercury Cougar Disc Brake Front Spindle
1974 Ford Maverick Drum Brake Front Spindle

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012945R)

CA Prop 65

Wilwood 140-12945-R Specifications

KEY SPECS
MFG. Part #	140-12945-R
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Color	Red
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Hardware Included	Yes
Rotor Style	Plain Face
Spindle Type	Factory Disc & Drum Spindles
Front Rotor Included	Yes
Front Rotor Diameter	12.19 in./309.63mm
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Brake Hoses Included	No
Rear Rotor Included	No
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Piston Quantity	Six

GENERAL
Sold in Quantity	Kit
GTIN Code	889545018295
Notes	Includes 1/2 in.-20 wheel studs.
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Offset	0.09"
Mount Type	Lug
OE Hub Offset	0.09"
Total Piston Area	5.06 sq. in.
Piston Type	Stainless
Pad Area	7.30 sq. in.
Pad Volume	2.4 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Natural
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Front Rotor Thickness	.81"
Front Caliper Material	Forged Billet Aluminum
Front Caliper Color	Red
Brake Lines Included	No
Front Rotor Style	Solid
Caliper Color	Red
Caliper Material Type	Forged Aluminum
Front Rotor Construction	Vented
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Fitment

1970 Ford Fairlane

1970 Ford Falcon

1970-1974 Ford Maverick

1970-1973 Ford Mustang

1970-1971 Ford Ranchero

1970-1971 Ford Torino

1971-1973 Mercury Comet

1970-1973 Mercury Cougar

1970 Mercury Cyclone

1970-1971 Mercury Montego
