$129 Off
$129 Off
|
#83514012945DR
$1,572.83
/each
Factory Shipped
$1,701.99
Save $129.16
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle

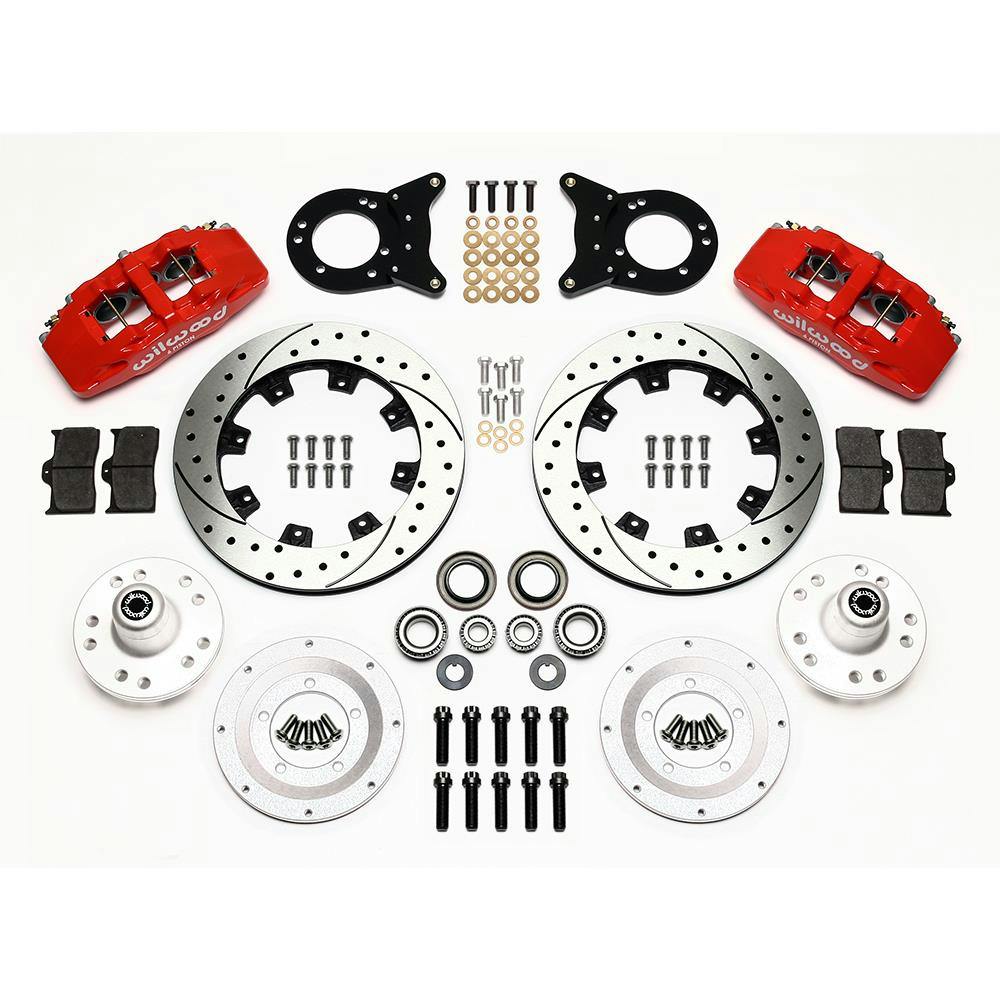

Front Position, 12.19 Inch Rotor Diameter, Red, Red
| MFG. Part # | 140-12945-DR |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyApplication
Specs
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-12945-DR |
| Brand | Wilwood |
| Position | Front |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Six |
| Caliper Finish | Powder Coated |
| Parking Brake Provision | No |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Rotor Shape | Round |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Spindle Type | Factory Disc & Drum Spindles |
| Front Rotor Included | Yes |
| Front Rotor Diameter | 12.19 in./309.63mm |
| Front Caliper Included | Yes |
| Rear Caliper Included | No |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Brake Hoses Included | No |
| Rear Rotor Included | No |
| Color | Red |
| Bolt Pattern | 5 on 4.5" | 4.75" |
| Front Caliper Piston Quantity | Six |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 889545018288 |
| Notes | Includes 1/2 in.-20 wheel studs. |
| Rotor Thickness | 0.81" |
| Stud Diameter | 1/2-20 |
| Offset | 0.09" |
| Mount Type | Lug |
| OE Hub Offset | 0.09" |
| Total Piston Area | 5.06 sq. in. |
| Piston Type | Stainless |
| Pad Area | 7.30 sq. in. |
| Pad Volume | 2.4 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Black E-Coat |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| Front Rotor Thickness | .81" |
| Front Caliper Material | Forged Billet Aluminum |
| Front Caliper Color | Red |
| Brake Lines Included | No |
| Front Rotor Style | Drilled and Slotted |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
| Front Rotor Construction | Vented |
| Stud Diameter 2 | 1/2-20 |
Be the first to ask a question.
1970 Ford Fairlane
1970 Ford Falcon
1970-1974 Ford Maverick
1970-1973 Ford Mustang
1970-1971 Ford Ranchero
1970-1971 Ford Torino
1971-1973 Mercury Comet
1970-1973 Mercury Cougar
1970 Mercury Cyclone
1970-1971 Mercury Montego
