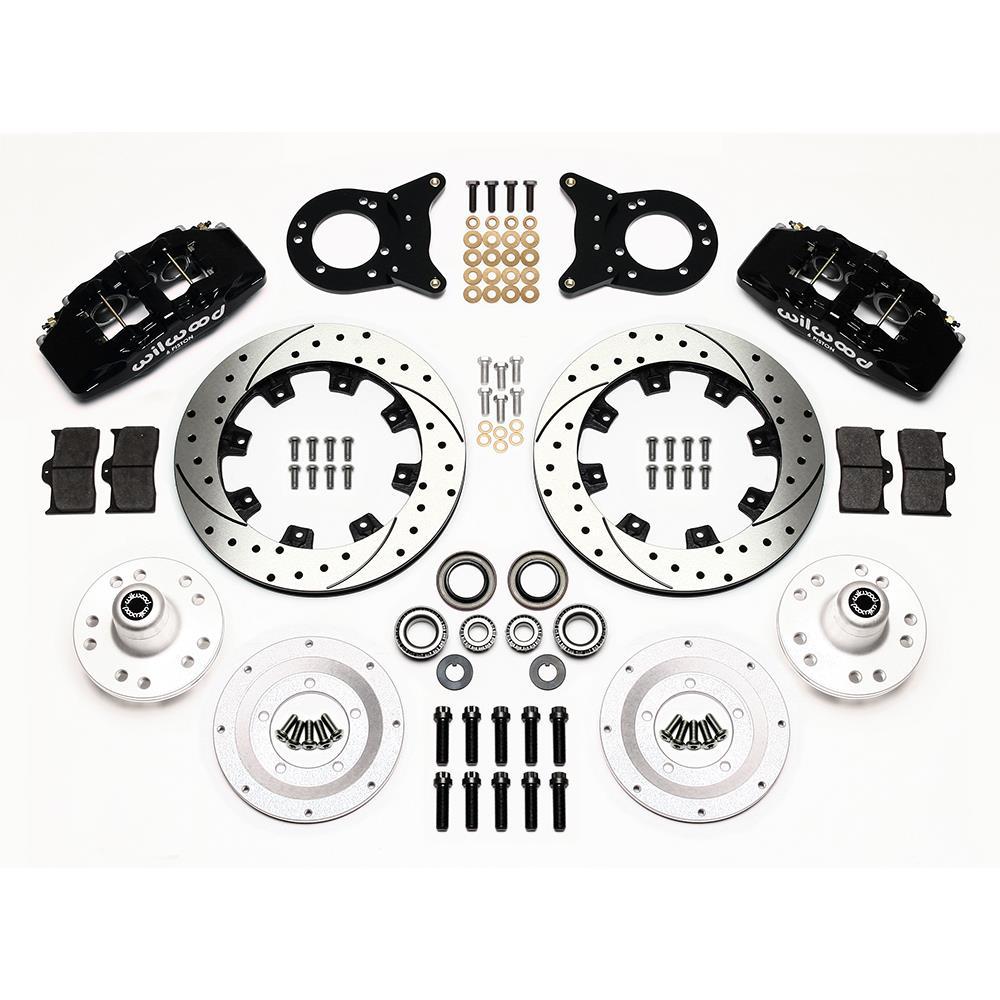

Wilwood 140-12945-D DP6 12.19 Front Disc Brake Kit, 70-74 Ford/Mercury

$182 Off

#83514012945D

Wilwood 140-12945-D DP6 12.19 Front Disc Brake Kit, 70-74 Ford/Mercury

This front disk brake kit from Wilwood is specially designed for the 70-74 Ford/Mercury
Features DynaPro 6 forged billet caliper with a black powder coated finish for added protection
Rotors have a 12.19 diameter and are drilled and slotted for superior heat dissipation

Rotor / Caliper Type:

Drilled

$1,519.64

/each

Factory Shipped

$1,701.99

Save $182.35

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Front Position, 12.19 Inch Rotor Diameter, Black, Black

This front disk brake kit from Wilwood is specially designed for the 70-74 Ford/Mercury
Features DynaPro 6 forged billet caliper with a black powder coated finish for added protection
Rotors have a 12.19 diameter and are drilled and slotted for superior heat dissipation
Engineered to fit factory disc and drum spindles

See more details

Key Specs

MFG. Part #	140-12945-D
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 140-12945-D Details

DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an inter

Application

1970 Ford Fairlane Disc Brake Spindle
1970 Ford Fairlane Drum Brake Front Spindle
1970 Ford Falcon Disc Brake Spindle
1970 Ford Falcon Drum Brake Front from 8/25/69
1970 Ford Maverick Drum Brake Front from 8/25/69
1970 Ford Mustang Disc Brake Front Except GT350 & 500
1970 Ford Mustang Drum Brake Front Spindle
1970 Ford Ranchero Disc Brake Spindle
1970 Ford Ranchero Drum Brake Front Spindle
1970 Ford Torino Disc Brake Spindle
1970 Ford Torino Drum Brake Front Spindle
1970 Mercury Comet Disc Brake Spindle
1970 Mercury Comet Drum Brake Front Spindle
1970 Mercury Cougar Disc Brake Spindle
1970 Mercury Cougar Drum Brake Front Spindle
1970 Mercury Cyclone Disc Brake Spindle
1970 Mercury Cyclone Drum Brake Front Spindle
1970 Mercury Montego Disc Brake Spindle
1970 Mercury Montego Drum Brake Front Spindle
1971 Ford Maverick Drum Brake Front Spindle
1971 Ford Mustang Disc Brake Spindle
1971 Ford Mustang Drum Brake Front Spindle
1971 Ford Ranchero Disc Brake Spindle
1971 Ford Torino Disc Brake Spindle
1971 Ford Torino Drum Brake Front Spindle
1971 Mercury Comet Disc Brake Spindle
1971 Mercury Comet Drum Brake Front Spindle
1971 Mercury Cougar Disc Brake Spindle
1971 Mercury Cougar Drum Brake Front Spindle
1971 Mercury Montego Disc Brake Spindle
1971 Mercury Montego Drum Brake Front Spindle
1972 Ford Maverick Drum Brake Front Spindle
1972 Ford Mustang Disc Brake Spindle
1972 Ford Mustang Drum Brake Front Spindle
1972 Mercury Comet Drum Brake Front Spindle
1972 Mercury Cougar Disc Brake Spindle
1972 Mercury Cougar Drum Brake Front Spindle
1973 Ford Maverick Drum Brake Front Spindle
1973 Ford Mustang Disc Brake Front Spindle
1973 Ford Mustang Drum Brake Front Spindle
1973 Mercury Comet Drum Brake Front Spindle
1973 Mercury Cougar Disc Brake Front Spindle
1974 Ford Maverick Drum Brake Front Spindle

Charts

Installation Instructions (PDF)

Wheel Clearance Diagram (JPG)

Specs

Our rotors are machined and fully e-coated, just like the rotor hats. This is a protectant coating the prohibits surface rust from forming on the exposed surfaces. Once the parts are installed and being bedded in, the brake pad friction and caliper pressure will remove the coating at the spot the brake pads touch. This will expose the silver iron material underneath.

Guides & Documents

Disc Brake Kits Installation Instructions (83514012945D)

Wilwood 140-12945-D Specifications

KEY SPECS
MFG. Part #	140-12945-D
Brand	Wilwood
Position	Front
Rotor Diameter	12.19 Inch
Rotor Type	Vented
Caliper Pistons	Six
Caliper Finish	Powder Coated
Color	Black
Parking Brake Provision	No
Minimum Recommended Wheel Diameter	15 Inch
Hardware Included	Yes
Rotor Style	Drilled & Slotted
Spindle Type	Factory Disc & Drum Spindles
Front Rotor Included	Yes
Front Rotor Diameter	12.19 Inch
Front Caliper Included	Yes
Rear Caliper Included	No
Front Spindles Included	No
Master Cylinder Included	No
Brake Booster Included	No
Rear Rotor Included	No
Front Caliper Piston Quantity	6
Bolt Pattern	5 on 4.5" \| 4.75"
Front Caliper Finish	Powder Coated

GENERAL
GTIN Code	889545018271
Rotor Thickness	0.81"
Stud Diameter	1/2-20
Mount Type	Lug
OE Hub Offset	0.09"
Total Piston Area	5.06 sq. in.
Piston Type	Stainless
Pad Area	7.30 sq. in.
Pad Volume	2.4 cu. in.
Brake Pad Compound	BP-10
Caliper Type	Lug
Rotor Finish	Black E-Coat
Rotor Material Type	Iron
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Brake Lines Included	No
Caliper Color	Black
Caliper Material Type	Forged Aluminum
Stud Diameter 2	1/2-20

Ratings & Reviews

Be the first to write a review.

Fitment

1970 Ford Fairlane

1970 Ford Falcon

1970-1974 Ford Maverick

1970-1973 Ford Mustang

1970-1971 Ford Ranchero

1970-1971 Ford Torino

1971-1973 Mercury Comet

1970-1973 Mercury Cougar

1970 Mercury Cyclone

1970-1971 Mercury Montego
