Product Summary

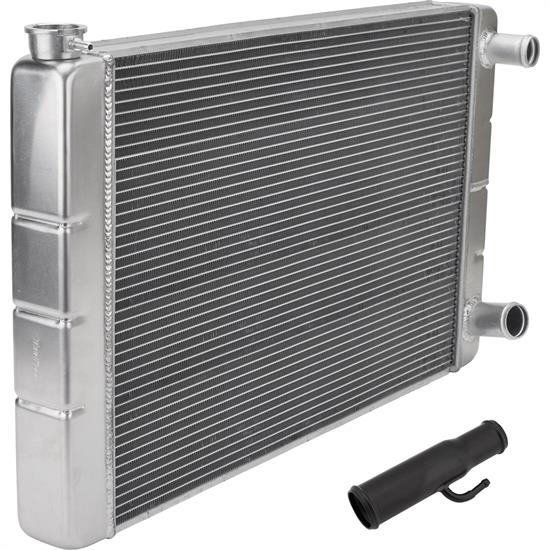

Universal Fit, Double Pass Radiator Style, Aluminum

  • Features one 1.25" end to match the water pump outlet and one 1.5" end to match the upper radiator inlet
  • Has an integrated streamlined 1/4" 90° hose barb fitting for the steam line
  • Comes with a black finish to blend in with radiator hoses
  • Radiator that the maximum amount of fins per inch for greater heat transfer
  • Made using no cheap epoxy glue or crimped in gaskets

Comes as a Kit

Key Specs

MFG. Part #916-04057
Radiator StyleDouble Pass
Radiator Flow DirectionCrossflow
Material TypeAluminum
FinishNatural

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

If you've decided to add modern power to your ride using an LS series engine, this LS Swap Radiator Kit is the perfect way to protect your investment and ensure proper cooling system function.

We wanted to offer a solution for the budget-minded builder that also kept aesthetics in mind. Instead of an inline hose adapter with an NPT bung for you to plumb in your own fittings, which can look like junkyard parts hacked together and is susceptible to leaks, we created a unique LS Steam Vent Radiator Hose Adapter. This adapter makes quick work of several LS swap radiator hose issues with one simple piece. It features one 1.25" end to match the water pump outlet, one 1.5" end to match the upper radiator inlet, an integrated streamlined 1/4" 90° hose barb fitting for the steam line, and a black finish to blend in with radiator hoses. The combination of this adapter with one of our professional-quality aluminum racing radiators means your search for an affordable and effective LS conversion radiator solution is over.

LS Steam Vent Radiator Hose Adapter Features

  • 1.25" end - matches water pump outlet size
  • 1.50" end - matches upper radiator inlet size
  • Integrated 1/4" 90° hose barb fitting for a streamlined look
  • Black finish blends in with radiator hoses

This LS1 Swap Radiator Kit features our double-pass universal aluminum radiator. These high-performance radiators feature 100% all-aluminum construction. The furnace-brazed core increases durability compared to other radiators with epoxy-glued or crimped-gasket sealing methods. Two rows of 1-inch aluminum tubes allow this radiator to out-cool a similarly sized radiator with five rows of copper tubes. A rugged billet aluminum filler neck with screw-in bleed is also included. Learn more about the quality and features of this high-performance double-pass radiator

This radiator is designed for Chevy applications with both water necks on the passenger side.

Universal Aluminum Radiator Features:

  • Passenger side upper inlet, 1.50"
  • Passenger side lower outlet, 1.75"
  • All-aluminum, furnace-brazed construction
  • No cheap epoxy glue or crimped in gaskets
  • Maximum amount of fins per inch allows greater heat transfer
  • Two rows of 1" aluminum tubes (out-cools five rows of copper)
  • Billet filler necks

Available in 22", 24", 26",  28", or 31" widths (measurements include tanks - suggested sizes for common applications listed below in "Applications")

Unlike the older SBC or BBC, the LS engine family features a thermostat that is located in the water pump housing. While this design allows for temperature and flow to be regulated before the coolant enters your engine, having the thermostat at a low point means that any air in the cooling system can easily get trapped in your engine. Air bubbles in cooling passages disrupt coolant flow, create hot-spots, and can cause overheating issues, pre-ignition, and detonation. None of these are things that your new (or used) LS will stand up to for very long without damage. Fortunately, there are steam ports in the heads that allow this trapped air to flow away from critical cooling locations to a high point outside of the cylinder heads. Since these engines utilize a closed pressurized cooling system, the steam tubes must be connected back into it at some point. Stock radiators in vehicles produced with LS engines feature a port to connect the steam lines to, and a direct-fit LS swap radiator with steam port provision is likely available for your ride - at a high price tag. Our kit allows you to spend less of your hard-earned cash on a cooling solution without sacrificing appearance under the hood.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article, Radiator Cooling Performance.

If your application does not require additional cooling efficiency of a double-pass radiator, we offer 91604056 which features a single pass radiator.

Aluminum Fan Shroud Kits for mechanical fans available:

For 22" radiator, fan shroud kit # 917-4020

For 26" radiator, fan shroud kit # 917-4021

For 28" radiator, fan shroud kit # 917-4022

For 31" radiator, fan shroud kit # 917-4023

Aluminum Fan Shroud Kits for mechanical fans available:

For 22" radiator, fan shroud kit # 917-4020

For 26" radiator, fan shroud kit # 917-4021

For 28" radiator, fan shroud kit # 917-4022

For 31" radiator, fan shroud kit # 917-4023

Application

Recommended Sizes for Common Applications:

**Please note** These are not direct-fit radiators, and will generally require some modification to the vehicle for proper fitment

1966-82 C3 Corvette - Varies by year, see below

  • 1966-68 - 28" Width
  • 1969-82 - 31" Width

1967-91 Chevy C/K Trucks - 31" Width

  • 1967-72 Chevy C10
  • 1973-87 Chevy Squarebody C10
  • 1969-91 Chevy K5 Blazer

1982-93 Chevy S-Series - 31" Width

  • 1982-93 Chevy S10
  • 1982-93 GMC S15
  • 1982-93 GMC Sonoma

1982-92 GM F-Body - 31" Width

  • 1982-92 Chevy Camaro
  • 1982-92 Pontiac Firebird

1982-88 GM G-Body - 31" Width

  • 1982-87 Buick Regal
  • 1982-87 Chevy El Camino
  • 1982-83 Chevy Malibu
  • 1982-88 Chevy Monte Carlo
  • 1982-87 GMC Caballero
  • 1982-88 Oldsmobile Cutlass Supreme
  • 1982-83 Oldsmobile Cutlass Cruiser
  • 1983 Pontiac LeMans (Canada Only)
  • 1982-86 Pontiac Bonneville
  • 1982-87 Pontiac Grand Prix

1979-93 Ford Mustang - 28" Width

1973-86 Jeep CJ - 24" Width

  • 1976-86 CJ-7
  • 1981-86 CJ-8 Scrambler

Direct-Fit Options:

91604059

  • 1966-70 Impala
  • 1966-67 Chevelle/Malibu

91604058

  • 1968-72 Chevelle/Malibu
  • 1970-77 Monte Carlo
  • 1974-77 Buick Regal
  • 1966-77 Olds Cutlass
  • 1966-77 Pontiac Grand Prix
  • 1968-77 Pontiac LeMans/GTO
  • 1972-79 Chevy Impala, Caprice, Bel Air, and Biscayne
  • 1973-90 Chevy/GMC Truck

91604061

  • 1967-69 Camaro

91604060

  • 1970-81 Camaro
  • 1968-79 Nova

NOTE: Applications for reference only - measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks.

Specifications

KEY SPECS
MFG. Part #916-04057
BrandSpeedway Motors
Radiator StyleDouble Pass
Radiator Flow DirectionCrossflow
Material TypeAluminum
FinishNatural
GENERAL
Inlet LocationUpper passenger side
Outlet LocationLower passenger side
Row Quantity2
Tube Size1.00"
Overall Height Range19.00" to 19.99"
Overall Height19.00"
Overall Thickness3.00"
Core Thickness2.25"
Cooling FanNot Included
Transmission CoolerNo
Shroud IncludedNo
Filler Neck Height1.00"
Inlet Size1.50
Fan IncludedNo
Sold in QuantityKit
