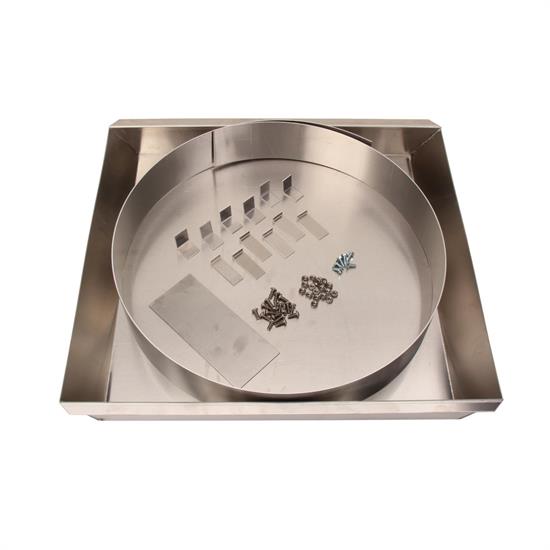

Aluminum Fan Shroud Kit for 22 Inch Radiator, Engine Driven Fan
Aluminum Fan Shroud Kit for 22 Inch Radiator, Engine Driven Fan

Aluminum Fan Shroud Kit for 22 Inch Radiator, Engine Driven Fan

Universal Fit

3 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Aluminum Fan Shroud Kit for 22 Inch Radiator, Engine Driven Fan
Aluminum Fan Shroud Kit for 22 Inch Radiator, Engine Driven Fan
Zoomed In Image
Part # 9174020
$64.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Sold in Quantity:
Each
Notes:
ALUMINUM FAN SHROUD 19.5" TALL X 16 3/4" WIDE x 2.5" thick
MFG. Part #:
9174020

Info

These universal fit aluminum fan shroud kits can be built to fit many applications with a belt-driven fan. The adjustable collar will accommodate 15"-20" fan diameters.

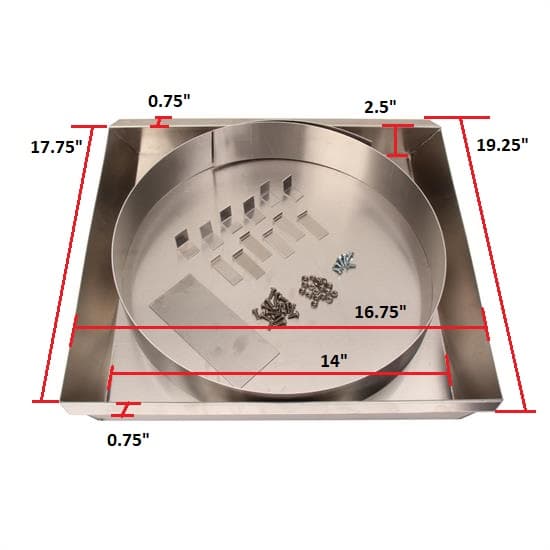

Measures outside spec of 19-1/2" tall x 16-3/4" wide x 2.5" deep with inside spec of 17-3/4" tall x 13" wide. Works well with Speedway & Afco 24" wide radiators and will work with the Speedway & Afco 22" wide radiators with slight trimming of the width of the shroud.

  • Made for exact fit of many Muscle Car and Hotrod radiators
  • Allows the installer the choice of off center, side-to-side and above the radiator fan positioning
  • For crossflow or downflow radiator mounting
  • Includes fully-formed shroud of .063" lightweight aircraft aluminum
  • 3" trimmable collar
  • Adjustable collar; adjusts for 15-20" fan diameters
  • Includes all the necessary hardware and mounting instructions
  • Outside measures 19.5" tall x 16-3/4" wide x 2.5" deep
  • Inside measures 17-3/4" tall x 13" wide

Learn more about the importance of using a fan and shroud with our radiators by reading our tech article. Radiator Cooling Performance.

Fan Shroud Installation Instructions (PDF)
