Tru-Air Racing Helmet Forced Air System with Pump Blower

• Cooling ventilation reduces driver fatigue
• Prevents helmet visor fogging for your fresh-air equipped helmet
• Reduces dust inside helmet
• Compatible with a wide range of fresh air vent-equipped helmets
• 2 speed operation with 112 CFM maximum flow

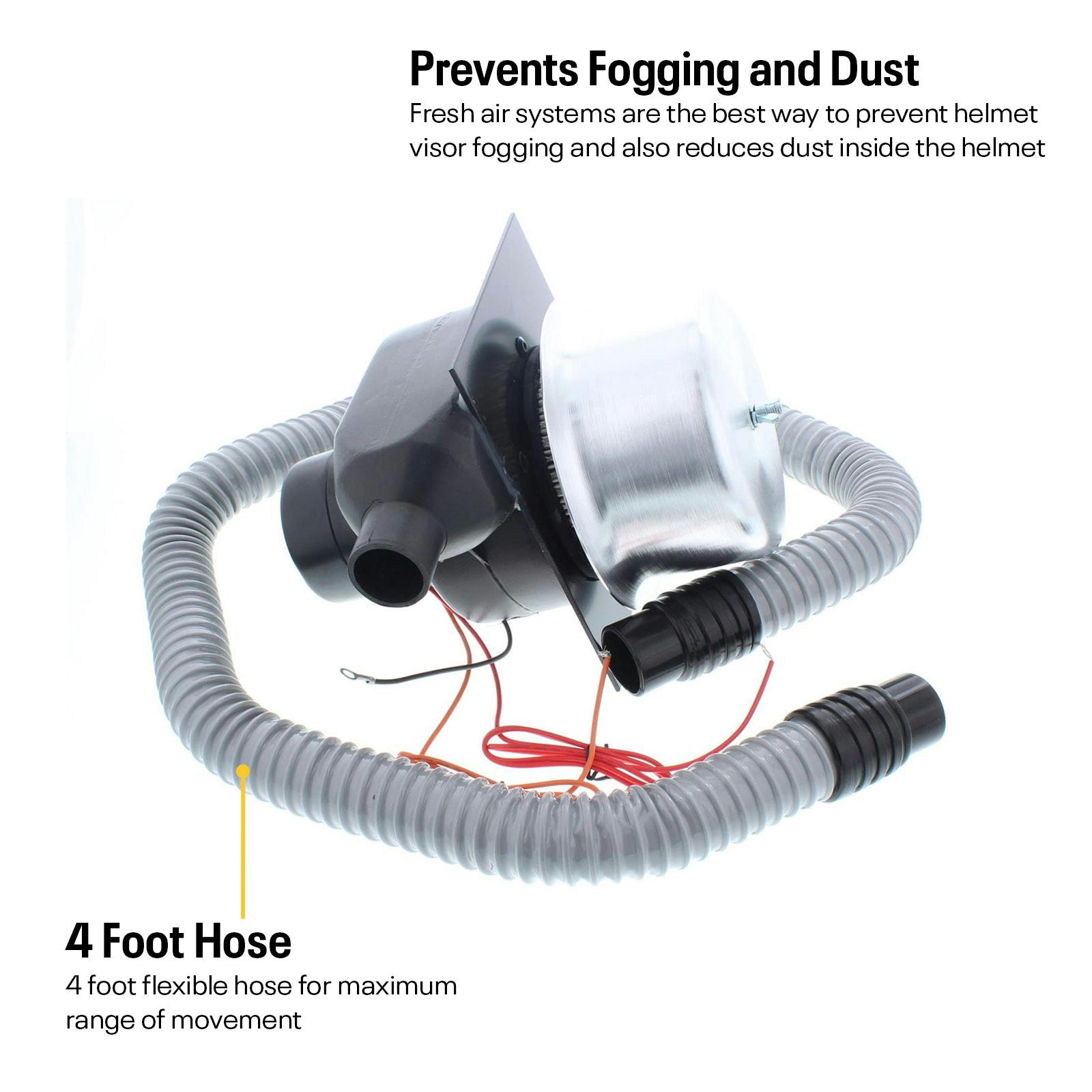

• Includes 4 foot hose
• Use with 12 or 16-volt systems
• Includes blower fan and replaceable filter
• Square mounting plate easily bolts/rivets to interior decking
• Blower unit is 8.00"L x 9.75"H x 7.00"W
• Duct is 1.25" OD and 1.13" ID

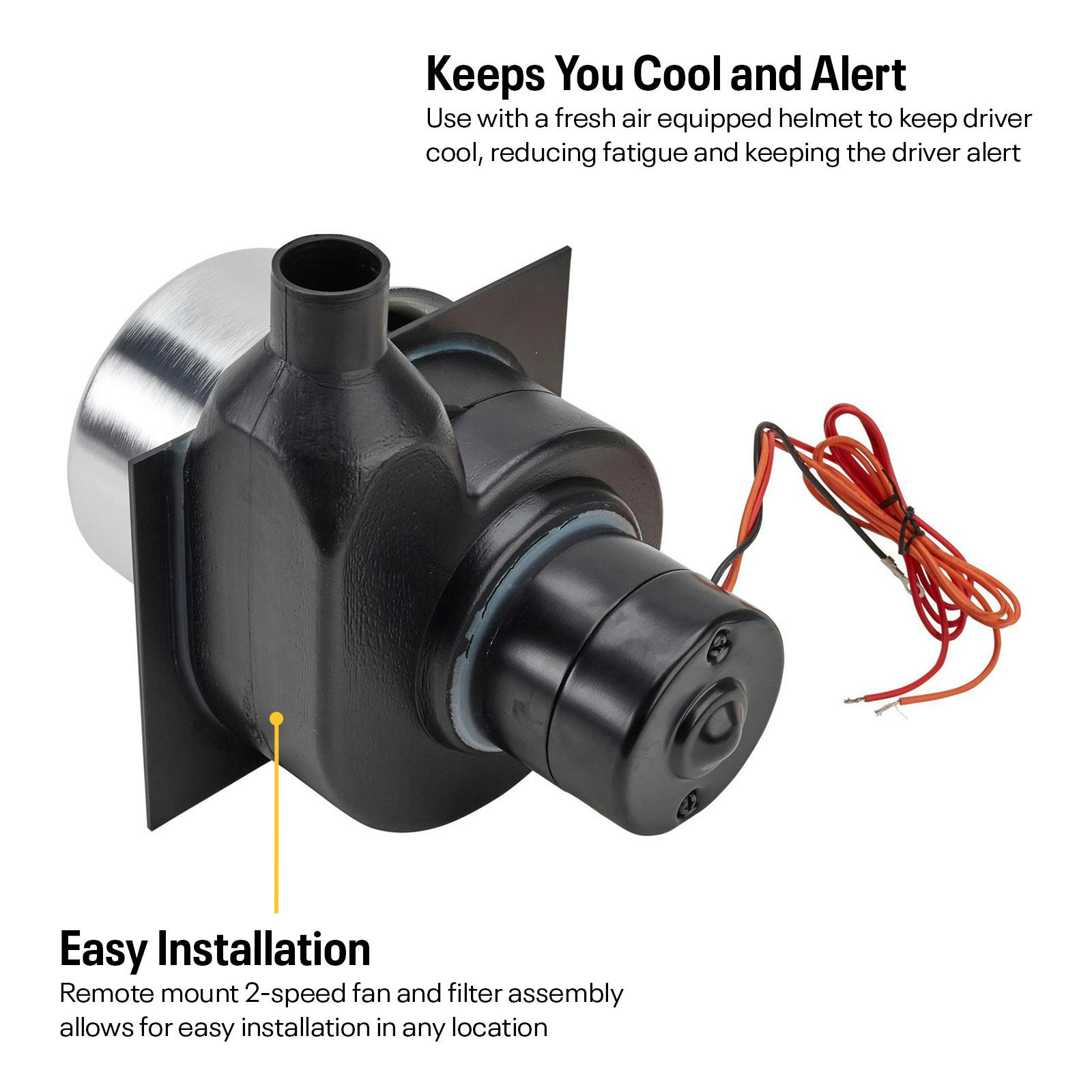

• Can be mounted in any direction
• Requires single pole double throw switch for two speed operation
• Switches and replacement filters sold separately

Fresh Air Systems Keep the Driver Cool and Prevent Helmet Visor Fogging

In the hot, dusty environments of a race car, a fresh air equipped helmet provides cooling ventilation to reduce driver fatigue and maintain peak performance. Fresh air systems are the best way to prevent visor fogging - more than anti-fog treatments, and have the added benefit of keeping dust and dirt out of your helmet.

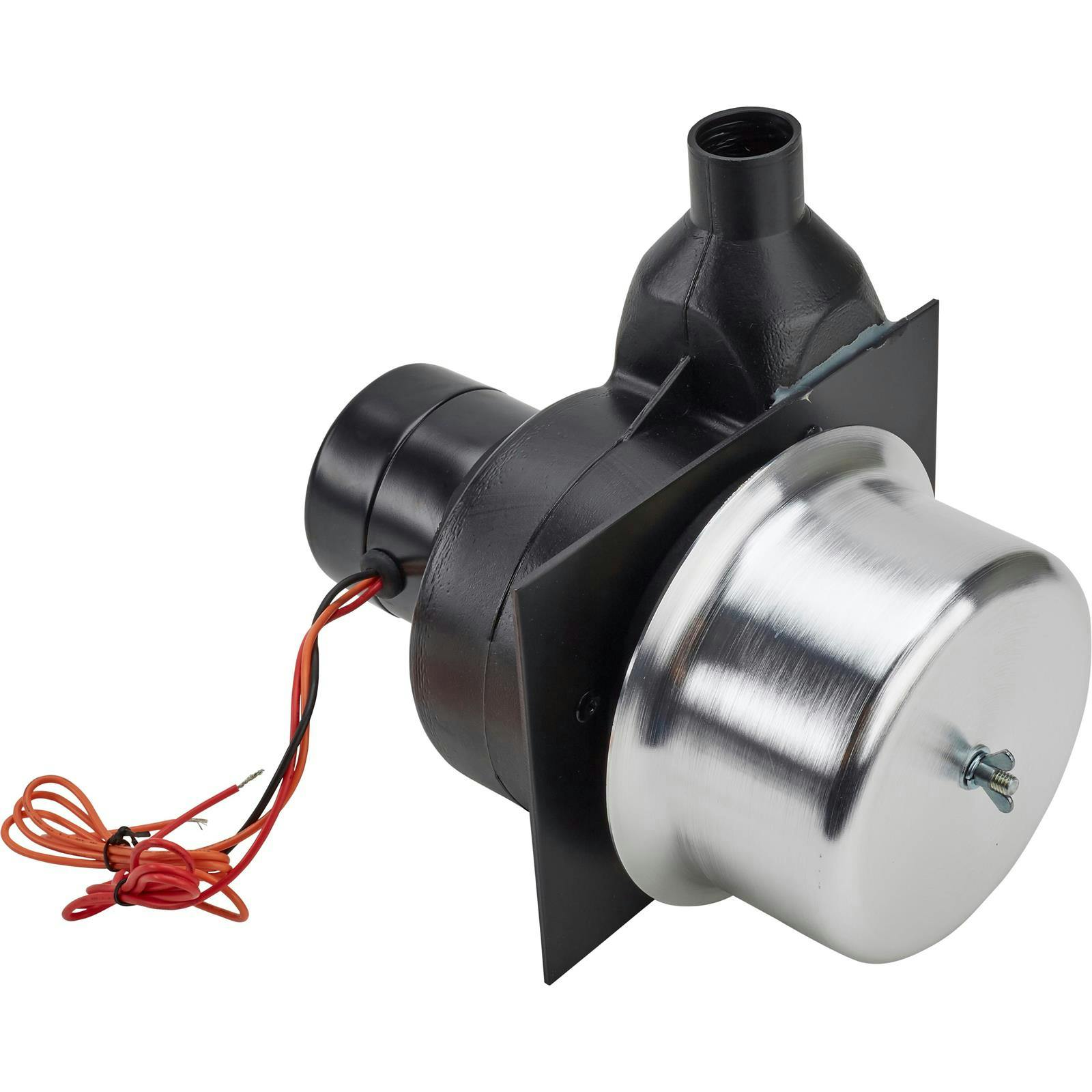

The Speedway Tru Air Pumper Air Pump Blower is the perfect addition to your fresh air equipped helmet and is compatible with most large diameter fresh air ports. Adapters for small Bell style ports or low profile ports are available. Our Tru Air helmet blower pump features 2 speeds with a maximum 112 CFM cooling power on the high speed setting, ready for your 12 or 16 volt system. The blower unit can be mounted in any orientation, we recommend in an area free from heavy mud and moisture. Unit draws 3 Amps on startup, and 0.7A on high speed with 0.5A draw on low speed continuous use. Duct is 1.25" OD and 1.13" ID.

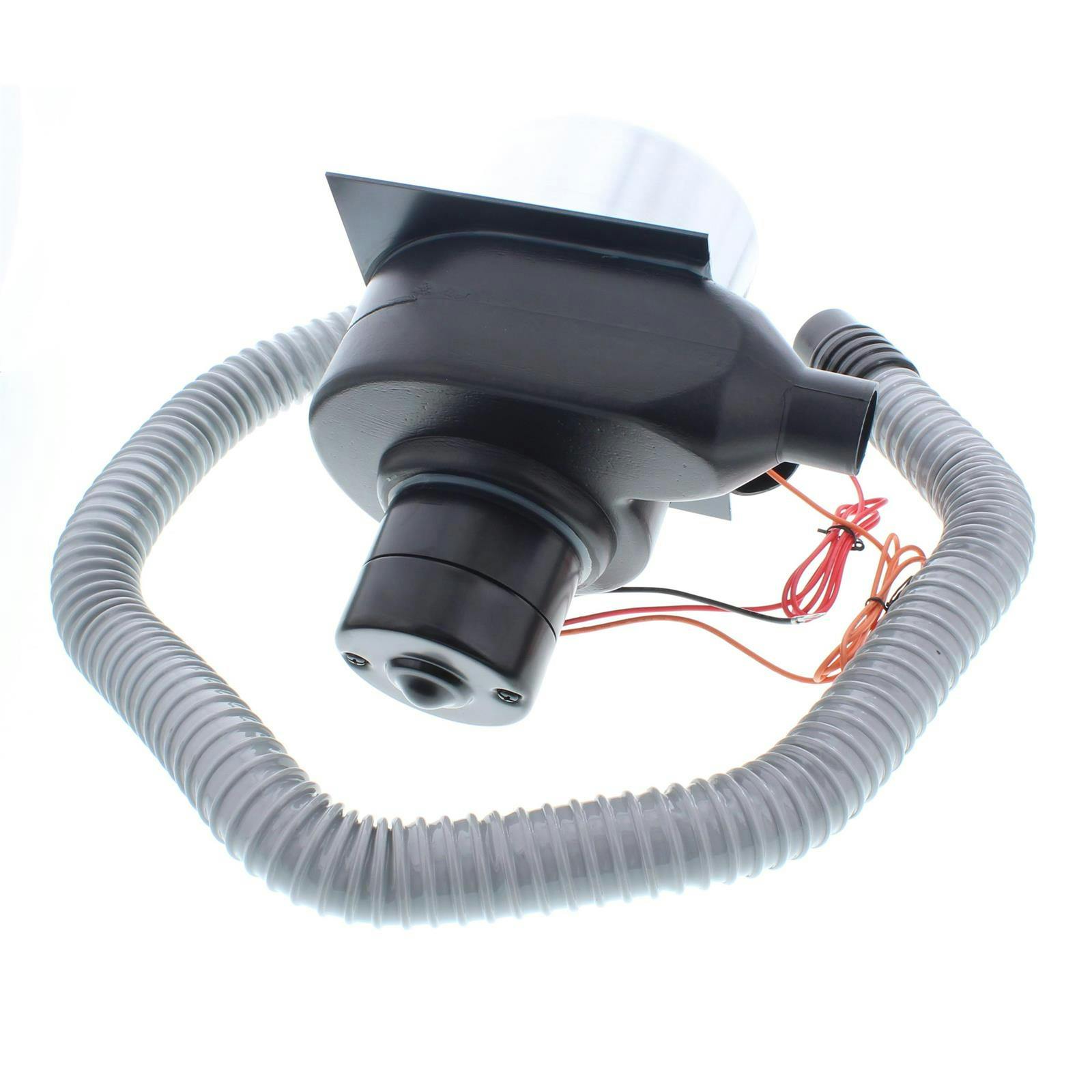

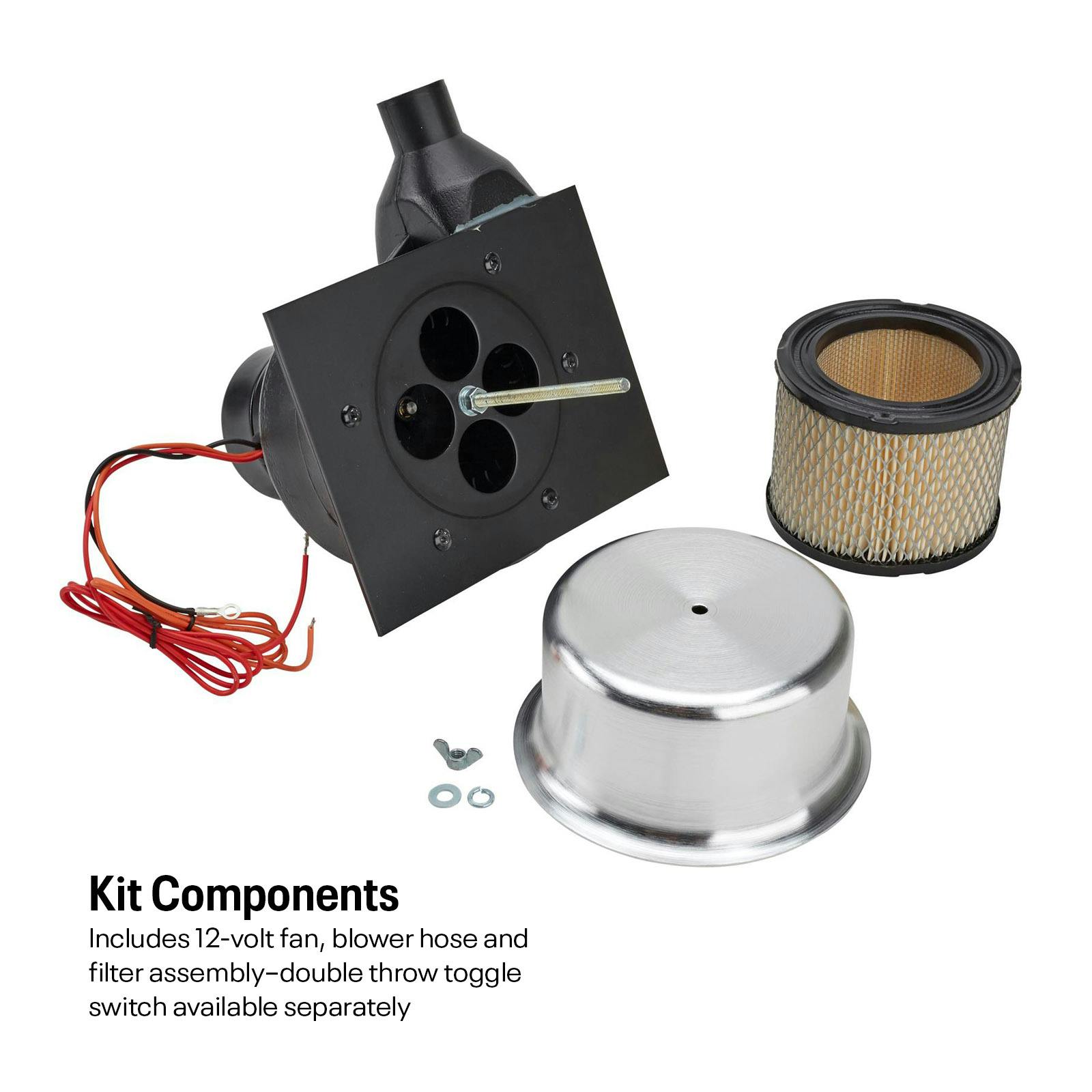

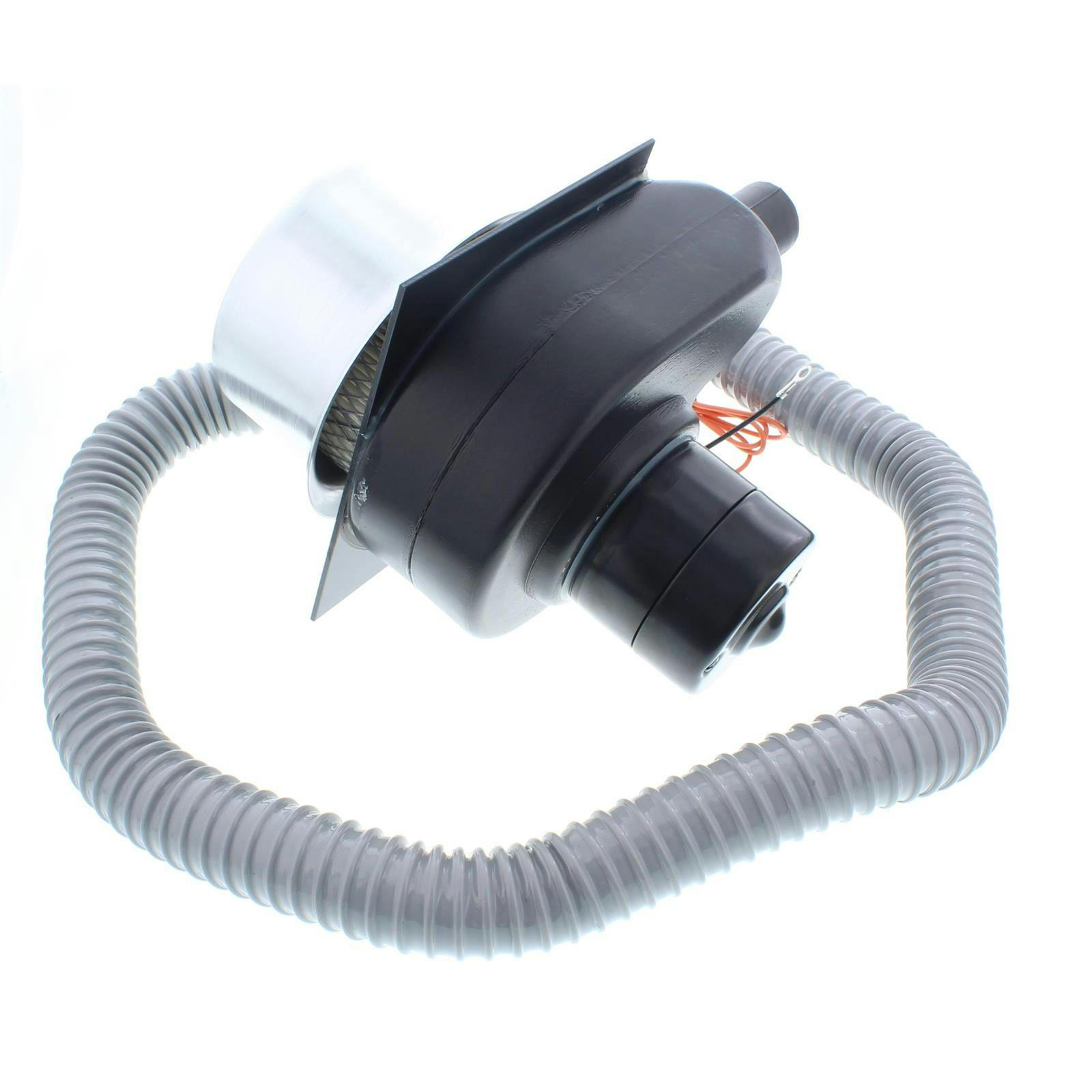

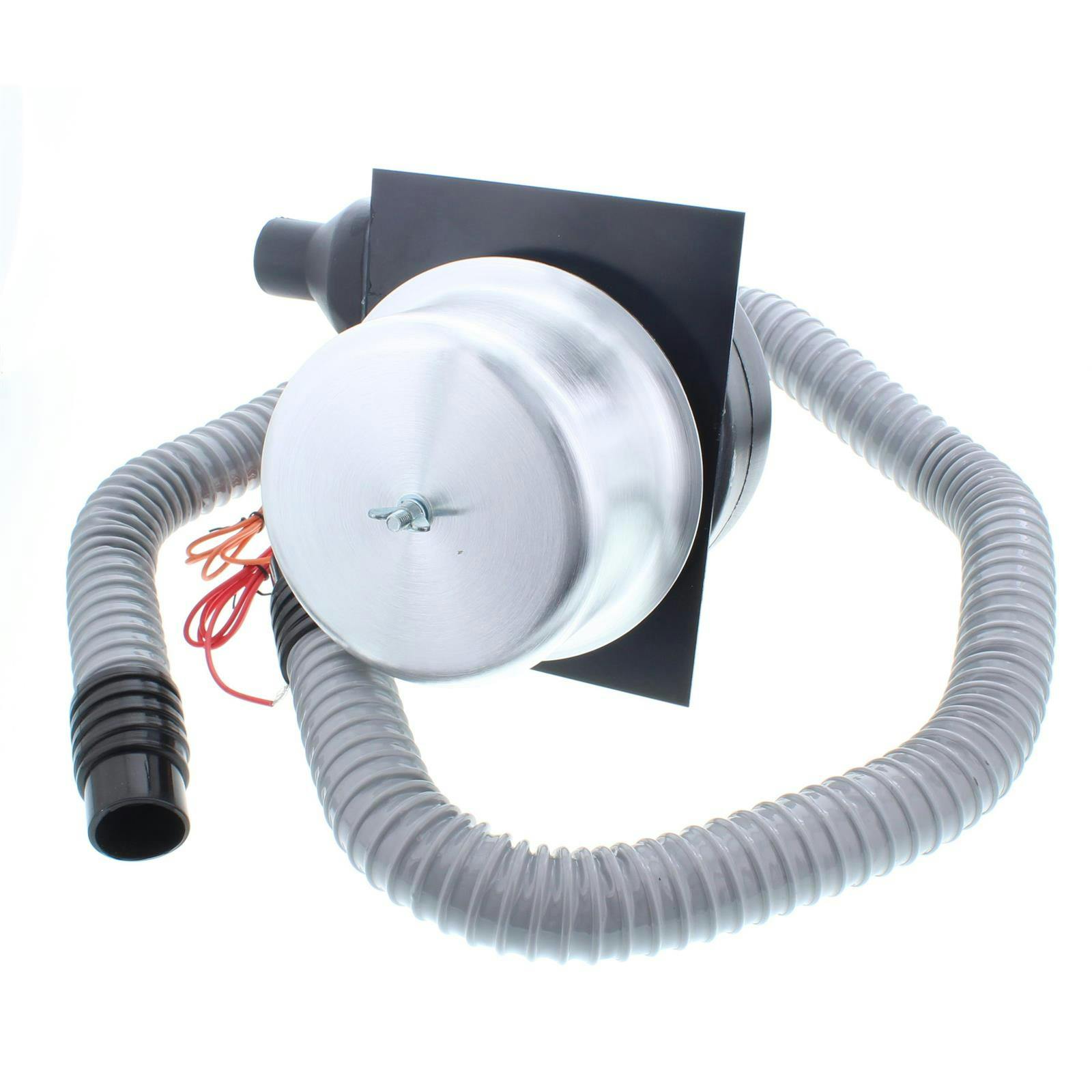

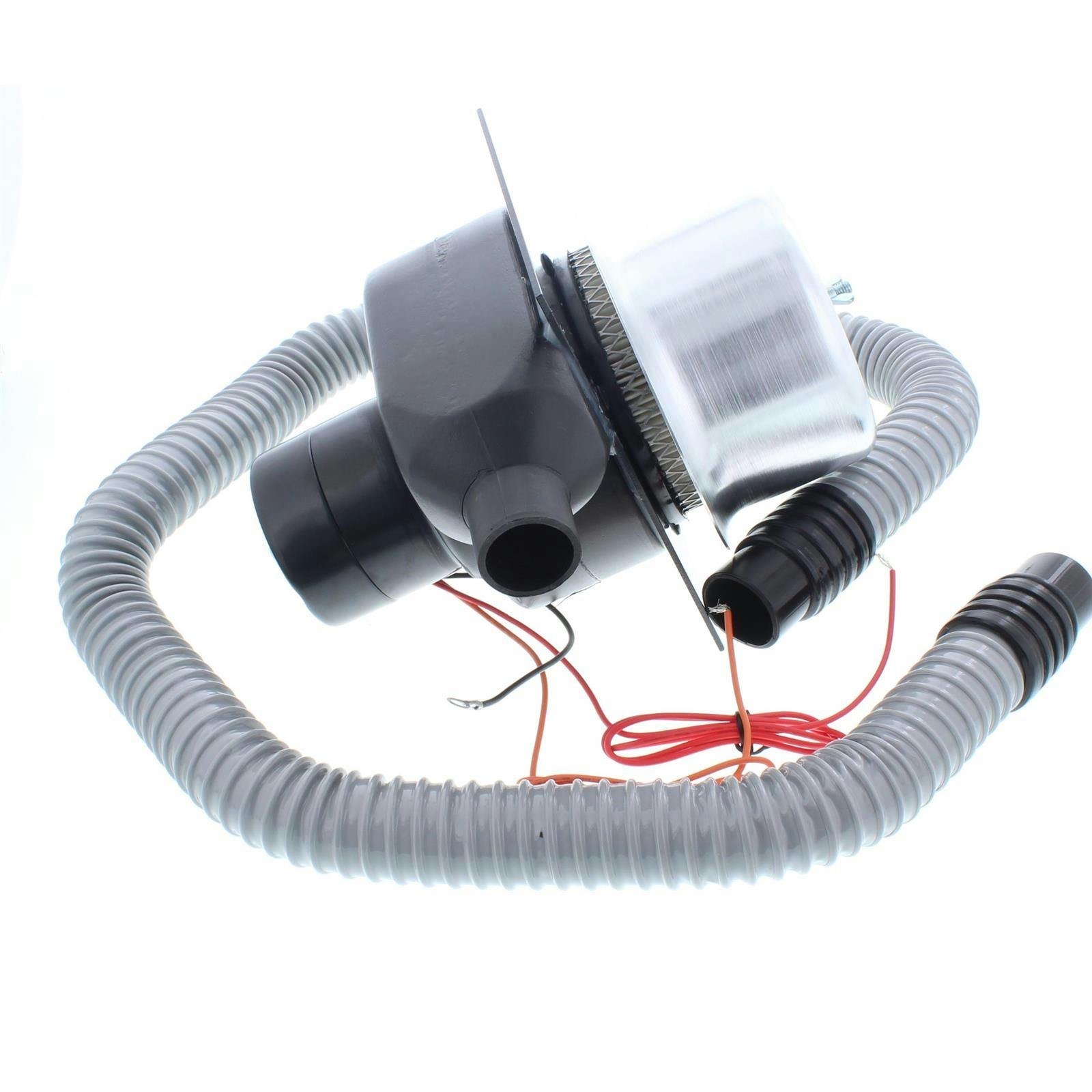

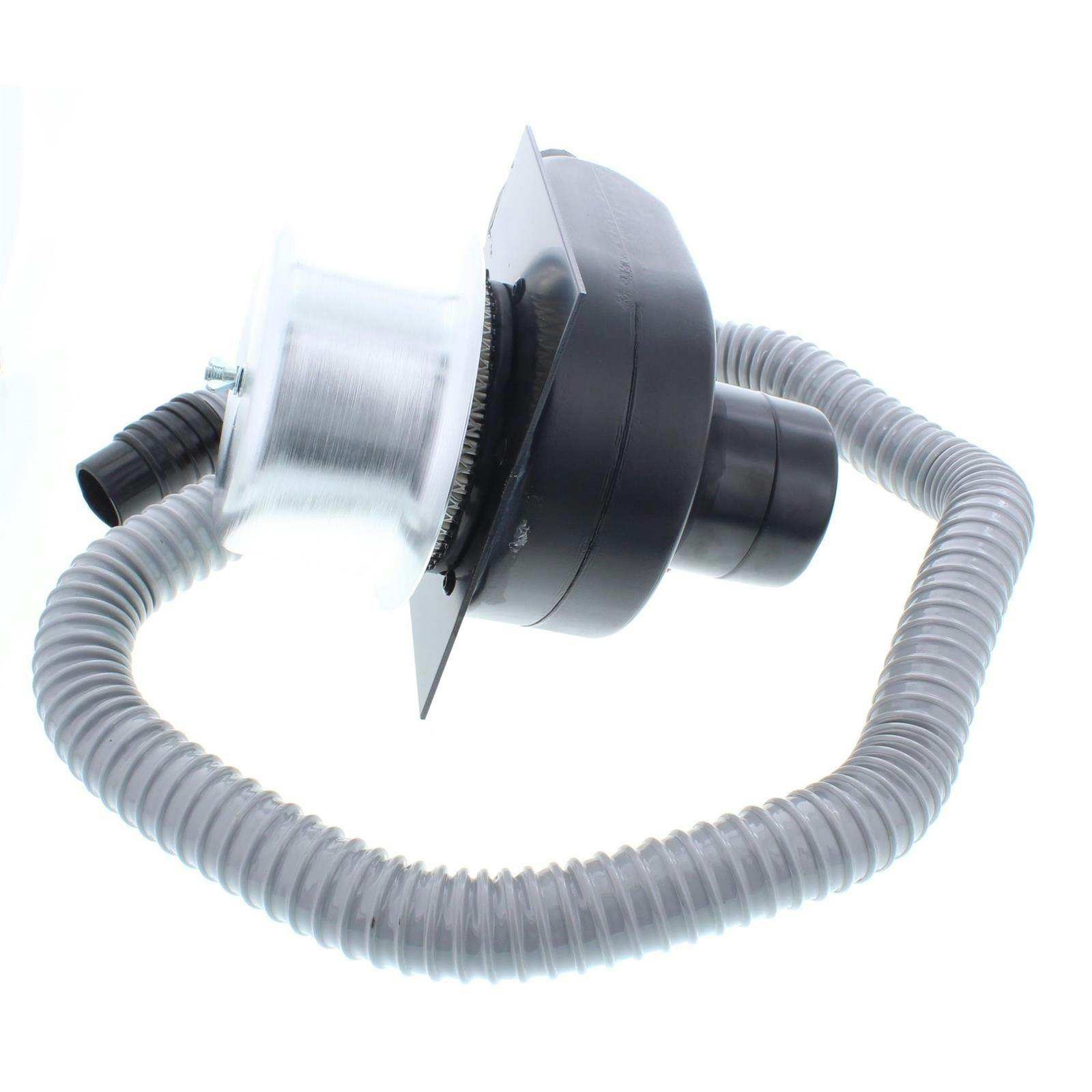

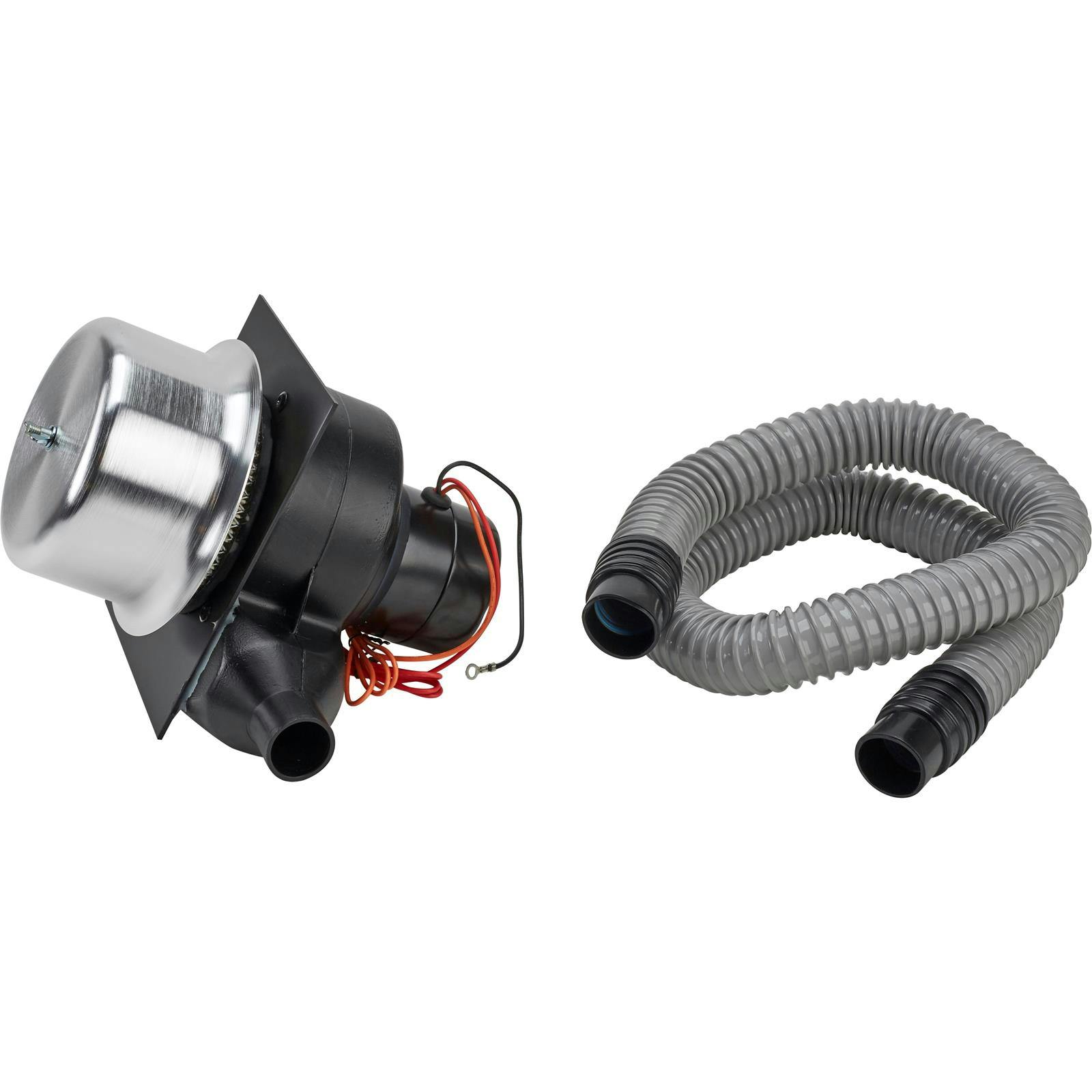

The kit includes the remote mount blower fan and filter assembly with a 4' hose. The square mounting plate bolts or rivets to your interior decking. For 2 speed usage, we recommend our Double Throw Toggle Switch (sold separately) or available as a blower unit & switch kit. Replacement filter assemblies are available.

Ready for a new fresh air helmet? Check out our Speedway Motors SA2020 Helmet, Tru Air Blower Pump and Switch Kit.

For cars without a battery we recommend our rechargable small 12V battery or our lightweight 12V battery options.

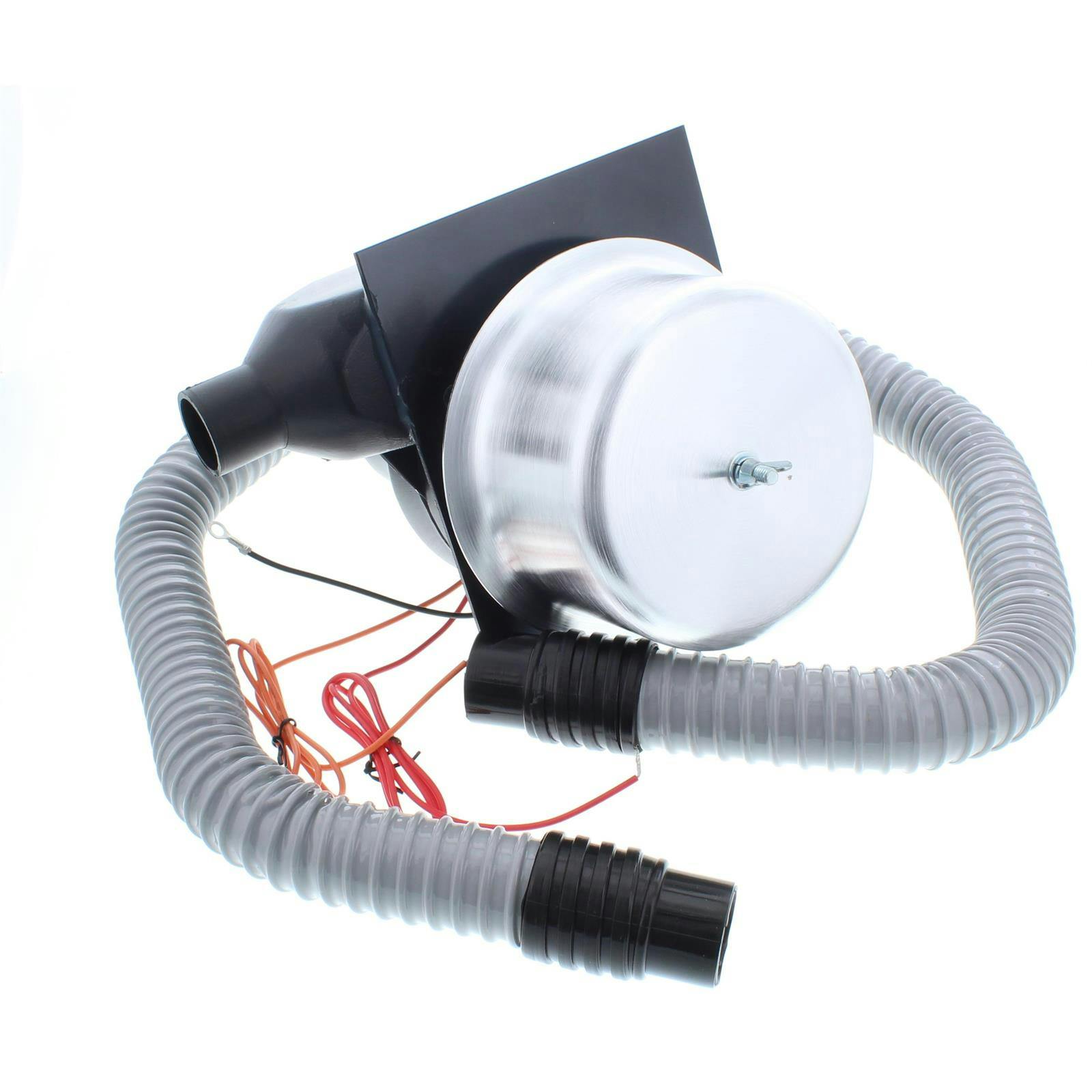

Note: Orange wire is for high speed operation, while the red wire is for low speed operations. Black connects to chassis ground.

910-74802 Instructions (PDF)
