#910155

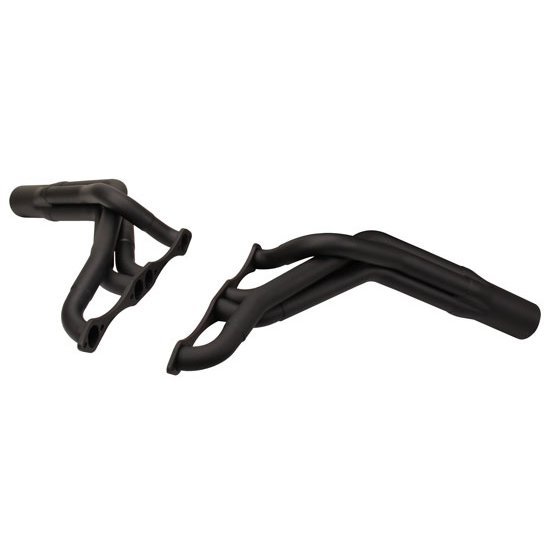

Speedway Stock Clip Small Block Chevy Headers, Raw Finish
- High-performance headers designed for small-block Chevy engines in most race cars that use stock front clips with the engine mounted in the stock location or moved back
- High-velocity stepped-tube design ensures maximum performance and increased horsepower
- Features 1-5/8" primaries and 3-1/2" x 8" collector for better exhaust flow and faster scavenging of exhaust gases
$263.99
/pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Chassis Header Tube Type, Oval Exhaust Port Shape, Raw
- High-performance headers designed for small-block Chevy engines in most race cars that use stock front clips with the engine mounted in the stock location or moved back
- High-velocity stepped-tube design ensures maximum performance and increased horsepower
- Features 1-5/8" primaries and 3-1/2" x 8" collector for better exhaust flow and faster scavenging of exhaust gases
- Made with 5/16" flanges for durability and long-lasting performance, and comes with a black painted finish for added style
- Designed to fit angle or straight plug 23-degree or Vortec heads, providing versatility for different engine setups
Key Specs
| MFG. Part # | 910155 |
| Header Tube Type | Chassis |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 910155 Details
Speedway Motors 910155 Details
Your race car will breathe easier and make more power with a good set of headers. These small-block Chevy headers are designed to fit most race cars that use stock front clips with the engine mounted in the stock location or moved back. High-velocity stepped-tube design ensures maximum performance.
- 1-5/8" primaries
- 3-1/2" x 8" collector
- 5/16" flanges
- Black painted finish
- Fits angle or straight plug 23 degree or Vortec heads
- For use with stock front clips with the engine mounted in the stock location or moved back
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Speedway Motors 910155 Specifications
Speedway Motors 910155 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 910155 |
| Brand | Speedway Motors |
| Header Tube Type | Chassis |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
| Material Type | Steel |
| Color | Natural |
| Weld-Up | No |
| Collector Diameter | 3-1/2 Inch |
| Finish | Raw |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| Collector Reducers Included | No |
| Collector Attachment Type | Slip fit |
| GENERAL | |
| Sold in Quantity | Pair |
| Collector Length | 7.75" |
| Flange Thickness | 0.38" |
| Port Height | 1.63" |
| Port Width | 1.37" |
| Drivers Side Dimension A | 27" |
| Drivers Side Dimension B | 14.5" |
| Drivers Side Dimension C | 28" |
| Passenger Side Dimension A | 25" |
| Passenger Side Dimension B | 14" |
| Passenger Side Dimension C | 28" |
| Gaskets Included | Yes |
Ratings & Reviews
4.9
7 Reviews
Customers praise the product for its impeccable style and ideal fit. They find it perfect for their projects, especially when making advancements such as changing from Lake headers or mounting on a 4x4 frame. The product appears to meet the specific needs of customers due to its adaptability. It stands out in comparison to competitors for its functional and aesthetic qualities, making it a popular choice among users. It's durability and reliability, as reported by customers, further certify its superiority in the market.
Ratings & Reviews
4.9
7 Reviews
Customers praise the product for its impeccable style and ideal fit. They find it perfect for their projects, especially when making advancements such as changing from Lake headers or mounting on a 4x4 frame. The product appears to meet the specific needs of customers due to its adaptability. It stands out in comparison to competitors for its functional and aesthetic qualities, making it a popular choice among users. It's durability and reliability, as reported by customers, further certify its superiority in the market.
4.9
7 reviews
5
6
4
1
3
0
2
0
1
0
Filter by Ratings
Yes
5.0
7 months ago
John
Midway ga
Verified
Perfect product
Would Recommend
Would buy again
4.0
a year ago
PM
NY
Verified
Had to modify them a little for the chassis I have. Quality was very good, nice welds, highly recommended.
Would Recommend
Yes I would buy this again the fit was perfect
5.0
a year ago
Jeff Vanosdol
Astoria Oregon
Verified
Easy install just a bit of trimming on the innner fender
Would Recommend
you'll love them, and your neighbors will too!
5.0
2 years ago
Stroker
Here, There, Everywhere on the road.
Verified
I've driven a street roadster 10000 miles listening to the sweet sounds of a warmed over small block chevy through these headers, they are perfect for letting everyone else listen too!
Would Recommend
Yes
5.0
2 years ago
Joey
New Windsor NY
Verified
Product damaged. Ding and scratched on bottom side of header. Can provide pictures if needed.
Exactly the look I was going for
5.0
5 years ago
Greg
Des Moines, IA
Verified
Love the look and changed from Lake headers on my SBC
Would Recommend
Exactly what I needed
5.0
7 years ago
RCM
Canada
Verified
Took a chance these would work with the latest project and the work perfectly. Put them on a 47 IH body mounted on a 99 s-10 4x4 frame
Would Recommend
Showing 7 of 7 reviews
Questions & Answers
3 Questions • 3 Answers
Questions & Answers
3 Questions • 3 Answers
I wanna put these on my 84 c20. The wheel wells are out and it's mostly gutted. Will these fit over the frame and not hit the steering shaft and brake booster or will I need to modify thous? I'm ok with trimming and modifying to and extent.
by Jesse
• 2 months ago
1 answer
View Answer
Will they clear the power brake booster on the S10?
by Fred
• 10 years ago
1 answer
View Answer
Do you know if these would work on a dirt Camaro Street Stock with Dart Angle Plug Heads? The firewall is in the stock location. Either that, or do you have a suggestion on a set that would? I'm having too many clearance issues with bottom dump headers.
by Tyler
• 11 years ago
1 answer
View Answer
3 of 3 questions shown
Fitment
Fitment
1959 Chevy 3A
2-Piece Rear Main Chevy 283
1959 Chevy 3B
2-Piece Rear Main Chevy 283
1959 Chevy 3C
2-Piece Rear Main Chevy 283
1959 Chevy 3D
2-Piece Rear Main Chevy 283
1959 Chevy 3E
2-Piece Rear Main Chevy 283
1959 Chevy 3F
2-Piece Rear Main Chevy 283
1959 Chevy 3G
2-Piece Rear Main Chevy 283
1957 Chevy Bel Air
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958-1967 Chevy Bel Air
2-Piece Rear Main Chevy 283
1968 Chevy Bel Air
Gen 1 L14 Small Block Chevy
1970-1975 Chevy Bel Air
2-Piece Rear Main Chevy 400
1958-1967 Chevy Biscayne
2-Piece Rear Main Chevy 283
1968 Chevy Biscayne
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Biscayne
2-Piece Rear Main Chevy 400
1969-1973 Chevy Blazer
Gen 1 L14 Small Block Chevy
1958-1961 Chevy Brookwood
2-Piece Rear Main Chevy 283
1969 Chevy Brookwood
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Brookwood
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1960-1967 Chevy C10
2-Piece Rear Main Chevy 283
1968-1973 Chevy C10
Gen 1 L14 Small Block Chevy
1976-1980 Chevy C10
2-Piece Rear Main Chevy 400
1960-1967 Chevy C10 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy C10 Suburban
Gen 1 L14 Small Block Chevy
1960-1967 Chevy C20
2-Piece Rear Main Chevy 283
1968-1973 Chevy C20
Gen 1 L14 Small Block Chevy
1976-1980 Chevy C20
2-Piece Rear Main Chevy 400
1960-1967 Chevy C20 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy C20 Suburban
Gen 1 L14 Small Block Chevy
1976-1980 Chevy C20 Suburban
2-Piece Rear Main Chevy 400
1960-1967 Chevy C30
2-Piece Rear Main Chevy 283
1968-1973 Chevy C30
Gen 1 L14 Small Block Chevy
1976-1979 Chevy C30
2-Piece Rear Main Chevy 400
1967-1968 Chevy Camaro
Gen 1 DZ Small Block Chevy
1969 Chevy Camaro
Gen 1 DZ Small Block Chevy
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Camaro
Gen 1 L14 Small Block Chevy
1980-1981 Chevy Camaro
2-Piece Rear Main Chevy 267
1966-1967 Chevy Caprice
2-Piece Rear Main Chevy 283
1968-1969 Chevy Caprice
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Caprice
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Caprice
2-Piece Rear Main Chevy 400
1980-1982 Chevy Caprice
2-Piece Rear Main Chevy 267
1964-1967 Chevy Chevelle
2-Piece Rear Main Chevy 283
1968-1969 Chevy Chevelle
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Chevelle
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1963-1967 Chevy Chevy II
2-Piece Rear Main Chevy 283
1968 Chevy Chevy II
Gen 1 L14 Small Block Chevy
1957-1961 Chevy Corvette
2-Piece Rear Main Chevy 283
1957 Chevy Del Ray
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Del Ray
2-Piece Rear Main Chevy 283
1959-1960 Chevy El Camino
2-Piece Rear Main Chevy 283
1964-1967 Chevy El Camino
2-Piece Rear Main Chevy 283
1968-1969 Chevy El Camino
Gen 1 L14 Small Block Chevy
1970-1973 Chevy El Camino
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy El Camino
2-Piece Rear Main Chevy 400
1979-1982 Chevy El Camino
2-Piece Rear Main Chevy 267
1969 Chevy Estate
Gen 1 L14 Small Block Chevy
1970 Chevy Estate
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1976 Chevy G10
2-Piece Rear Main Chevy 400
1968-1973 Chevy G10 Van
Gen 1 L14 Small Block Chevy
1975-1980 Chevy G20
2-Piece Rear Main Chevy 400
1967 Chevy G20 Van
2-Piece Rear Main Chevy 283
1968-1973 Chevy G20 Van
Gen 1 L14 Small Block Chevy
1975-1980 Chevy G30
2-Piece Rear Main Chevy 400
1958-1967 Chevy Impala
2-Piece Rear Main Chevy 283
1968-1969 Chevy Impala
Gen 1 L14 Small Block Chevy
1970-1973 Chevy Impala
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Impala
2-Piece Rear Main Chevy 400
1980-1982 Chevy Impala
2-Piece Rear Main Chevy 267
1960-1967 Chevy K10
2-Piece Rear Main Chevy 283
1968-1973 Chevy K10
Gen 1 L14 Small Block Chevy
1975-1980 Chevy K10
2-Piece Rear Main Chevy 400
1960-1967 Chevy K10 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy K10 Suburban
Gen 1 L14 Small Block Chevy
1975-1979 Chevy K10 Suburban
2-Piece Rear Main Chevy 400
1960-1967 Chevy K20
2-Piece Rear Main Chevy 283
1968-1973 Chevy K20
Gen 1 L14 Small Block Chevy
1975-1980 Chevy K20
2-Piece Rear Main Chevy 400
1967 Chevy K20 Panel
2-Piece Rear Main Chevy 283
1960-1967 Chevy K20 Suburban
2-Piece Rear Main Chevy 283
1968-1973 Chevy K20 Suburban
Gen 1 L14 Small Block Chevy
1975-1980 Chevy K20 Suburban
2-Piece Rear Main Chevy 400
1968-1973 Chevy K30
Gen 1 L14 Small Block Chevy
1977-1980 Chevy K30
2-Piece Rear Main Chevy 400
1975-1979 Chevy K5 Blazer
2-Piece Rear Main Chevy 400
1959-1961 Chevy Kingswood
2-Piece Rear Main Chevy 283
1969 Chevy Kingswood
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Kingswood
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1973 Chevy Laguna
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Laguna
2-Piece Rear Main Chevy 400
1964-1967 Chevy Malibu
2-Piece Rear Main Chevy 283
1973 Chevy Malibu
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1974-1976 Chevy Malibu
2-Piece Rear Main Chevy 400
1979-1982 Chevy Malibu
2-Piece Rear Main Chevy 267
1970-1976 Chevy Monte Carlo
2-Piece Rear Main Chevy 400
1979-1982 Chevy Monte Carlo
2-Piece Rear Main Chevy 267
1975-1976 Chevy Monza
2-Piece Rear Main Chevy 262
1957 Chevy Nomad
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958-1961 Chevy Nomad
2-Piece Rear Main Chevy 283
1969-1973 Chevy Nova
Gen 1 L14 Small Block Chevy
1975 Chevy Nova
2-Piece Rear Main Chevy 262
1957 Chevy One-Fifty Series
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1976 Chevy P30
2-Piece Rear Main Chevy 400
1961-1962 Chevy P30 Series
2-Piece Rear Main Chevy 283
1968-1969 Chevy P30 Van
Gen 1 L14 Small Block Chevy
1973 Chevy P30 Van
Gen 1 L14 Small Block Chevy
1959-1961 Chevy Parkwood
2-Piece Rear Main Chevy 283
1957 Chevy Sedan Delivery
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Sedan Delivery
2-Piece Rear Main Chevy 283
1947-1959 Chevy Suburban
2-Piece Rear Main Chevy 265
1960-1967 Chevy Suburban
2-Piece Rear Main Chevy 283
1969 Chevy Townsman
Gen 1 L14 Small Block Chevy
1970-1972 Chevy Townsman
2-Piece Rear Main Chevy 400
Gen 1 L14 Small Block Chevy
1955 Chevy Truck
2-Piece Rear Main Chevy 265
1957 Chevy Truck
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Truck
2-Piece Rear Main Chevy 283
1960 Chevy Truck
2-Piece Rear Main Chevy 283
1955 Chevy Two-Ten Series
2-Piece Rear Main Chevy 265
1957 Chevy Two-Ten Series
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1958 Chevy Yeoman
2-Piece Rear Main Chevy 283
1966 GMC 1000
2-Piece Rear Main Chevy 283
1960 GMC 1000 Series
2-Piece Rear Main Chevy 283
1962-1965 GMC 1000 Series
2-Piece Rear Main Chevy 283
1960-1965 GMC 1500 Series
2-Piece Rear Main Chevy 283
1966 GMC 2500
2-Piece Rear Main Chevy 283
1960-1965 GMC 2500 Series
2-Piece Rear Main Chevy 283
1960-1966 GMC 3000
2-Piece Rear Main Chevy 283
1960-1966 GMC 3500
2-Piece Rear Main Chevy 283
1967 GMC C25/C2500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC C25/C2500 Pickup
Gen 1 L14 Small Block Chevy
1967 GMC C25/C2500 Suburban
2-Piece Rear Main Chevy 283
1968-1972 GMC C25/C2500 Suburban
Gen 1 L14 Small Block Chevy
1967 GMC C35/C3500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC C35/C3500 Pickup
Gen 1 L14 Small Block Chevy
1973-1974 GMC C35/C3500 Pickup
2-Piece Rear Main Chevy 400
1975-1978 GMC K15
2-Piece Rear Main Chevy 400
1975-1978 GMC K15 Suburban
2-Piece Rear Main Chevy 400
1967-1974 GMC K15/K1500 Pickup
2-Piece Rear Main Chevy 400
1967-1974 GMC K15/K1500 Suburban
2-Piece Rear Main Chevy 400
1979-1980 GMC K1500 Suburban
2-Piece Rear Main Chevy 400
1975-1978 GMC K25
2-Piece Rear Main Chevy 400
1975-1978 GMC K25 Suburban
2-Piece Rear Main Chevy 400
1967 GMC K25/K2500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC K25/K2500 Pickup
Gen 1 L14 Small Block Chevy
1973-1974 GMC K25/K2500 Pickup
2-Piece Rear Main Chevy 400
1967 GMC K25/K2500 Suburban
2-Piece Rear Main Chevy 283
1968-1972 GMC K25/K2500 Suburban
Gen 1 L14 Small Block Chevy
1973-1974 GMC K25/K2500 Suburban
2-Piece Rear Main Chevy 400
1979-1986 GMC K2500 Suburban
2-Piece Rear Main Chevy 400
1967 GMC K35/K3500 Pickup
2-Piece Rear Main Chevy 283
1968-1972 GMC K35/K3500 Pickup
Gen 1 L14 Small Block Chevy
1973-1974 GMC K35/K3500 Pickup
2-Piece Rear Main Chevy 400
1966 GMC P1000
2-Piece Rear Main Chevy 283
1973-1977 GMC Sprint
2-Piece Rear Main Chevy 400
1955-1959 GMC Suburban
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1960-1966 GMC Suburban
2-Piece Rear Main Chevy 283
1967 GMC Suburban
Gen 1 L14 Small Block Chevy
1955 GMC Truck
2-Piece Rear Main Chevy 265
1956-1960 GMC Truck
2-Piece Rear Main Chevy 265
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Commander
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Cruiser
2-Piece Rear Main Chevy 283
1965-1966 Studebaker Daytona
2-Piece Rear Main Chevy 283
1966 Studebaker Wagonaire
2-Piece Rear Main Chevy 283
