Add to Cart
$269.99

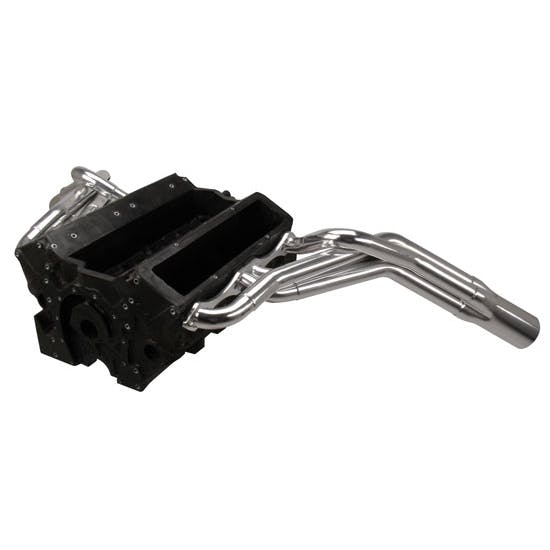

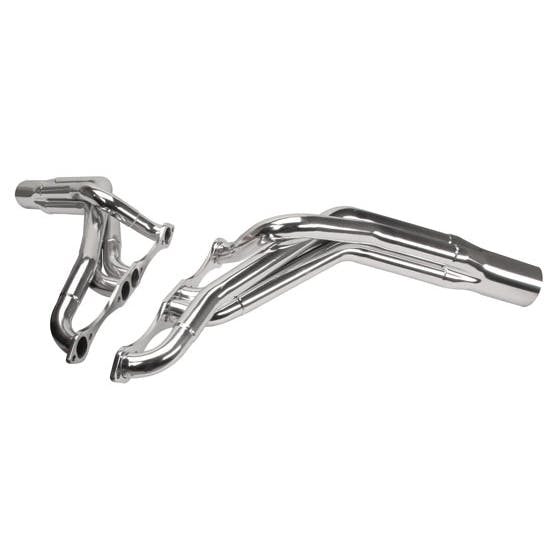

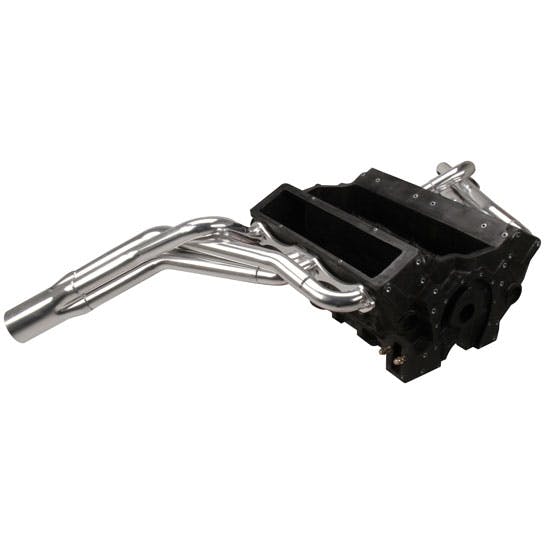

Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Speedway Stock Clip Small Block Chevy Headers, AHC Coated

Speedway Stock Clip Small Block Chevy Headers, AHC Coated

Chevy Small Block V8, Chassis Header Tube Type, Ceramic Coated, Standard Flange Style, Steel

3 Reviews | 9 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
X
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Speedway Stock Clip Small Block Chevy Headers, AHC Coated
Zoomed In Image
Part # 910155H
$269.99
pair
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • 1-5/8" to 1 3/4" stepped primaries
  • 3-1/2" x 8" collector
  • 5/16" flanges
  • Armor Hot Coat finish
  • Fits angle or straight plug 23 degree or Vortec heads

Details

Header Tube Type:
Chassis
Finish:
Ceramic Coated
Flange Style:
Standard
Primary Tube Diameter:
1-5/8"
Material Type:
Steel
Color:
Silver
Weld-Up:
No
Exhaust Port Shape:
Oval
MFG. Part #:
910155H
Collector Diameter:
3-1/2 Inch
Collector Length:
8"
Flange Thickness:
.38"
Port Height:
1.63"
Port Width:
1.37"
Drivers Side Dimension A:
27.00"
Drivers Side Dimension B:
14.50"
Drivers Side Dimension C:
28.00"
Passenger Side Dimension A:
25.00"
Passenger Side Dimension B:
14.00"
Passenger Side Dimension C:
28.00"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

Your race car will breathe easier and make more power with a good set of headers. These small-block Chevy headers are designed to fit most race cars that use stock front clips with the engine mounted in the stock location or moved back. High-velocity stepped-tube design ensures maximum performance.
  • 1-5/8" to 1 3/4" stepped primaries
  • 3-1/2" x 8" collector
  • 5/16" flanges
  • Armor Hot Coat finish
  • Fits angle or straight plug 23 degree or Vortec heads
  • For use with stock front clips with the engine mounted in the stock location or moved back
Header Sizing Chart (GIF)

Warranties

AHC Warning: AHC coatings will burn and be damaged at exhaust temperatures over 1300 degrees. A lean fuel mixture can generate exhaust temperatures exceeding 1700-1900 degrees. If the coating is damaged due to a lean condition, the coating will not be warranted, but can be recoated for a fee.

Not legal for sale or use in California on pollution controlled vehicles.
