Part # 91046156

Speedway Ford 9 Inch Rearend Axle Housing Kit, 56 In. Early Ford

by

|

$1,032.99

kit

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Rear Position, Semi-Floating Axle Type

    Comes as a Kit

    Key Specs

    MFG. Part #91046156
    BrandSpeedway Motors
    PositionRear
    Axle TypeSemi-Floating

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    Preserving traditional hot rod styling and designs of the past is getting more difficult by the day. In the past, acquiring a set of finned Buick brake drums for the rear of your traditional Ford hot rod required running a weak, closed driveshaft-type rear axle that would quickly fail when paired with a SBC - not any longer!

    If you're looking for a budget-friendly and rock-solid rearend to complete your upgraded driveline with an added touch of 60s hot rod style, look no further. For the first time ever, you can buy a brand new 9" housing that comes with an axle flange designed to fit 30s-40s Ford backing plates, and a custom axle offset specifically designed for Buick Finned Brake Drums or early Ford iron drums. These fabricated steel Ford 9" rearend housing kits feature all-new components for maximum durability. This 9 inch Ford axle housing is pumpkin-centered, which will offset the pinion yoke about 1". This is done to make fabricating a triangulated 4-link system much easier. Simply weld on your preferred brackets, slip in the included 31-spline axles and add the 3rd member of your choice (sold separately), and you have yourself a bulletproof vintage axle!

    Total wheel-to-wheel mounting surface width is 56" (from hub-to-hub). The pumpkin is centered in the housing, which puts the pinion 1" offset from center, requiring different length axle shafts. This 56" housing kit includes one 28-5/8" long axle and one 26-3/8" long axle. These axle housing kits are specific to the brake configuration of Ford Bendix backing plates combined with our Buick brake drums or Ford iron drums, meaning it's never been easier to run finned Buick drums on all four corners of your ride! Flanges are drilled for 5 x 5 1/2" bolt pattern

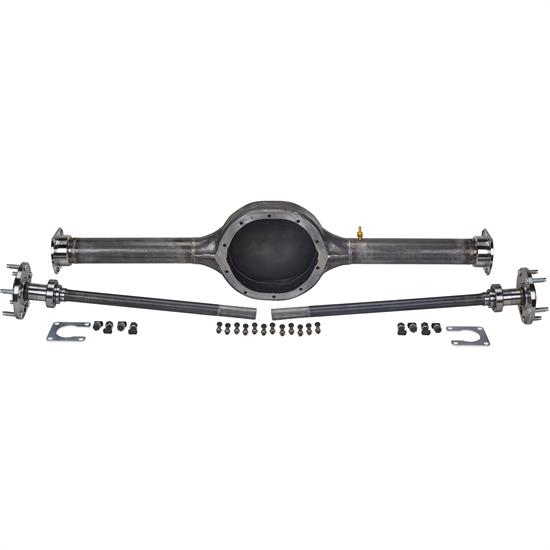

    Kit includes the fabricated housing, a pair of axle shafts with bearings and seals, heavy-duty retainer plates, and 1/2"-20 Ford/Mopar wheel studs. Also included are (8) T-bolts for the axle bearing retainer plates and (10) studs for the third member.

    • New stamped steel round back housing centerpiece
    • New billet steel housing ends with oil seal surface
    • 3" O.D. DOM 1/4" wall axle tubes
    • 31-spline axles w/ bearings, studs and retainers
    • 1/2"-20 wheel studs, 2" long
    • 5 x 5-1/2" wheel bolt pattern
    • 3-3/8" center-to-center axle flange bolt pattern fits Ford Bendix style backing plates
    • Custom axle shaft to housing offset designed specifically for Buick finned brake drums or Early Ford iron drums

    Few things distinguish a 1960s-era hot rod better than Buick finned brake drums. The fins poking out from inside the wheels and spinning along with them was a killer look, but more importantly, it showed you had some serious ponies that required some serious stopping power. When Buick debuted their finned drums in 1957, progress in the automotive industry had been moving at a lightning pace. A mere ten years earlier, a hot ride had 130-150 horsepower - when Buick debuted their finned drums, serious rodders and racers were pushing 350 horsepower. To go along with this nearly 135% increase in power, cars were getting heavier and utilizing automatic transmissions. All of these factors combined meant that your brakes were needing to stop more weight, with more than twice as much power, and without the help of engine braking from a manual transmission. This combination meant that the usual braking systems were incredibly strained, even one high-speed stop or long downhill road could double your stopping distance from heat-induced brake fade, or worse, complete overheating failure in extreme situations. Buick's solution of adding fins around their drums to disperse heat, while constructing them from a combination of aluminum and steel for maximum weight savings took the performance industry by storm.

    If there are two things that aftermarket automotive enthusiasts understand, it's weight savings and the importance of cooling efficiency. Rodders quickly figured out how to fit these state-of-the-art finned drums on the front of their hot rods with a bit of machining and drilling. In rare instances, you can find someone who had fitted the rear of their car with these stylish drums, but that process was far more labor-intensive than the fronts - discouraging those who weren't inclined to engineer a setup from scratch. If you've been daydreaming of Buick Finned Drums on all four corners of your ride, but haven't felt up to the task of the fabrication required to make them work - this kit is exactly what you need.

    Specifications

    KEY SPECS
    MFG. Part #91046156
    BrandSpeedway Motors
    PositionRear
    Axle TypeSemi-Floating
    GENERAL
    Overall Width56"
    Differential IncludedNo
    Axle Splines31
    Tube O.D.3"
    Bolt Pattern5 on 5.5"
    Housing MaterialSteel
    Wheel Studs IncludedYes
    Hardware IncludedYes
    Sold in QuantityKit
    Brakes IncludedNo
    Bearings IncludedYes
    Seals IncludedYes
    Rotors IncludedNo
    Thread Pitch1/2"-20
