$189.99
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish

Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish

Universal Fit, Fenderwell Header Tube Type, Raw, Standard Flange Style, Steel, Natural

39 Reviews | 24 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select a vehicle to verify fitment.
Select Vehicle
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
X
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
Zoomed In Image
Part # 9300150
$189.99
pair
Call to Order
Add to Buildlist
Click to Login
Compare
Details
Reviews
Q&A
Videos & Articles
  • For 1935 to 1948 fat fendered street rods and pickups with a small block Chevy engine
  • Perfect for Gasser-style rods and drag cars as well
  • 1-5/8" long primary tubes curve over the frame and through the fender wells
  • Lightly coated with anti-corrosion paint which is suggested to be stripped before painting with high temp paint
  • Includes 2-1/4" collector reducers, collector gaskets, header gaskets, header bolts and collector bolts

Details

Header Tube Type:
Fenderwell
Finish:
Raw
Flange Style:
Standard
Primary Tube Diameter:
1-5/8"
Material Type:
Steel
Color:
Natural
Weld-Up:
No
Exhaust Port Shape:
Round
MFG. Part #:
9300150
Overall Height:
19"
Collector Diameter:
2-1/2 Inch
Collector Length:
4.5"
Flange Thickness:
.31"
Header Dimension A:
19.00"
Header Dimension B:
11.25"
Header Dimension C:
27.00"
Drivers Side Dimension A:
19.20"
Drivers Side Dimension B:
11.88"
Drivers Side Dimension C:
27.00"
Passenger Side Dimension A:
18.88"
Passenger Side Dimension B:
12.50"
Passenger Side Dimension C:
26.38"
Hardware Included:
Yes
Gasket(s) Included:
Yes
Sold in Quantity:
Pair

Info

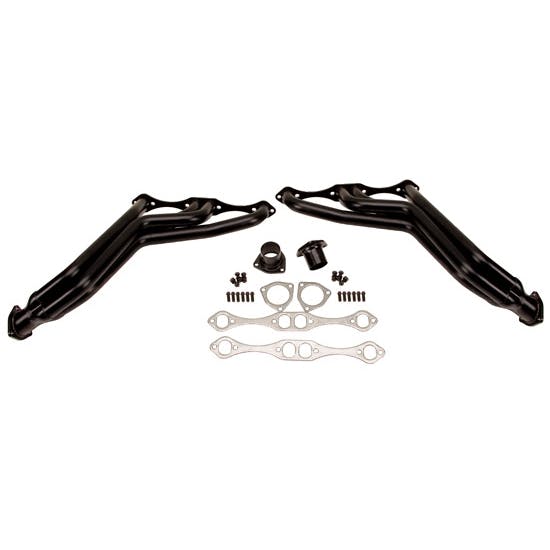

These small-block Chevy 265-400 V8 headers are designed for optimum performance in a variety of 1935-1948 fat-fendered street rod and pickup applications. Perfect for Gasser-style rods and drag cars, the fender well headers have long primary tubes that curve over the frame and through the fender wells. You must cut the inner fender panels to make them fit.

Fender Well Header Specs Chart (GIF)

Includes collectors, collector gaskets, header gaskets, header bolts, and collector bolts.

Item Details

Header Dimension Explanation Chart

Application

  1. Can be used with most oil filter system or transmission and starter combination.
  2. Fits most angle plug heads.
  3. Check motor mount position before ordering.
  4. Not legal for sale or use in California on pollution controlled vehicles.

Notes

These headers are treated with a light coating of anti-corrosion paint to avoid rust during shipment and on the shelf. This coating must be removed entirely before painting with a high-temp paint for final installation. Coating can be removed with lacquer thinner.

Specs


Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
