#9300150
Small Block Chevy 1935-48 Fat Fenderwell Headers, Raw Finish
- For 1935 to 1948 fat fendered street rods and pickups with a small block Chevy engine
- Perfect for Gasser-style rods and drag cars as well
- 1-5/8" long primary tubes curve over the frame and through the fender wells
$342.99
pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Product Summary
Universal Fit, Fenderwell Header Tube Type, Steel, Raw
- For 1935 to 1948 fat fendered street rods and pickups with a small block Chevy engine
- Perfect for Gasser-style rods and drag cars as well
- 1-5/8" long primary tubes curve over the frame and through the fender wells
- Lightly coated with anti-corrosion paint which is suggested to be stripped before painting with high temp paint
- Includes 2-1/4" collector reducers, collector gaskets, header gaskets, header bolts and collector bolts
Key Specs
| Header Tube Type | Fenderwell |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
| Material Type | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9300150 Details
Speedway Motors 9300150 Details
These small-block Chevy 265-400 V8 headers are designed for optimum performance in a variety of 1935-1948 fat-fendered street rod and pickup applications. Perfect for Gasser-style rods and drag cars, the fender well headers have long primary tubes that curve over the frame and through the fender wells. You must cut the inner fender panels to make them fit.
Includes collectors, collector gaskets, header gaskets, header bolts, and collector bolts.
Application
- Can be used with most oil filter system or transmission and starter combination.
- Fits most angle plug heads.
- Check motor mount position before ordering.
- Not legal for sale or use in California on pollution controlled vehicles.
Charts
Specs
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Speedway Motors 9300150 Specifications
Speedway Motors 9300150 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9300150 |
| Brand | Speedway Motors |
| Header Tube Type | Fenderwell |
| Exhaust Port Shape | Oval |
| Flange Style | Standard |
| Primary Tube Diameter | 1-5/8" |
| Material Type | Steel |
| Color | Natural |
| Weld-Up | No |
| Collector Diameter | 2-1/2 Inch |
| Finish | Raw |
| Collector Attachment Type | 3-bolt flange |
| Hardware Included | Yes |
| Gasket(s) Included | Yes |
| Collector Reducers Included | Yes |
| Collector Reducer Exit Diameter | 2.25" |
| GENERAL | |

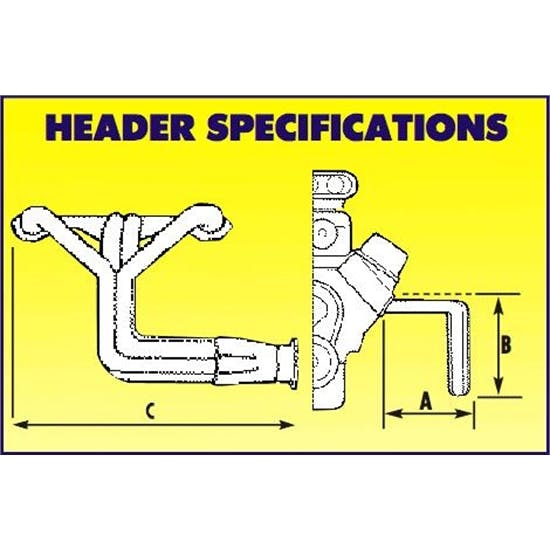

| Header Dimension A | 19.00" |
| Header Dimension B | 11.25" |
| Header Dimension C | 27.00" |
| Collector Length | 4.5" |
| Flange Thickness | .31" |
| Overall Height | 19" |
| Drivers Side Dimension A | 19.2" |
| Drivers Side Dimension B | 11.88" |
| Drivers Side Dimension C | 27" |
| Passenger Side Dimension A | 18.88" |
| Passenger Side Dimension B | 12.5" |
| Passenger Side Dimension C | 26.38" |
| Sold in Quantity | Pair |
